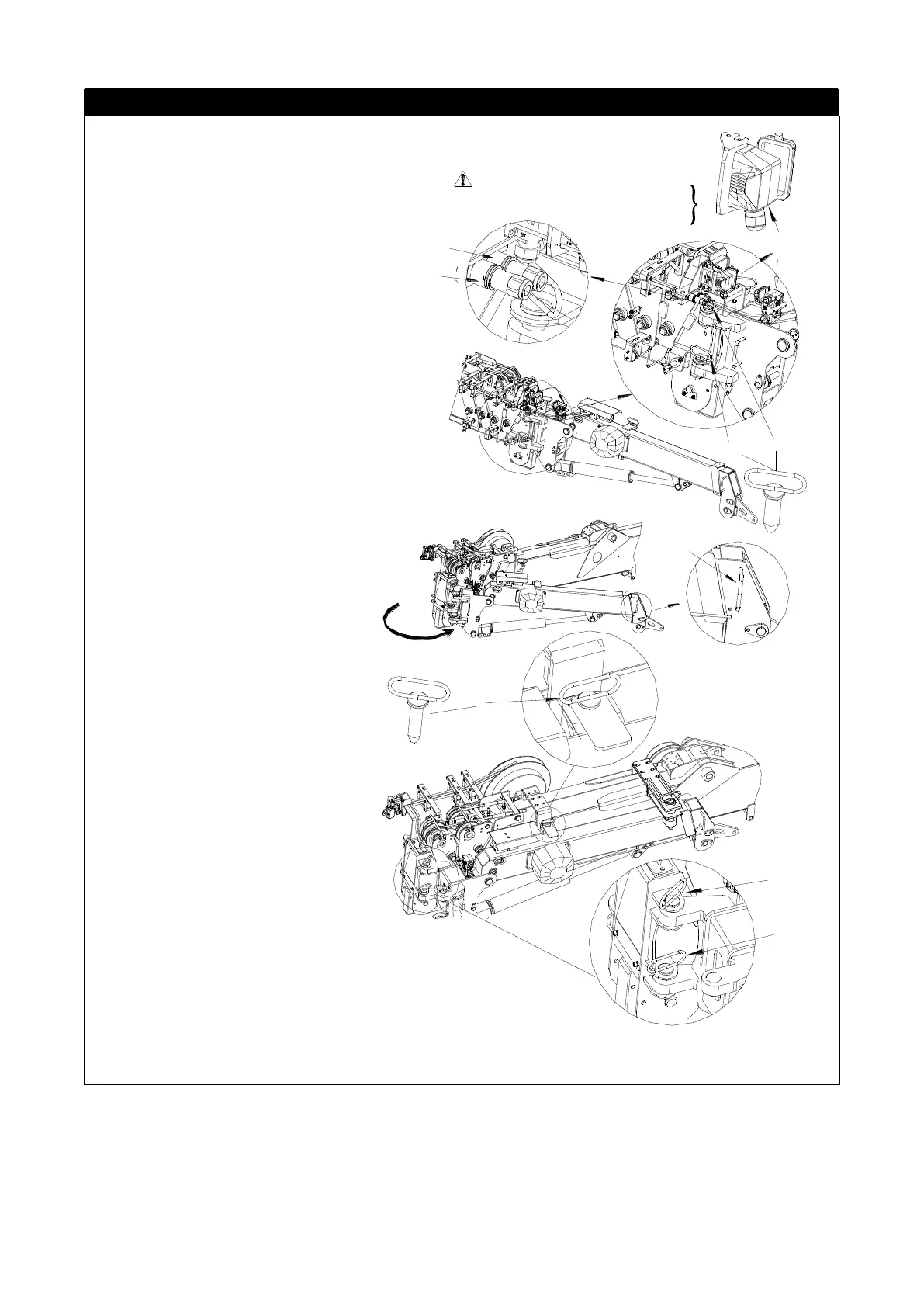

Hydraulic fly jib removal steps
Step three:
1. Insert pin D
2. Unplug the pins A3, A4.
A4
A3
A2
A1
B
Step two:
1.Hold the handle C and rotate
the fly jib.
Step one:
1. Unplug the hydraulic quick-change
connectors T1 and P1
2. Unplug the cable quick change plug
B and fix it in designated location
3. Unplug the pins A1 and A2
P1
D
C
You must always ensure that a pin is always fixed between the main boom and the hydraulic
fly jib during operation, to prevent the hydraulic fly jib falling and causing safety accidents
{
