20

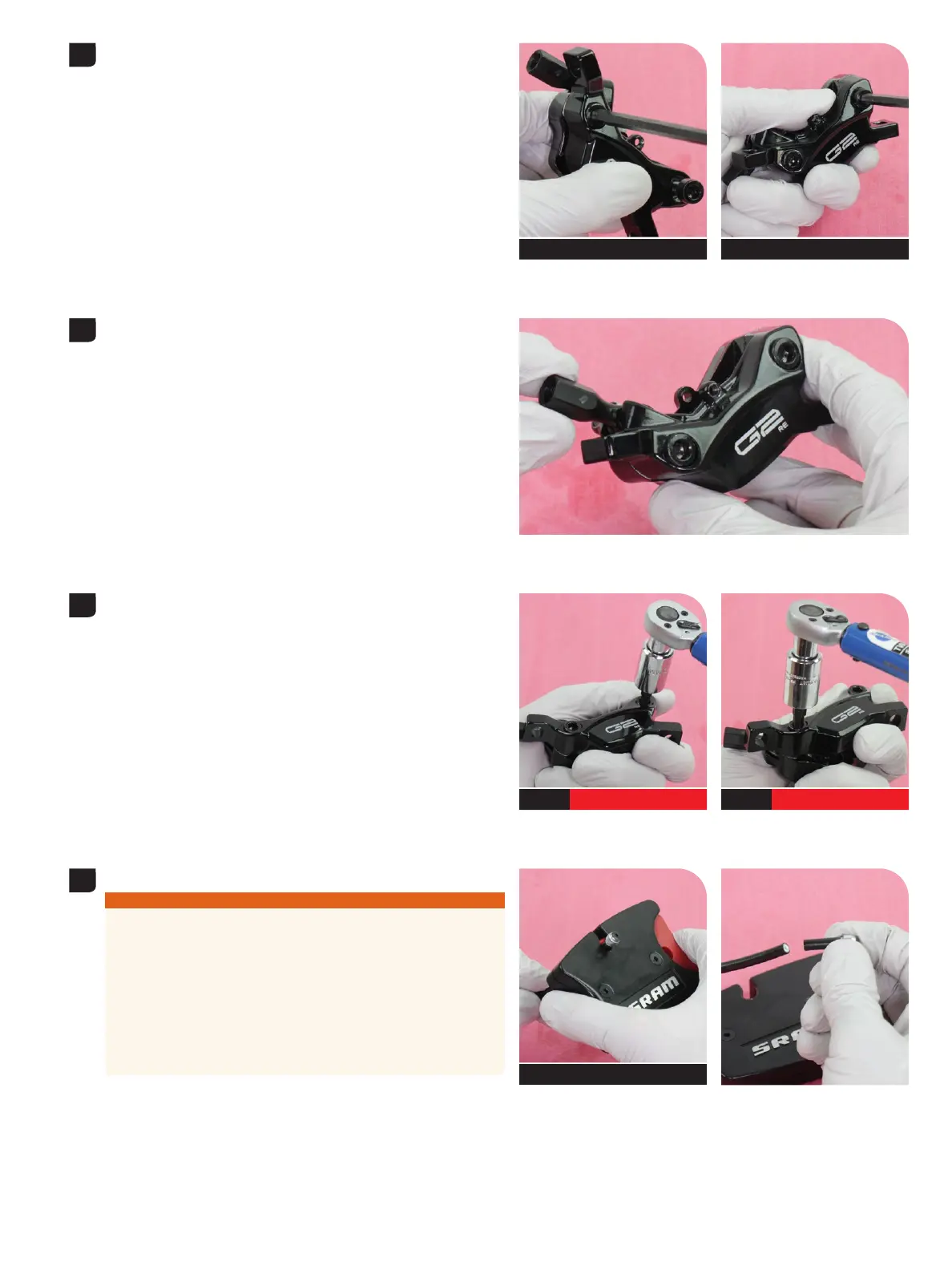

Caliper Piston Installation
Tighten each caliper body bolt until the caliper body halves contact.Tighten each caliper body bolt until the caliper body halves contact.
Orient the banjo to the original position.Orient the banjo to the original position.
Tighten each caliper body bolt to 8.5-10.1 N·m (75-90 in-lb).Tighten each caliper body bolt to 8.5-10.1 N·m (75-90 in-lb).
Cut the hose to install a new barb and compression fitting.Cut the hose to install a new barb and compression fitting.
⚠ WARNING
All SRAM brakes that use a compression fitting and hose barb
must use a new SJ (Stealth-a-majig) hose barb and a new, red SJ
compression fitting upon reassembly.
The factory may have installed a non-red SJ compression
fitting, which functioned properly prior to disconnection. Upon
reconnection, you must install a new SJ hose barb and a new, red SJ
compression fitting.
Brake hoses assembled with non-Stealth-a-majig hose barbs and
compression fittings, will not function.
6
5 mm 5 mm
7
8
5 mm 8.5-10.1 N·m (75-90 in-lb) 5 mm 8.5-10.1 N·m (75-90 in-lb)
9
SRAM Hydraulic Hose Cutter
