SRAM G2 RE User Manual

9
Caliper Service
Caliper Service
Parts and Tools Needed for Service
Parts
• Caliper Service Kit - 2011-2017 Code / 2017-2022 Guide RE /
2023+ G2 RE
• (Optional) Caliper Piston Kit - 2011-2017 Code / 2017-2022 Guide RE /
2023+ G2 RE
• Hydraulic Disc Brake Hose FItting Kit
Safety and Protection Supplies
• Clean, lint-free rags
• Nitrile gloves
• Oil pan
• Safety glasses
Lubricants and Fluids
• Isopropyl alcohol
• SRAM High-Performance DOT 5.1 brake fluid. If SRAM fluid is not
available, only use DOT 5.1 or 4 brake fluid.
• SRAM or AVID DOT grease. If SRAM or AVID DOT grease is not
available, only use a DOT compatible grease.
Common Tools
• Air compressor with a rubber tipped blow chuck
• Digital caliper
• Flare nut crowfoot: 8 mm
• Flare nut wrench: 8 mm
• Hex bit socket: 5 mm
• Hex wrenches: 2.5 and 5 mm
• Needle nose pliers
• Pick (metallic)
• Pick (non-metallic)
• Rubber mat/pad or flat section of inner tube
• Torque wrench
SRAM Tools
• SRAM Brake Bleed Kit (includes: Bleed Block and Bleeding Edge
Fitting)
• Pad spreader (2.8 mm width)

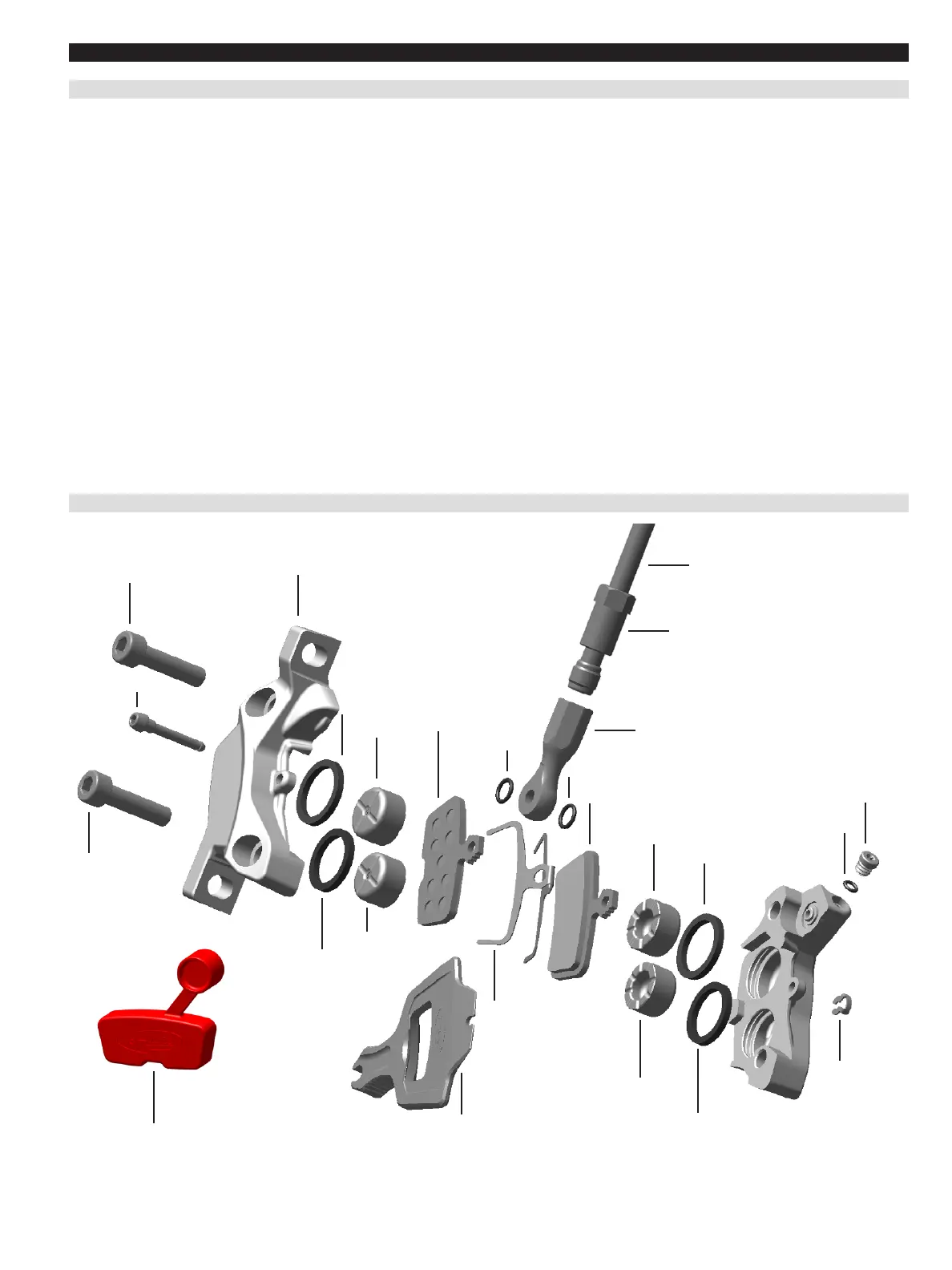

Caliper Exploded View
Brake pad
H-spring
Pad spreader (2.8 mm)
Piston
Piston seal
Pad retention bolt
Body bolt
Body bolt
Piston
Piston seal
Piston
Piston
Bleed screw
O-ring
Hose
Compression nut
Banjo
Caliper
E-clip
Piston seal
Piston seal
Brake pad
O-ring
O-ring
Bleed block
