24
Lever Service
Lever Service
Parts and Tools Needed for Service
Parts
• Lever Internals V2 Guide R / G2 R / Guide RE / G2 RE / CODE R / DB5
Safety and Protection Supplies
• Clean, lint-free shop towels
• Nitrile gloves
• Oil pan
• Safety glasses
Lubricants and Fluids
• Isopropyl alcohol
• SRAM High-Performance DOT 5.1 brake fluid. If SRAM fluid is not
available, only use DOT 5.1 or 4 brake fluid.
• SRAM or AVID DOT grease. If SRAM or AVID DOT grease is not
available, only use a DOT compatible grease.
Common Tools
• Flare nut crowfoot wrench: 8 mm
• Flare nut wrench: 8 mm
• Hammer
• Hex wrenches: 2.5, 3, 4, & 6 mm
• Internal snap ring pliers
• Needle nose pliers
• Pick (metallic)
• Pick (non-metallic)
• TORX wrench: T8, T10, & T25
• TORX bit socket: T10
• Socket: 6 mm
• Torque wrench
SRAM Tools
• SRAM Hydraulic Hose Cutter

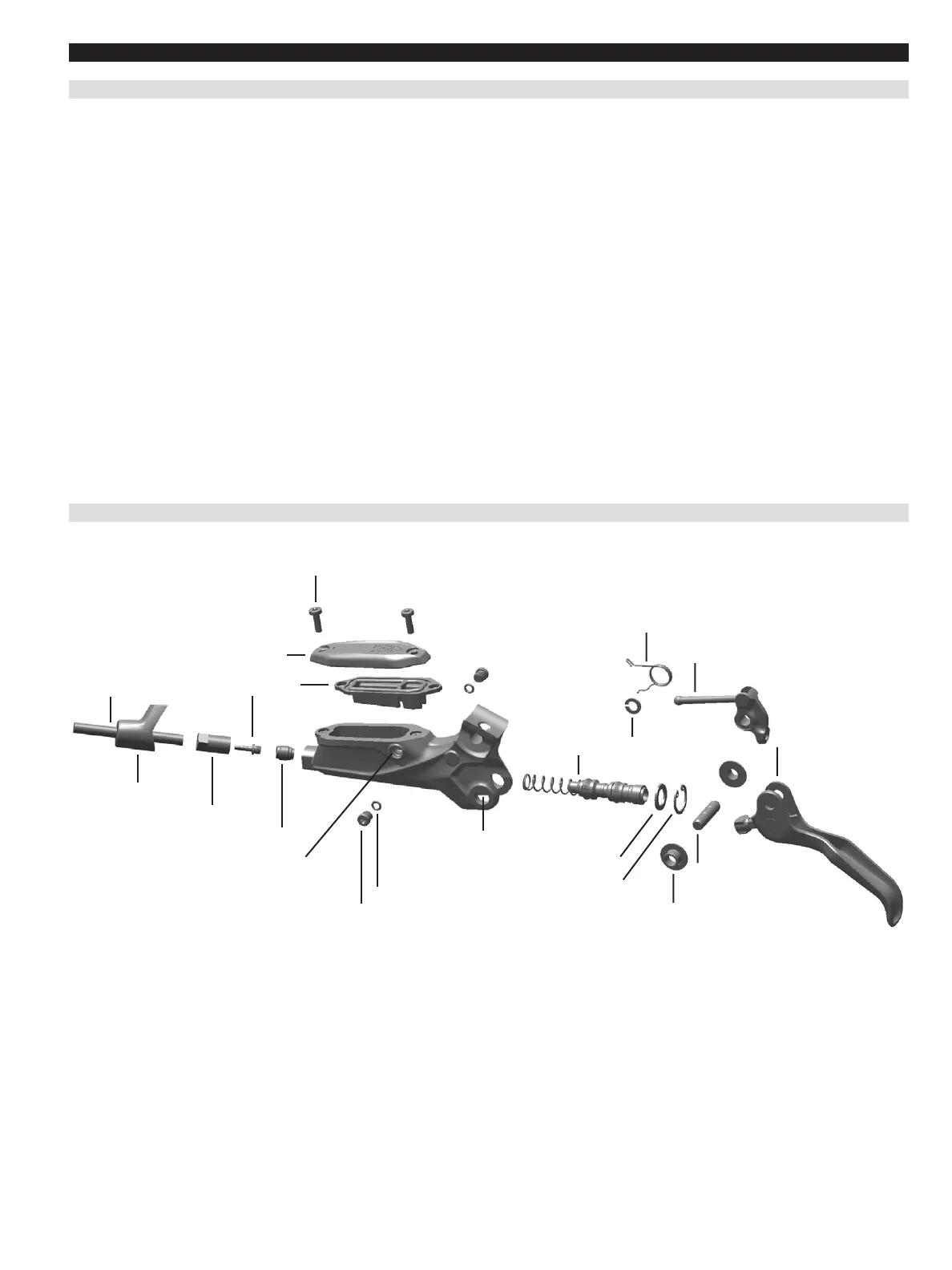

Lever Exploded View
Reservoir bolt (x2)
Bladder
Reservoir cap
Piston assembly
Lever bias spring
Pushrod
Cam bushing
Main pivot bushing
Lever pivot pin
Snap ring
Washer
Lever pivot bushing (2)
Bleed port (x2)
Lever assembly
Lever pivot hole
Lever body
Compression fitting
Compression nut
Hose boot
Hose barb
Hose
Bleed port screw (x2)
Bleed port screw o-ring (x2)
