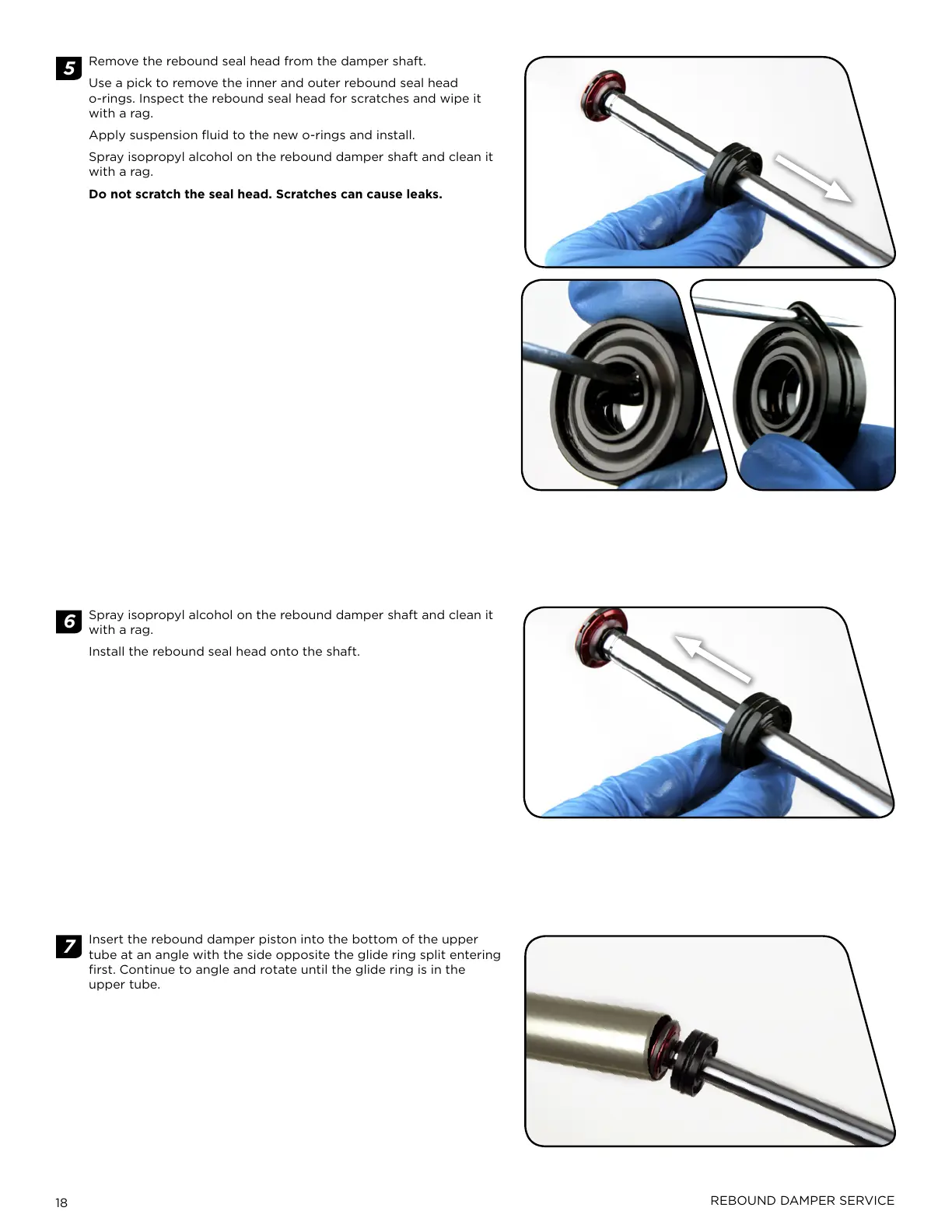

5
Remove the rebound seal head from the damper shaft.
Use a pick to remove the inner and outer rebound seal head
o-rings. Inspect the rebound seal head for scratches and wipe it
with a rag.
Apply suspension fluid to the new o-rings and install.
Spray isopropyl alcohol on the rebound damper shaft and clean it
with a rag.
Do not scratch the seal head. Scratches can cause leaks.
6
Spray isopropyl alcohol on the rebound damper shaft and clean it
with a rag.
Install the rebound seal head onto the shaft.
7
Insert the rebound damper piston into the bottom of the upper
tube at an angle with the side opposite the glide ring split entering
first. Continue to angle and rotate until the glide ring is in the
upper tube.
18
REBOUND DAMPER SERVICE
