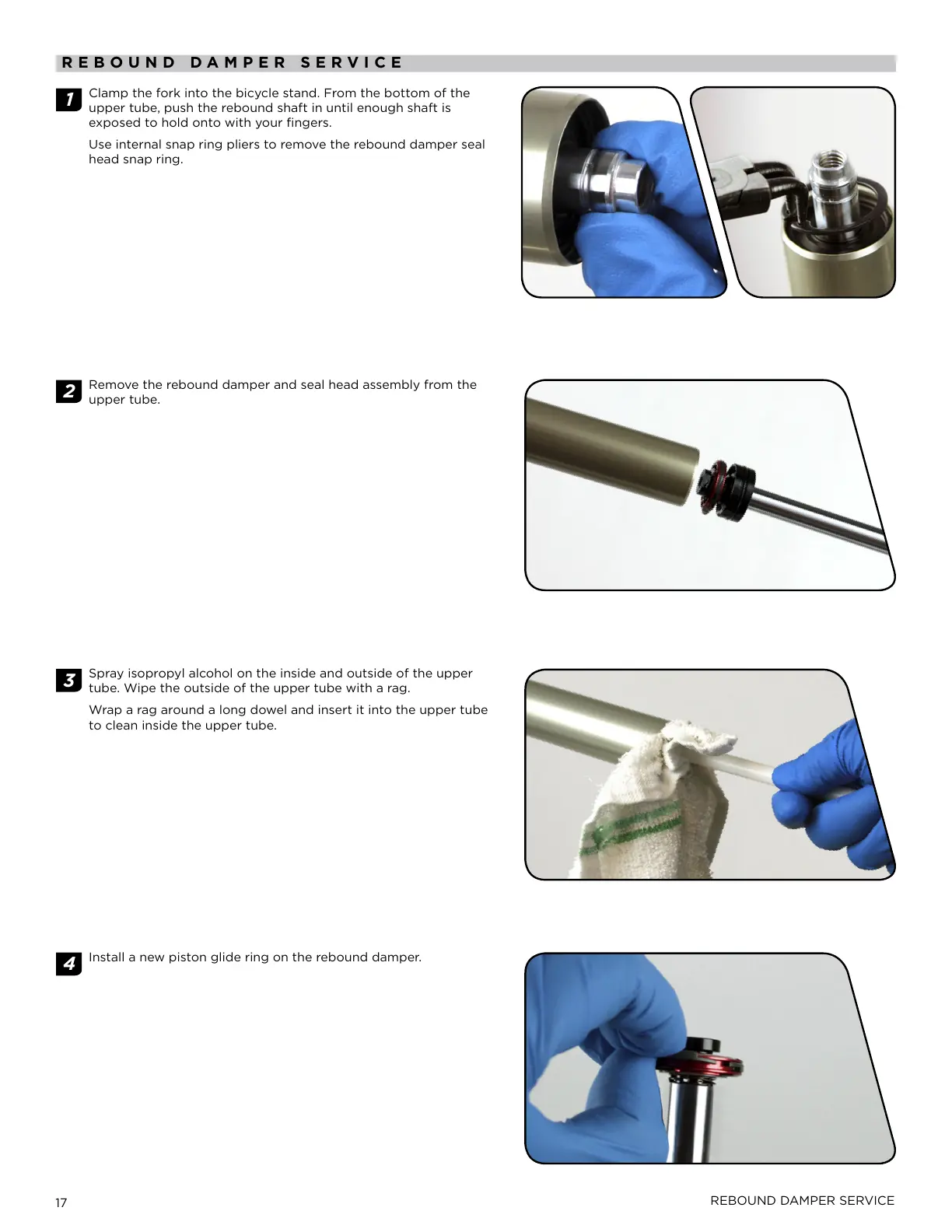

REBOUND DAMPER SERVICE
1
Clamp the fork into the bicycle stand. From the bottom of the
upper tube, push the rebound shaft in until enough shaft is
exposed to hold onto with your fingers.
Use internal snap ring pliers to remove the rebound damper seal
head snap ring.
2
Remove the rebound damper and seal head assembly from the
upper tube.
3
Spray isopropyl alcohol on the inside and outside of the upper
tube. Wipe the outside of the upper tube with a rag.
Wrap a rag around a long dowel and insert it into the upper tube
to clean inside the upper tube.
4
Install a new piston glide ring on the rebound damper.
17
REBOUND DAMPER SERVICE
