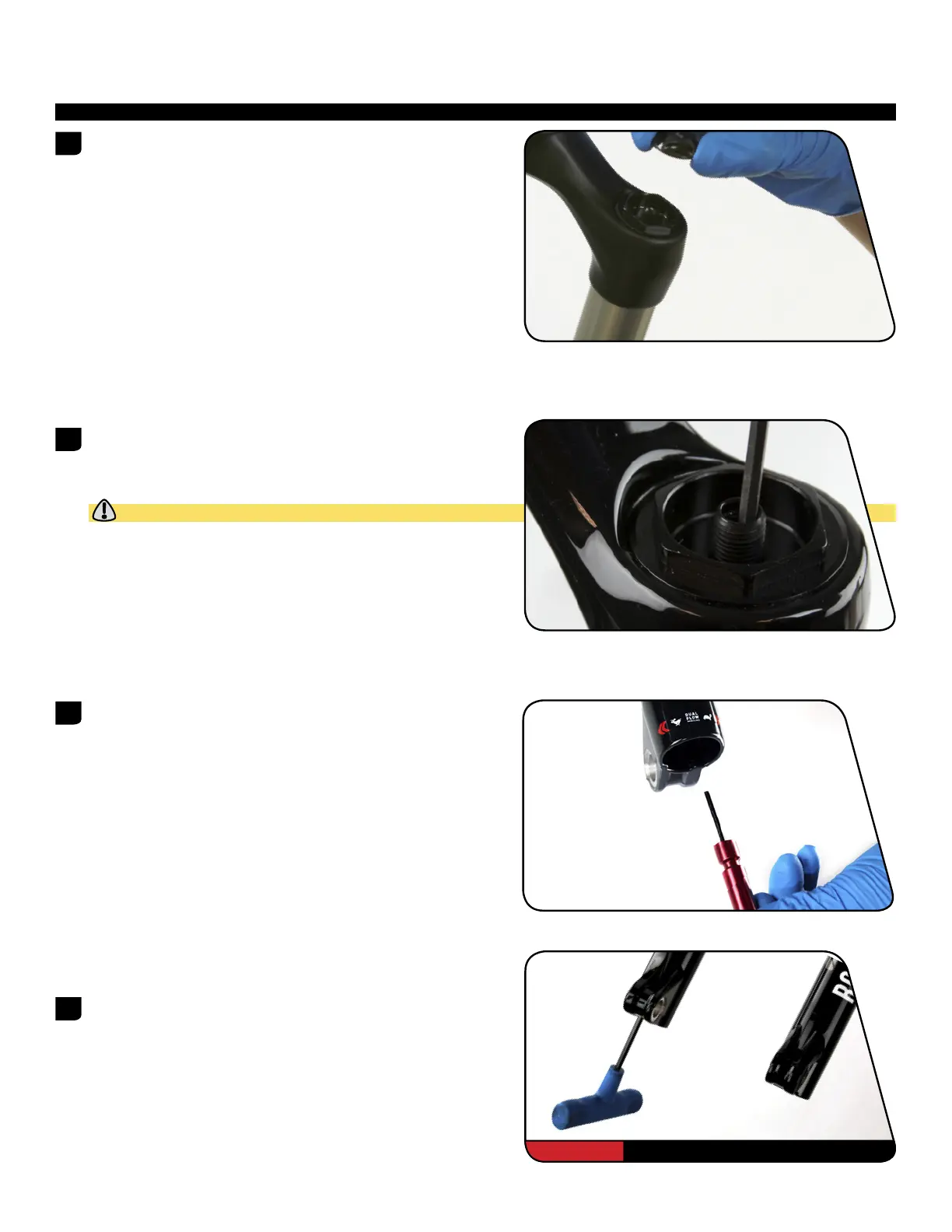

LOWER LEG REMOVAL
1
Remove the air valve cap from the top cap located on the
non-drive side fork leg.
2
Use a small hex wrench to depress the Schrader valve and release
all of the air pressure from the air chamber.
Use a Schrader valve tool to remove the valve core from the valve
body. Install a new Schrader valve.
CAUTION- EYE HAZARD
Verify all pressure is removed from the fork before proceeding.
Failure to do so can result in injury and/or damage to the fork.
3
Remove the external rebound adjuster knob by pulling it from the
shaft bolt at the bottom of the drive side fork leg.
4
Use a 5 mm hex wrench to loosen both shaft bolts 3 to 4 turns.
5 mm
6
LOWER LEG REMOVAL
To Next Page
