12

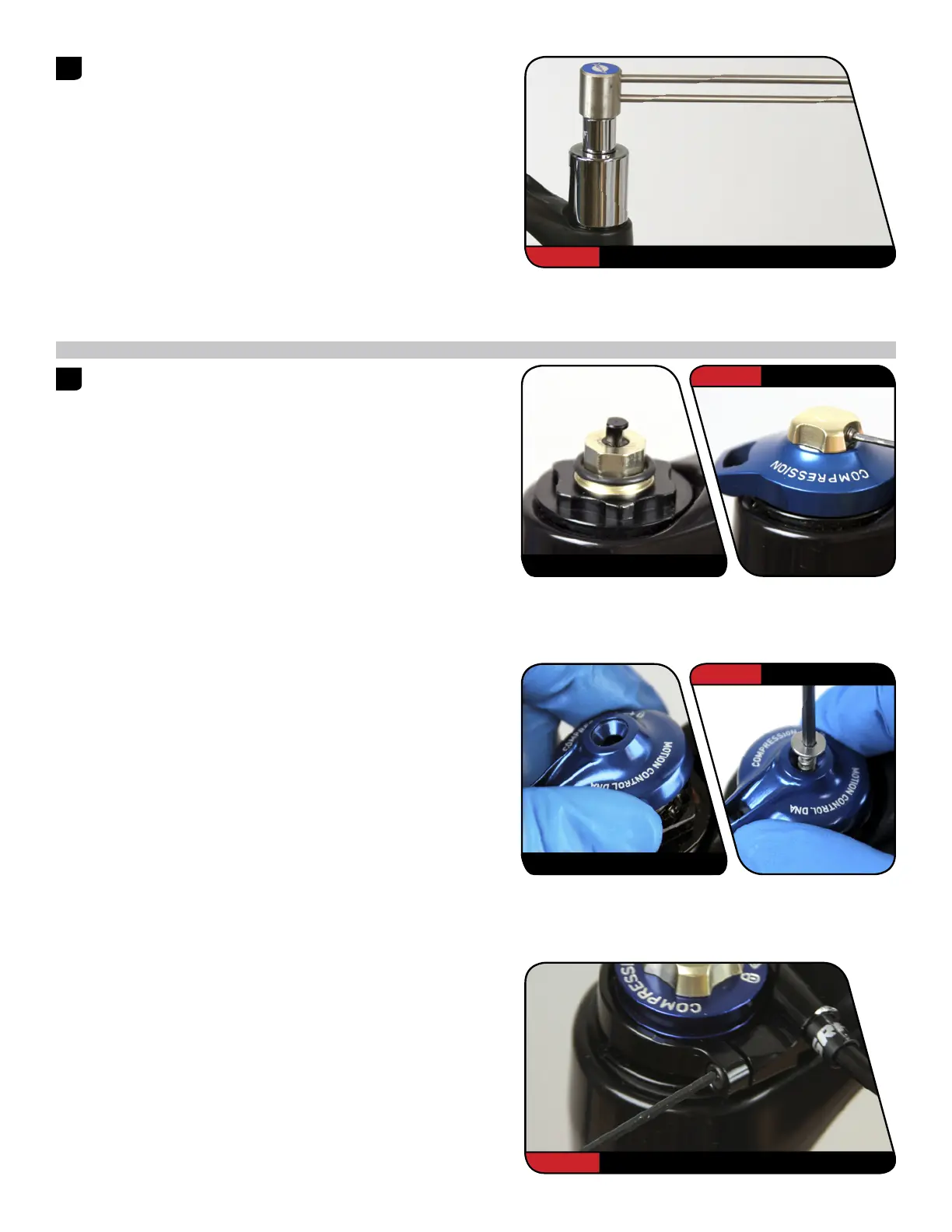

Use a torque wrench with a 24 mm socket to tighten the
compression damper to 7.3 N·m (65 in-lb).
COMPRESSION DAMPER INSTALLATION
1
RLT: Install a new o-ring on the cam, then install the compression
adjuster knob so the knob dial is against the hard stop.
Use a 1.5 mm hex bit socket to tighten the gate adjuster knob set
screw to 0.6 Nm (5 in-lb).
RL: Install the compression adjuster knob with the knob dial
against the hard stop.
Use a 2.5 mm hex bit socket to install the compression adjuster
knob retention screw to 1.4 Nm (12 in-lb).
Remote Only: Install the cable stop collar onto the top cap with
the cable stop facing toward the front of the fork, perpendicular to
the crown. Use a 2 mm hex bit socket to tighten the collar clamp
bolt to 1.4 Nm (12 in-lb).
24 mm 7.3 N·m (65 in-lb)
RLT
1.5 mm 0.6 Nm (5 in-lb)
RL
2.5 mm 1.4 Nm (12 in-lb)
2 mm 1.4 N·m (12 in-lb)
20
COMPRESSION DAMPER INSTALLATION
