5

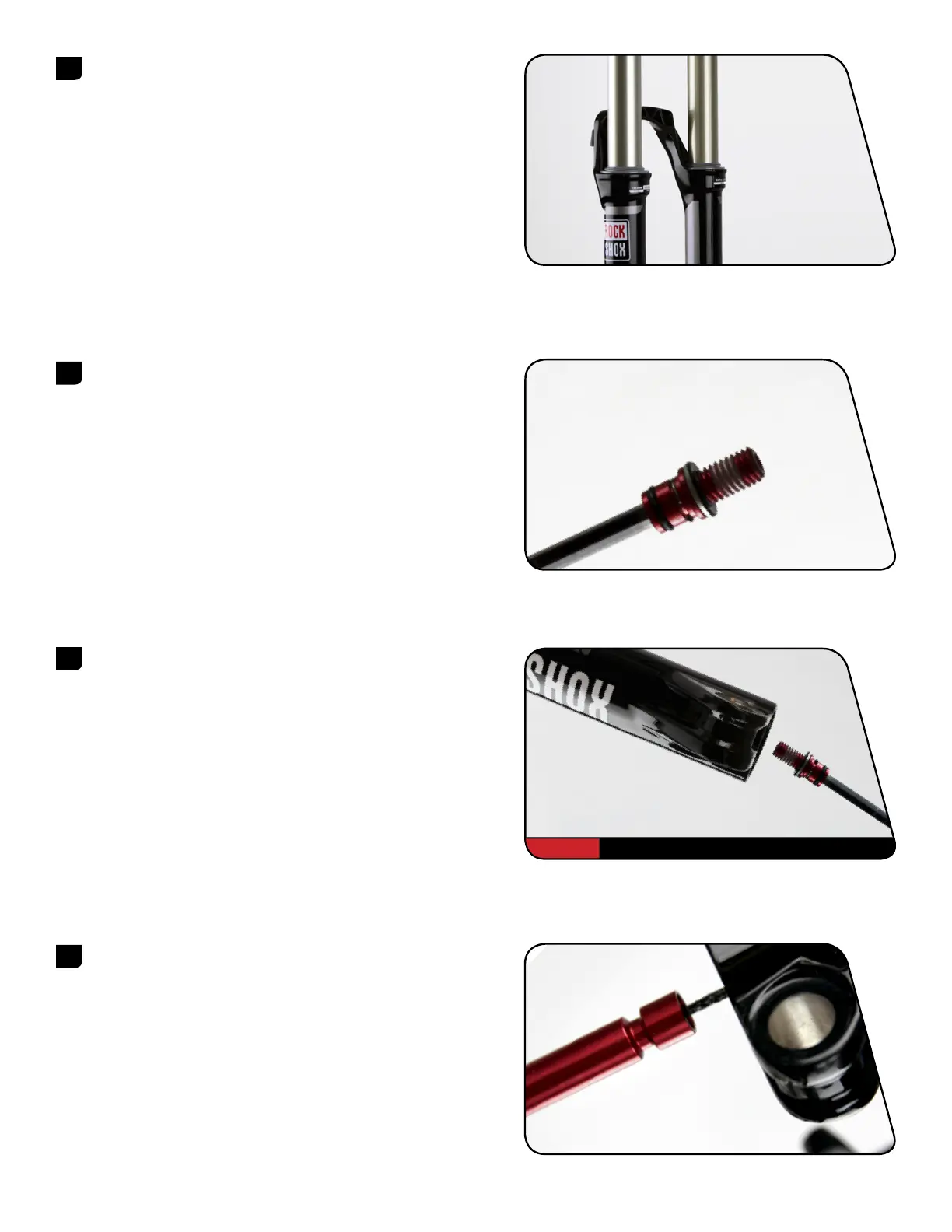

Slide the lower leg assembly along the upper tubes until it stops
and the spring and damper shafts are visible through the shaft bolt
holes. Wipe all excess fluid from the outer surface of the lower
legs.
6
Install a new o-ring into the top gland of a new shaft bolt. Install a
new spring clip in the lower gland of the shaft bolt.
Apply a thick layer of grease around the diameter of the bolt head
and o-ring.
Replace the crush washers and crush washer retainers.
Dirty or damaged crush washers can cause leaks.
7
Insert the shaft bolts into the lower legs through the threaded
shaft bolt holes.
Use a torque wrench with a 5 mm hex bit socket to tighten the
bolts to 7.3 N·m (65 in-lb).
8
Insert the external rebound damper knob into the rebound damper
shaft bolt until it is secure. Adjust the rebound.
5 mm 7.3 N·m (65 in-lb)
22
LOWER LEG INSTALLATION
