1B3-108 OM600 ENGINE MECHANICAL

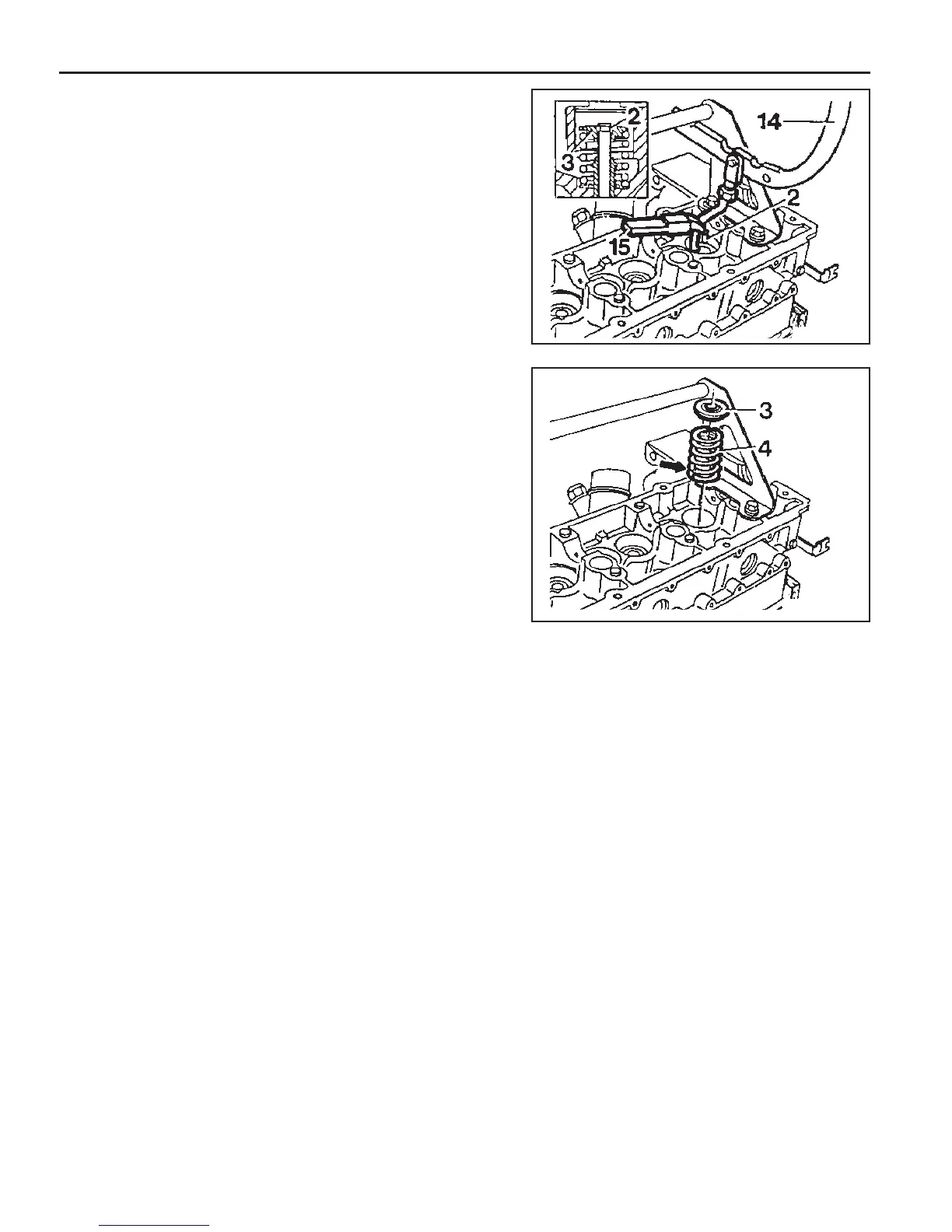

5. Using the press lever (14), press the spring retainer
downward and remove the valve cotters (2) with magnetic
finger (15).
Notice
Be careful not to damage guide bore of the valve tappet.
Press Lever 667 589 00 31 00
Magnetic Finger 116 589 06 63 00
6. Remove the spring retainer (3) and spring (4).
Installation Notice
Install the valve spring with the color coding (arrow) facing
down.
7. Check the valve spring and replace if necessary.
8. Installation should follow the removal procedure in the
reverse order.
