OM600 ENGINE MECHANICAL 1B3-187
Standard size
Wear limit in direction of travel and in transverse direction
Permissible deviation of cylinder shape
Honing angle

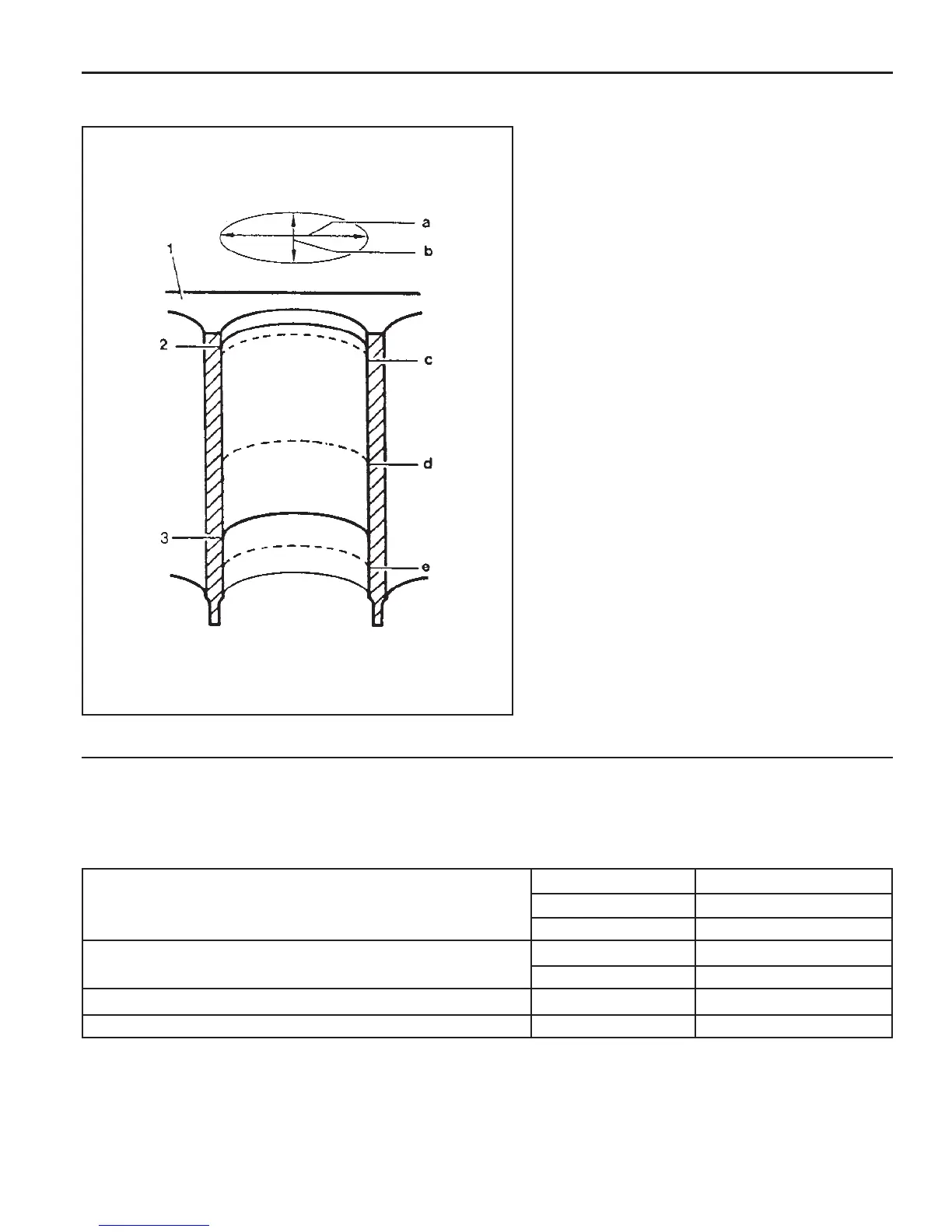

CYLINDER BORE MEASUREMENT
a Longitudinal Direction
b Transverse Direction
c, d, e. Measuring Point
1 Crankcase Contacting Surface
2 TDC of 1st Piston Ring
4 BDC of Ring
Service Data
Code letter ‘A’
Code letter ‘X’
Code letter ‘B’
When new
Wear limit
89.000 - 89.006mm
89.006 - 89.012mm
89.012 - 89.018mm
Max. 0.20mm
0.01mm
0.05mm
50° ± 10°
