1B3-158 OM600 ENGINE MECHANICAL

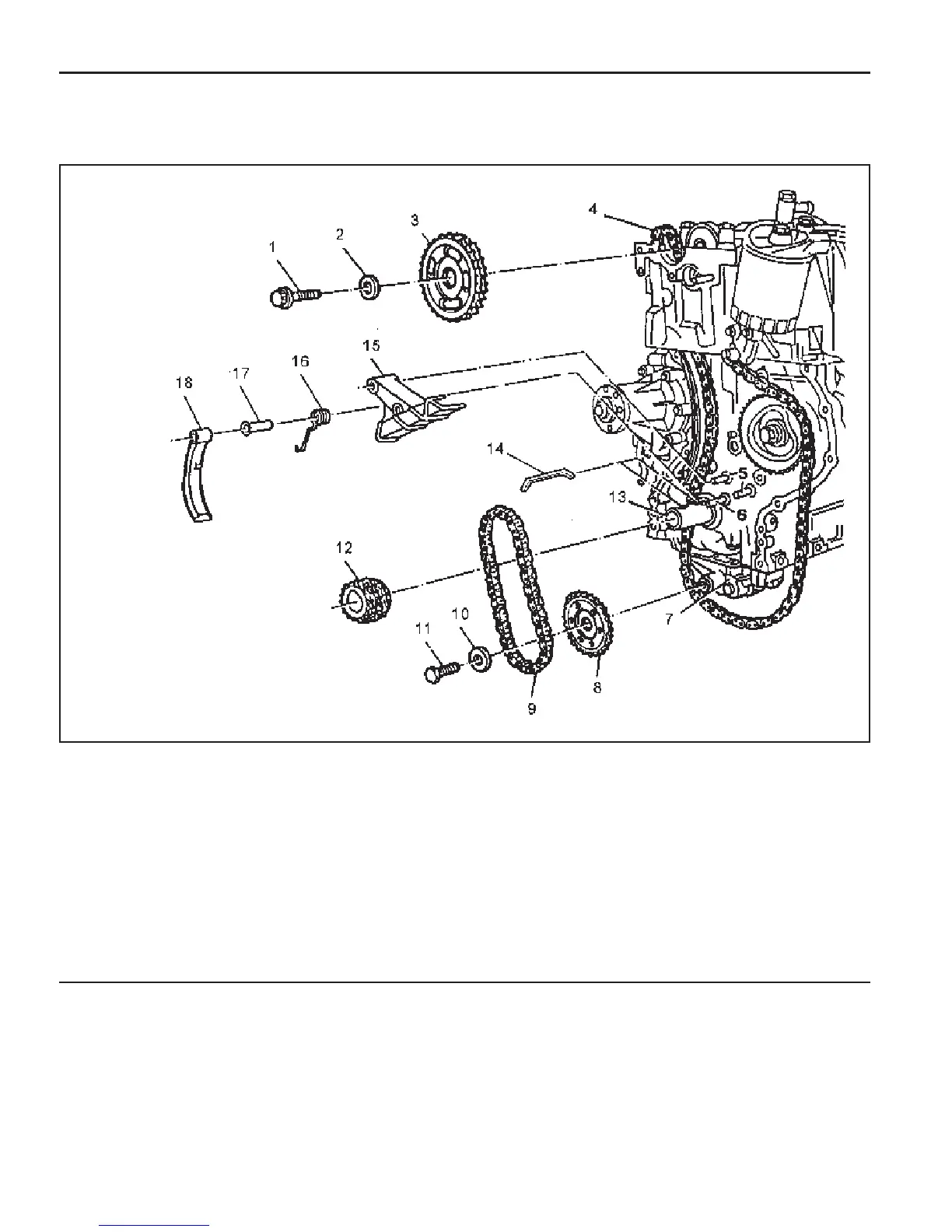

CRANKSHAFT SPROCKET

Preceding Work : Removal of oil pan

Removal of timing case cover

1 12-Sided Stretch Bolt (M11) ..Check, 25Nm + 90°

2 Washer

3 Camshaft Sprocket

4 Timing Chain

5 Bearing Pin

6 Bearing Pin

7 Oil Pump

8 Oil Pump Sprocket

9 Oil Pump Chain

10 Washer

11 Bolt ............................................................ 25Nm

12 Crankshaft Sprocket

13 Crankshaft

15 Key

16 Guide Rail

17 Spring

18 Bushing

19 Tensioning Lever
