OM600 ENGINE MECHANICAL 1B3-159
Special Tools
116 589 07 15 00 Drift
102 589 05 33 00 Puller

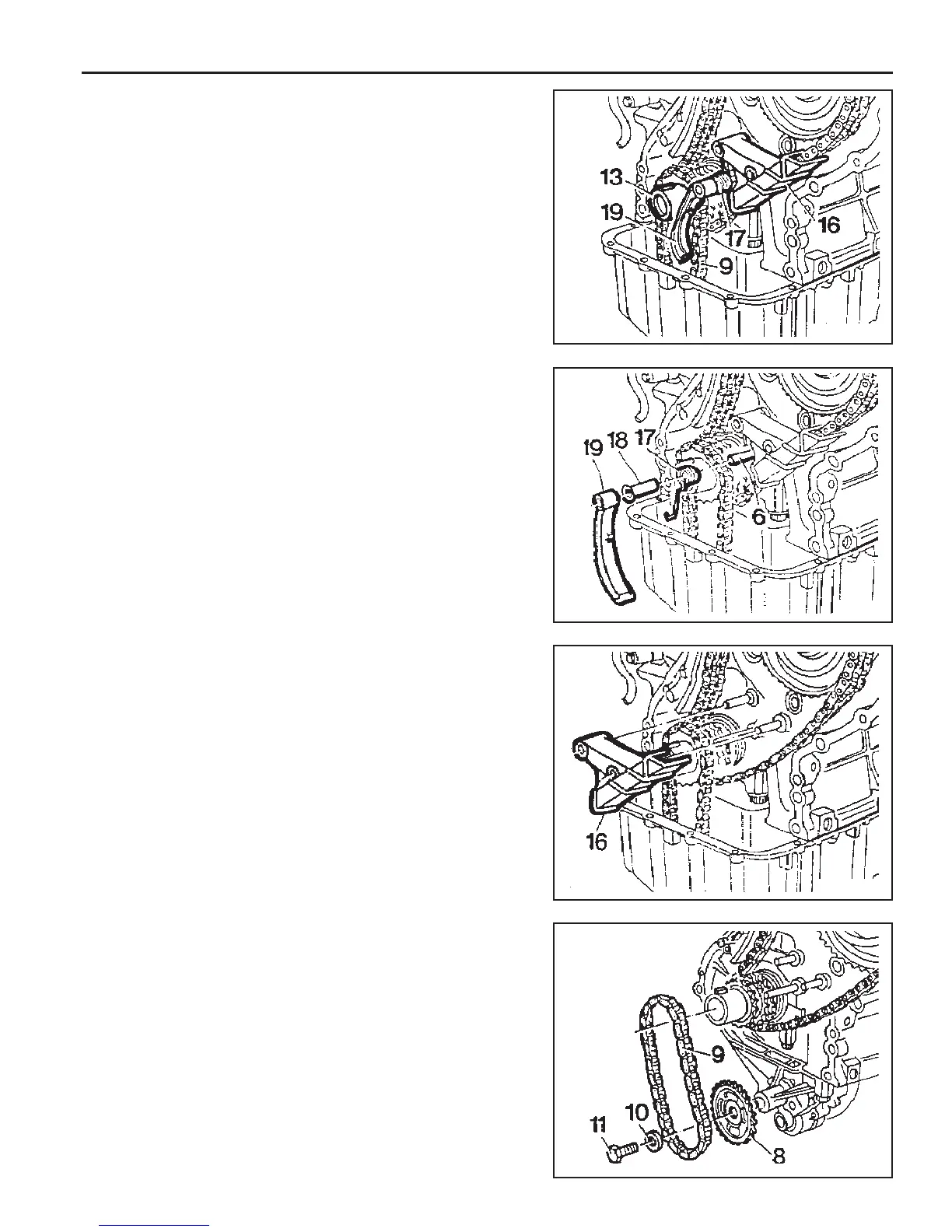

Removal Procedure
1. Pull out the tensioning lever (19) together with the spring
(17) and guide rail (16) far enough until the tensioning lever
has passed the oil pump chain (9) and is resting against
the crankshaft (13).
2. Pull out tensioning lever (19), spring (17) and bushing (18)
from the bearing pin (6).
3. Pull out the guide rail (16).
4. Remove the bolt(11) and then remove the washer (10), oil
pump chin (9) and sprocket (8).
