OM600 ENGINE MECHANICAL 1B3-37

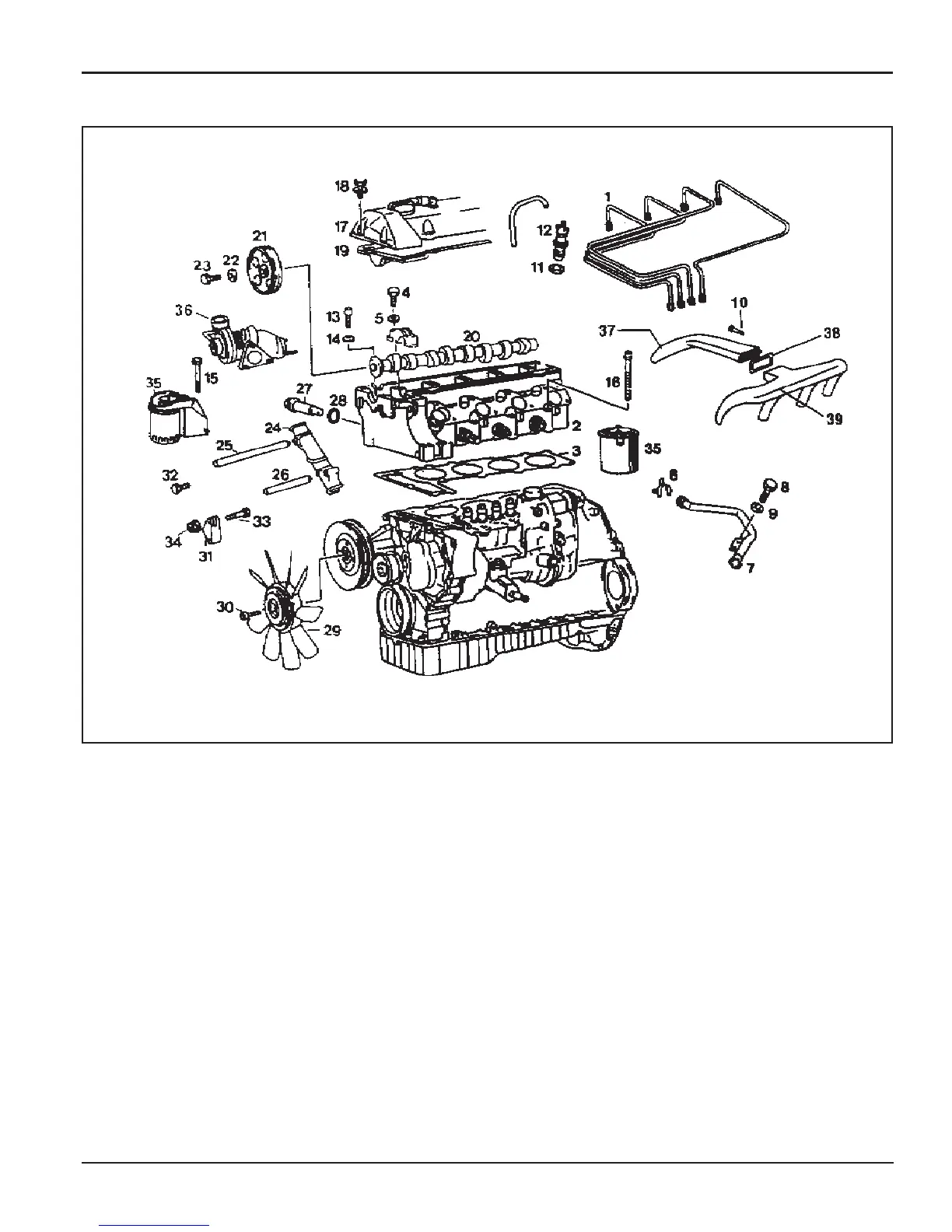

CYLINDER HEAD
1 Fuel Injection Pipe ..................................... 18Nm
2 Cylinder Head
3 Gasket ................................................... Replace
4 Bolt ............................................................ 25Nm
5 Washer
6 Clamp
7 Heater Feed Pipe
8 Bolt
9 Washer
10 Bolt
11 Nozzle Washer ....................................... Replace
12 Fuel Injection Nozzle ............................ 35-40 Nm
13 Hexagon Socket Bolt ................................. 25 Nm
14 Washer
15 Bolt ........................................................... 25 Nm
16 Cylinder Head Bolt .............................. See Table
17 Cylinder Head Cover
18 Bolt ........................................................... 10 Nm
19 Gasket
20 Camshaft
21 Camshaft Drive Sprocket ....................... Replace
22 Washer
23 Bolt(12-Sided).................................. 25Nm + 90°
24 Sliding Rail
25 Sliding Rail Pin
26 Sliding Rail Pin
27 Chain Tensioner ....................................... 80 Nm
28 Gasket ................................................... Replace
29 Cooling Fan .............................................. Check
30 Hexagon Socket Bolt................................. 45 Nm
31 Tensioning Lever
32 Bolt ........................................................... 25 Nm
33 Bolt
34 Nut............................................................ 23 Nm
35 Fuel Filter
36 Turbo Charger
37 Intake Duct
38 Gasket ................................................... Replace
39 Intake Manifold
