OM600 ENGINE MECHANICAL 1B3-35
TDC (TDC SENSOR BRACKET) SETTING
Preceding Work : Removal of No.1 cylinder prechamber

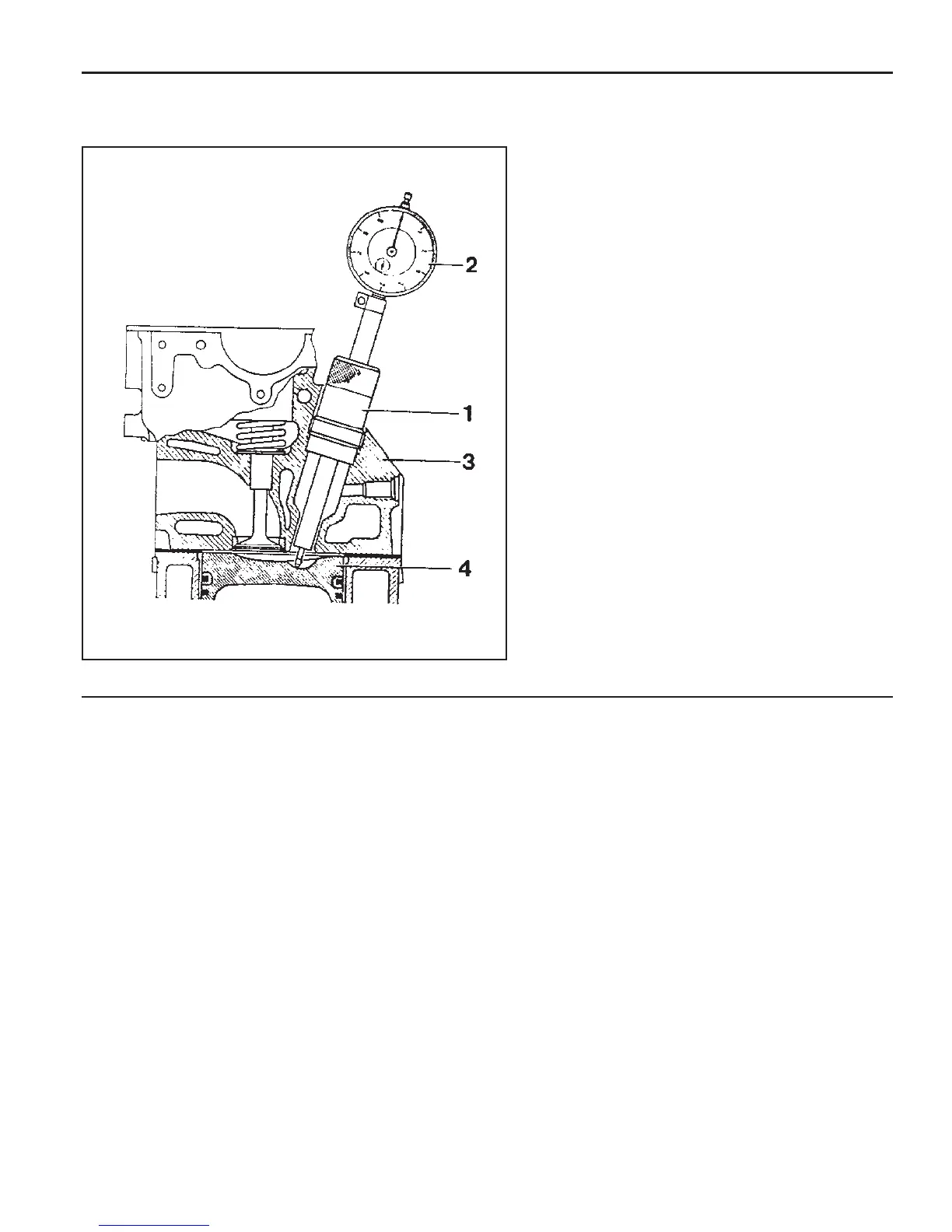

1 Measuring Device
2 Dial Gauge
3 Cylinder Head
4 Piston ................................................Set at TDC
Tools Service
001 589 32 21 00 Dial Gauge
601 589 07 21 00 Deqth Gauge
667 589 01 21 00 Fixing Device
Notice
l The TDC sensor bracket must be adjusted in case of
followings.
l When replacing the TDC sensor bracket.
l When replacing the crankshaft, the hub or the vibration
damper.
l When replacing or installing the timing case cover.
l After engine overhauling.
∗ If the cylinder head is removed, the measuring pin of the
dial gauge can be positioned on the piston crown.
This is done by placing the magnetic dial holder on the
mating surface of the crankcase.
To Next Page
