1B3-152 OM600 ENGINE MECHANICAL
CYLINDER HEAD GUIDE RAIL
Preceding Work : Removal of the cooling fan
Removal of poly V-belt
Removal of chain tensioner

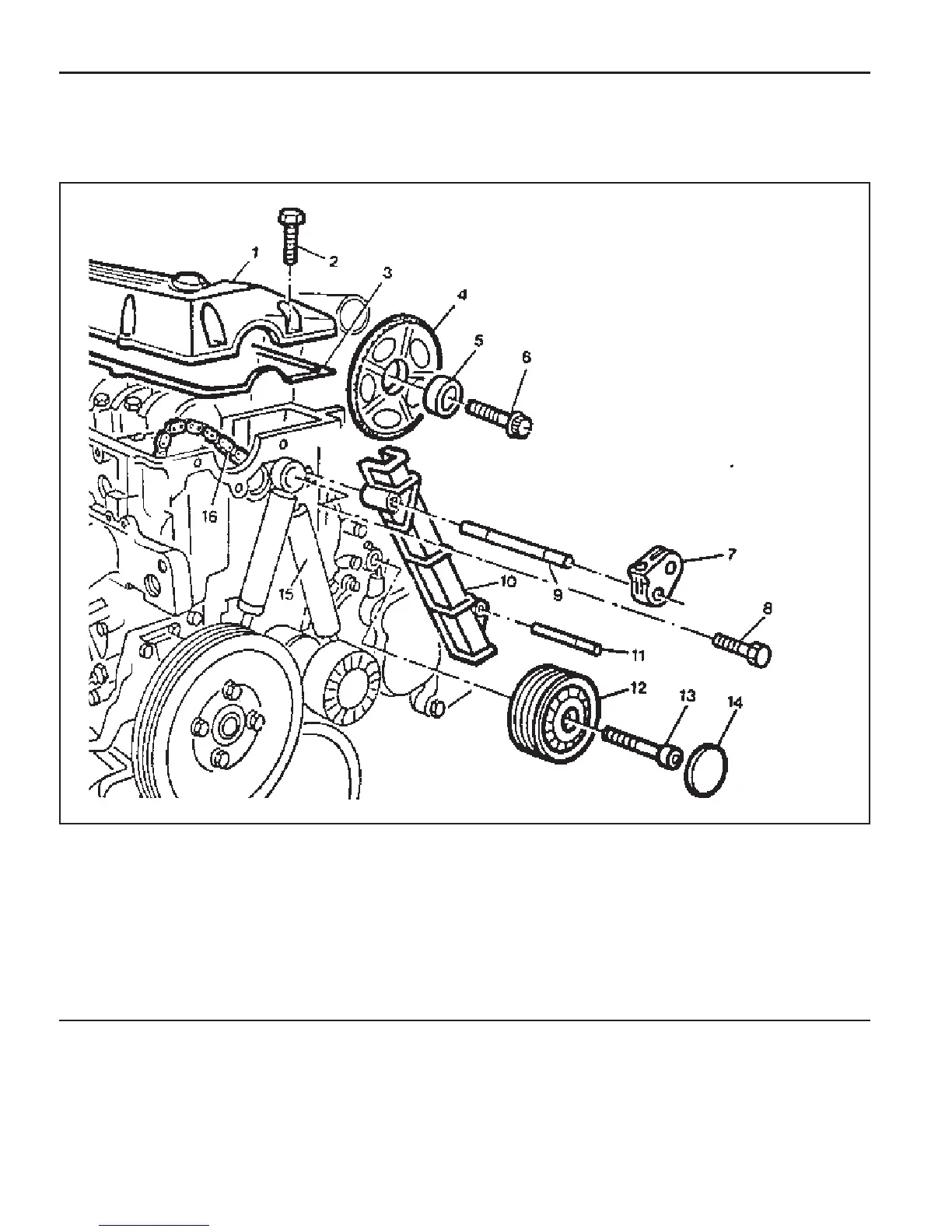

1 Cylinder Head Cover
2 Bolt ............................................................ 10Nm
3 Gasket ................................................... Replace
4 Camshaft Sprocket
5 Washer
6 12-Sided Bolt (M11) ............ Inspect, 25Nm + 90°
7 Tensioning Lever
8 Bolt ............................................................ 23Nm
9 Bearing Pin ........................... Sealing Compound
10 Guide Rail
11 Bearing Pin
12 Guide Pulley
13 Socket Bolt ................................................ 23Nm
14 Closing Cover
15 Spring
16 Timing Chain
To Next Page
