OM600 ENGINE MECHANICAL
1B3-127
CHECK AND
MACHINING OF
VAL
VES
Preceding Works :
Removal of cylinder
head
Removal of the vale spring
Removal of the valve

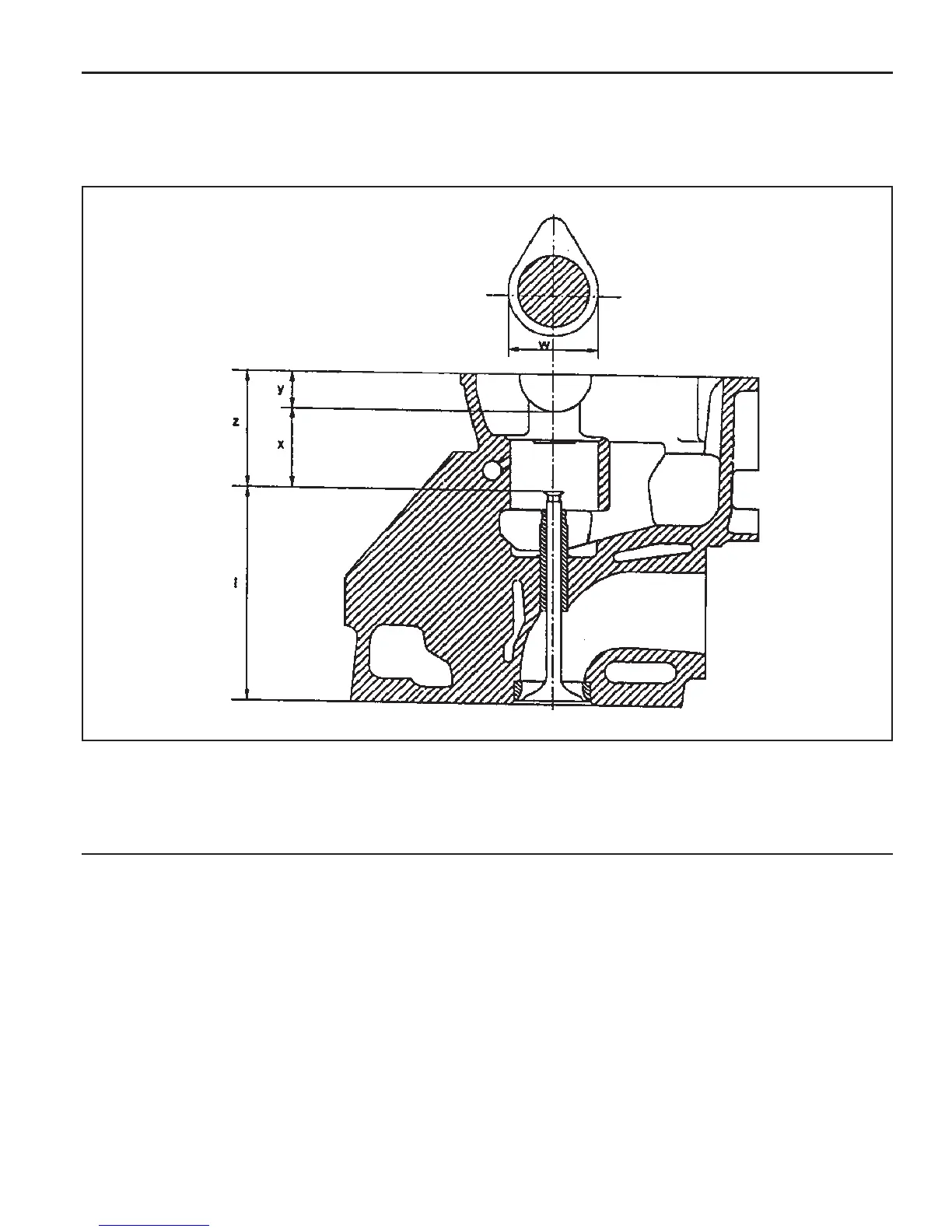

I
V
alve Length
W
Camshaft Cam Basic Diameter
X
Distance (Camshaft Basic Bore - V
alve Stem)
Y
Half Camshaft Basic Bore Diameter
Z
Distance (Cylinder Head Cover Parting Surface -
V
alve Stem)
126
128
Table of Contents
Default Chapter
1
Table of Contents
1
Specifications
2
Fastener Tightening Specifications
2
Special Tools
4
Special Tools Table
4
Maintenance and Repair
12
On-Vehicle Service
12
Engine Assembly
12
Poly V-Belt
21
Tensioning Device
23
Poly V-Belt Alignment & Inspection
26
Prechamber
29
Milling of Prechamber Sealing Surface
32
TDC (TDC Sensor Bracket) Setting
35
Cylinder Head
37
Timing Case Cover
63
Crankshaft End Cover
71
Vibration Damper and Hub
74
Crankshaft Front Radial Seal
80
Crankshaft Ball Bearing
82
Crankshaft
83
Flywheel
93
Machining of Flywheel
97
Flywheel Ring Gear
98
Hydraulic Valve Clearance Compensation Element Check
101
Valve Tappets
106
Valve Spring Check
109
Valve Springs (Cylinder Head Installed)
109
Valve Stem Seals
112
Check and Replacement of Valve Guides
116
Valve Seat Rings
122
Check and Machining of Valves
127
Machining of Valve Seat
132
Camshaft Timing Test
137
Camshaft
139
Chain Tensioner
145
Timing Chain
147
Tensioning Rail
151
Cylinder Head Guide Rail
152
Timing Case Cover Guide Rail
156
Crankshaft Sprocket
157
Piston
162
Oil Filter
168
Oil Pan
170
Oil Spray Nozzle
173
Oil Pump
174
Unit Repair
176
Cylinder Head Pressure Leakage Test
176
Facing Cylinder Head Mating Surface
177
Replacement of Crankcase Core Plug
179
Facing Crankcase Contacting Surface
181
Oil Gallery Steel Ball
182
Cylinder Bore Measurement
186
4
