1B3-128 OM600 ENGINE MECHANICAL

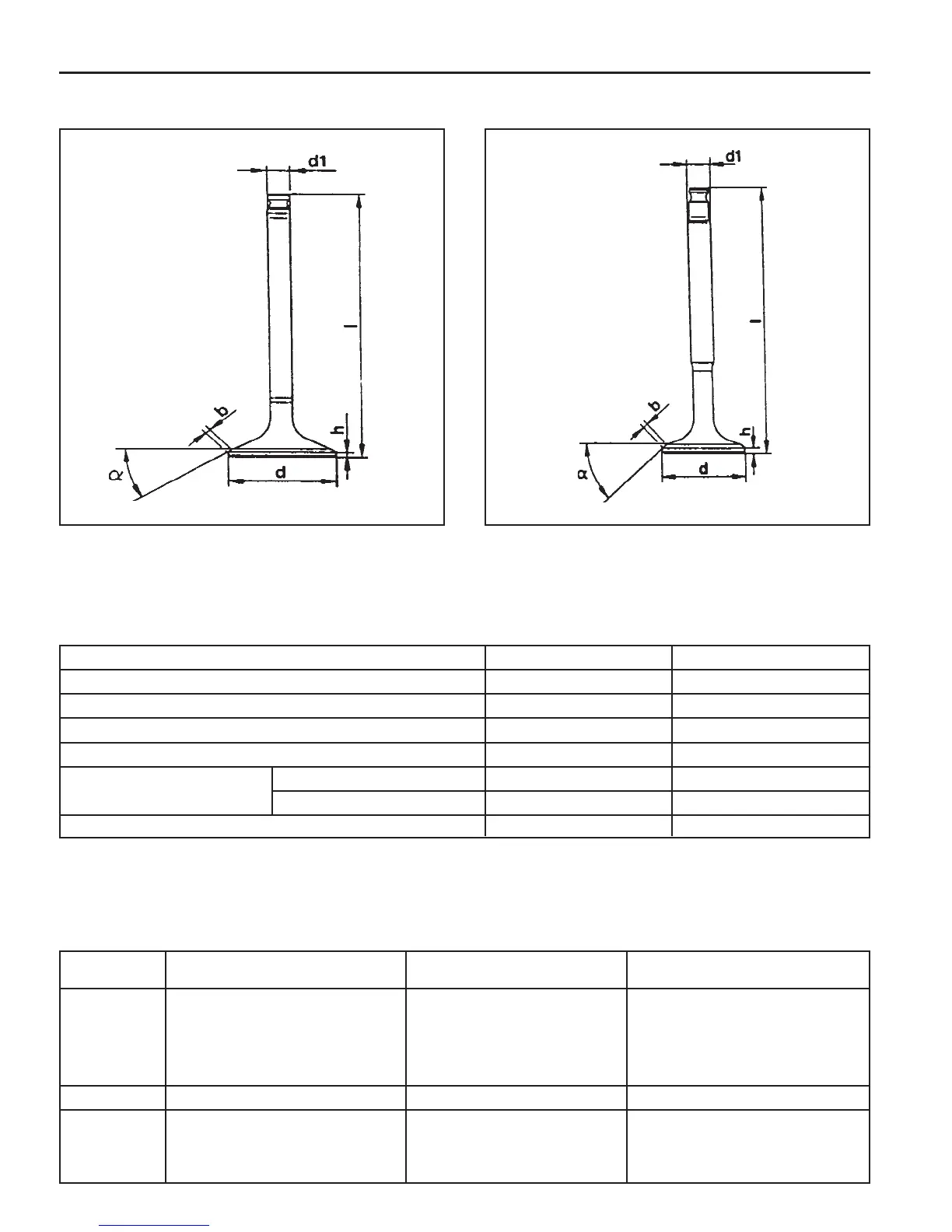

Intake Valve Exhaust Valve
Item
Valve Disc Diameter ‘d’
Valve Disc Height ‘h’
Setting Angle “α” or Machining the Valve
Valve Stem Diameter ‘d1’
Valve Length ‘I’
Intake Valve
37.90 - 38.10 mm
1.7 mm
45°
7.955 - 7.970 mm
106.20 - 106.60 mm
105.30 - 105.70
0.03 mm
Exhaust Valve
34.90 - 35.10 mm
1.7 mm
45°
9.945 - 8.960 mm
106.20 - 106.60 mm
105.30 - 105.70 mm
0.03 mm
Standard
Repair
Max. Permis Sible Runout at Valve Stem and Valve Seat
W = 38.0 ± 0.2mm
Matching Valves
Camshaft Cam Basic Dia.
Size (x)
Size (x)
Size (x)
19.5 - 20.3mm
20.4 - 21.4mm
21.4 - 21.97mm
W = 36.6 ± 0.2mm
Camshaft Cam Basic Dia.
19.5 - 20.1mm
20.2 - 21.2mm
21.2 - 21.97mm
Valve to be Used
Use machined valve,
if needed
new repair valve
I = 105.5 ± 0.2mm
Reuse valve
Use standard size
valve
I = 106.4 ± 0.2mm
