OM600 ENGINE MECHANICAL 1B3-63

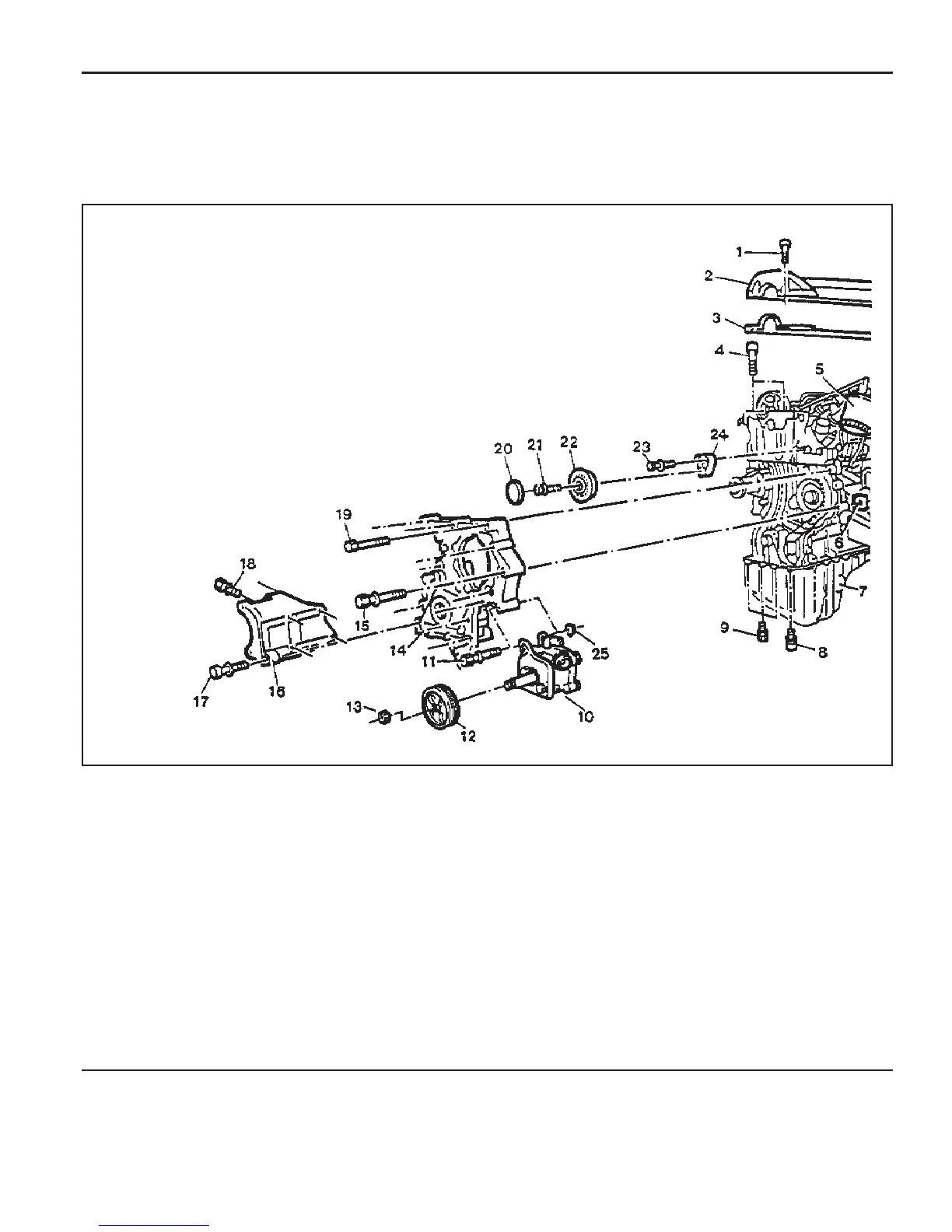

TIMING CASE COVER
Preceding Work : Removal of the cooling fan
Rmoval of the V-belt tensioning device
Removal of the vibration damper and hub
Removal of the alternator
1 Bolt ............................................................ 10Nm
2 Cylinder Head Cover
3 Gasket ................................................... Replace
4 Socket Bolt ................................................ 25Nm
5 Fuel Filter
6 Square Nut
7 Oil Pan
8 Socket Bolt ................................................ 10Nm
9 Bolt .................................................... M6 : 10Nm
M8 : 23Nm
10 Power Steering Pump
11 Bolt
12 Belt Pulley
13 Bolt ............................................................ 32Nm
14 Timing Case Cover
15 Bolt ............................................................ 23Nm
16 Alternator Bracket
17 Bolt ............................................................ 45Nm
18 Bolt ............................................................ 25Nm
19 Bolt ............................................................ 10Nm
20 Closing Cover
21 Socket Bolt ................................................ 23Nm
22 Guide Pulley
23 Bolt .............................................................. 9Nm
24 Guide Pulley Bracket
25 Nut............................................................. 23Nm
To Next Page
