OM600 ENGINE MECHANICAL 1B3-163

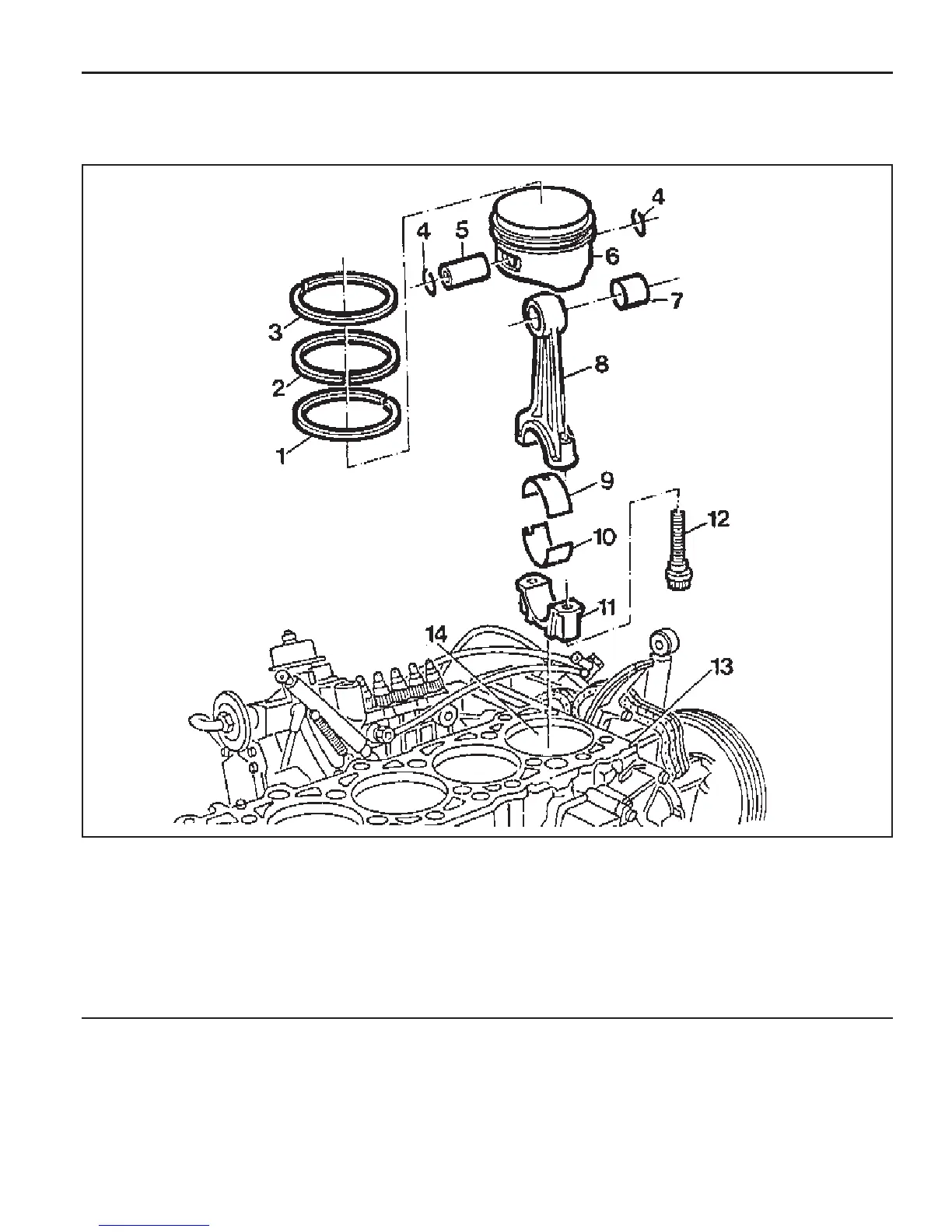

PISTON
Preceding Work : Removal of the cylinder head
Removal of the oil pump
1 Oil Ring
2 2nd Ring
3 Top Ring
4 Snap Ring .............................................. Replace
5 Piston Pin
6 Piston
7 Connecting Rod Bushing .......................... Check
8 Connecting Rod
9 Connecting Rod Upper Bearing Shell
10 Connecting Rod Lower Bearing Shell
11 Connecting Rod Bearing Cap
12 Connecting Rod Bolt.........................35Nm + 90°
13 Crankcase
14 Cylinder Bore
Notice
There are two kinds of connecting rods (for machining) and they are different in weight approx. 15g. When replacing
the connecting rod, measure its weight and ensure that a engine has the same weight of connecting rods. If not, there
would be a unbalancing of engine.
