OM600 ENGINE MECHANICAL 1B3-23

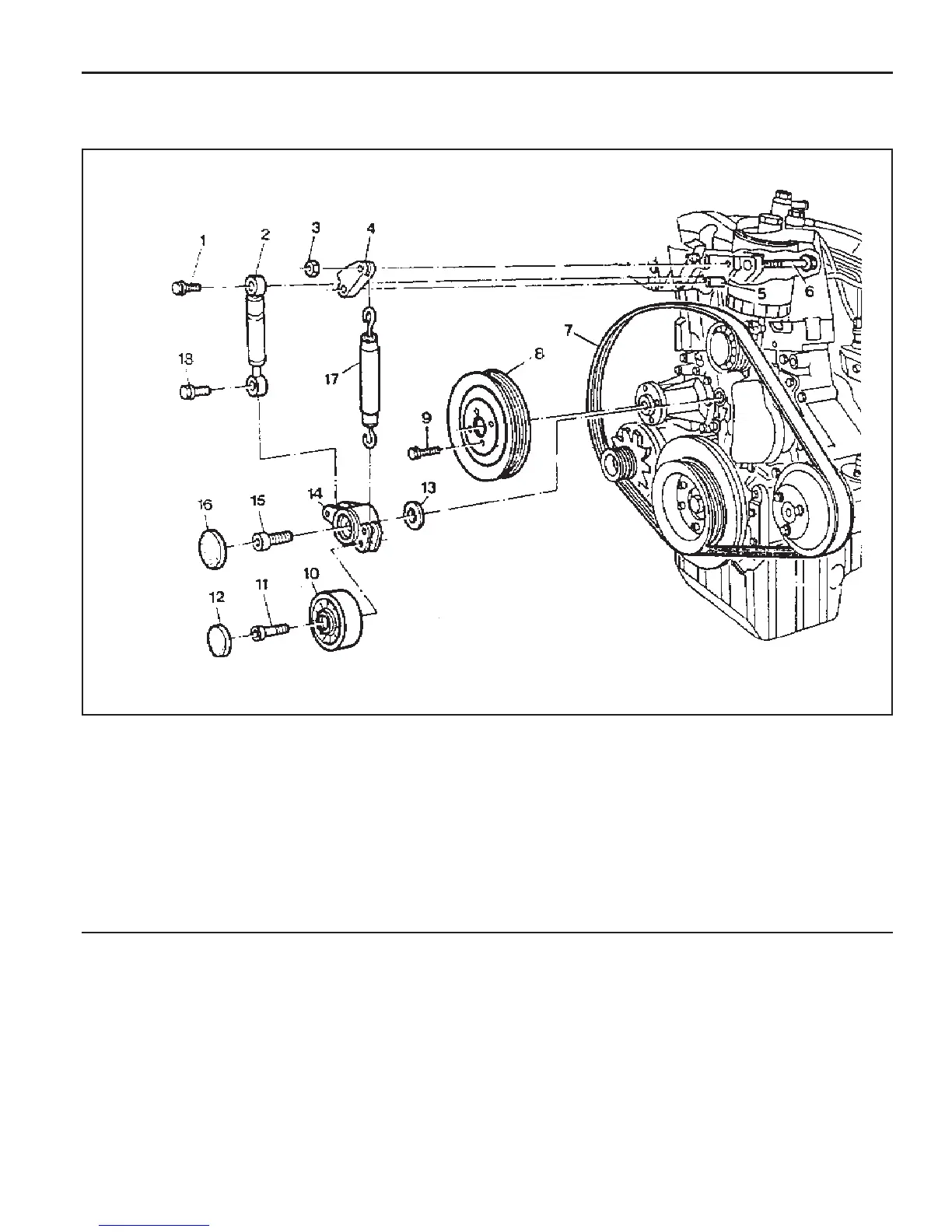

TENSIONING DEVICE

Preceding Work : Removal of cooling fan

1 Bolt ............................................................ 21Nm

2 Damper

3 Nut ............................................................. 21Nm

4 Tensioning Lever

5 Guide Rail Pin

6 Bolt

7 Poly V-Belt

8 Belt Pulley

9 Bolt ............................................................ 10Nm

10 Tensioning Pulley

11 Socket Bolt ................................................ 29Nm

12 Closing Cover

13 Washer

14 Tensioning Lever

15 Fit Bolt ..................................................... 100Nm

16 Closing Cover

17 Spring

18 Bolt ............................................................ 20Nm
