1B3-22 OM600 ENGINE MECHANICAL
With Air Conditioner
Removal & Installation Procedure

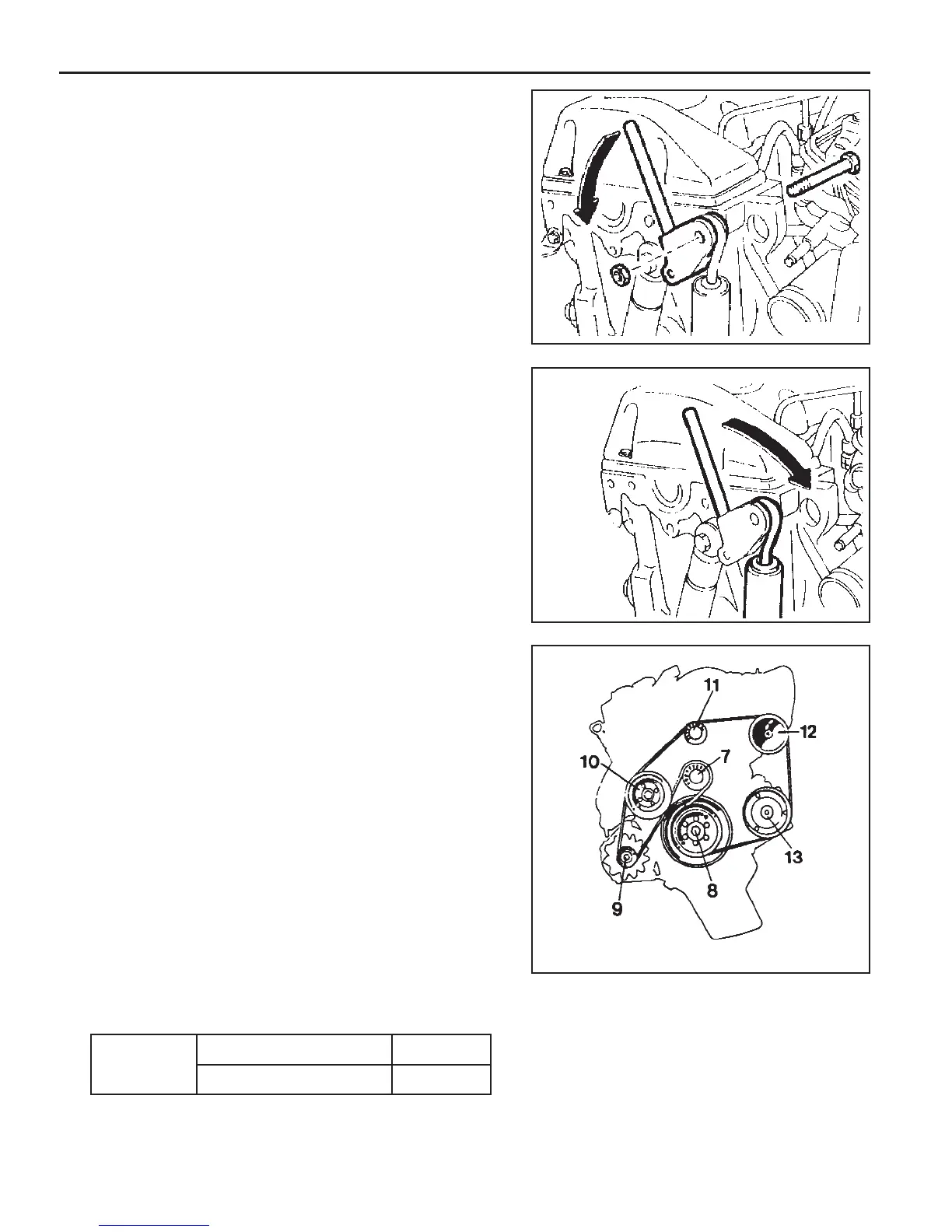

1. Remove the nut.
2. Push the tensioning lever in direction of arrow with a rod
(F12 ´ 180mm) and pull out the bolt to the rear.
3. Push back the tensioning lever (arrow direction) to release
the spring tension and remove the belt.
4. Install the poly V-belt beginning at the tensioning pulley (7).
7 Tensioning Pulley
8 Crankshaft
9 Alternator
10 Coolant Pump
11 Guide Pulley
12 Power Steering Pump
13 Aircon. Compressor
Lengthe of Belt
Length (L)
Without Air Conditioner
2,100 mm
2,040 mm
