OM600 ENGINE MECHANICAL 1B3-117
Tools Required
000 589 10 53 00 Reamer (for Exhaust)
000 589 10 68 00 Cylinder Brush
000 589 21 53 00 Reamer (for Intake)
102 589 00 23 00 GO / NO GO Gauge (for Intake)
103 589 02 15 00 Drift (for Exhaust)
103 589 03 15 00 Drift (for Intake)
117 589 03 25 00 GO / NO GO Gauge (for Exhaust)
346 589 00 63 00 Super Cooling Box
601 589 02 23 00 GO/NO GO Gauge
601 589 05 15 00 Drift (for Intake)
Notice

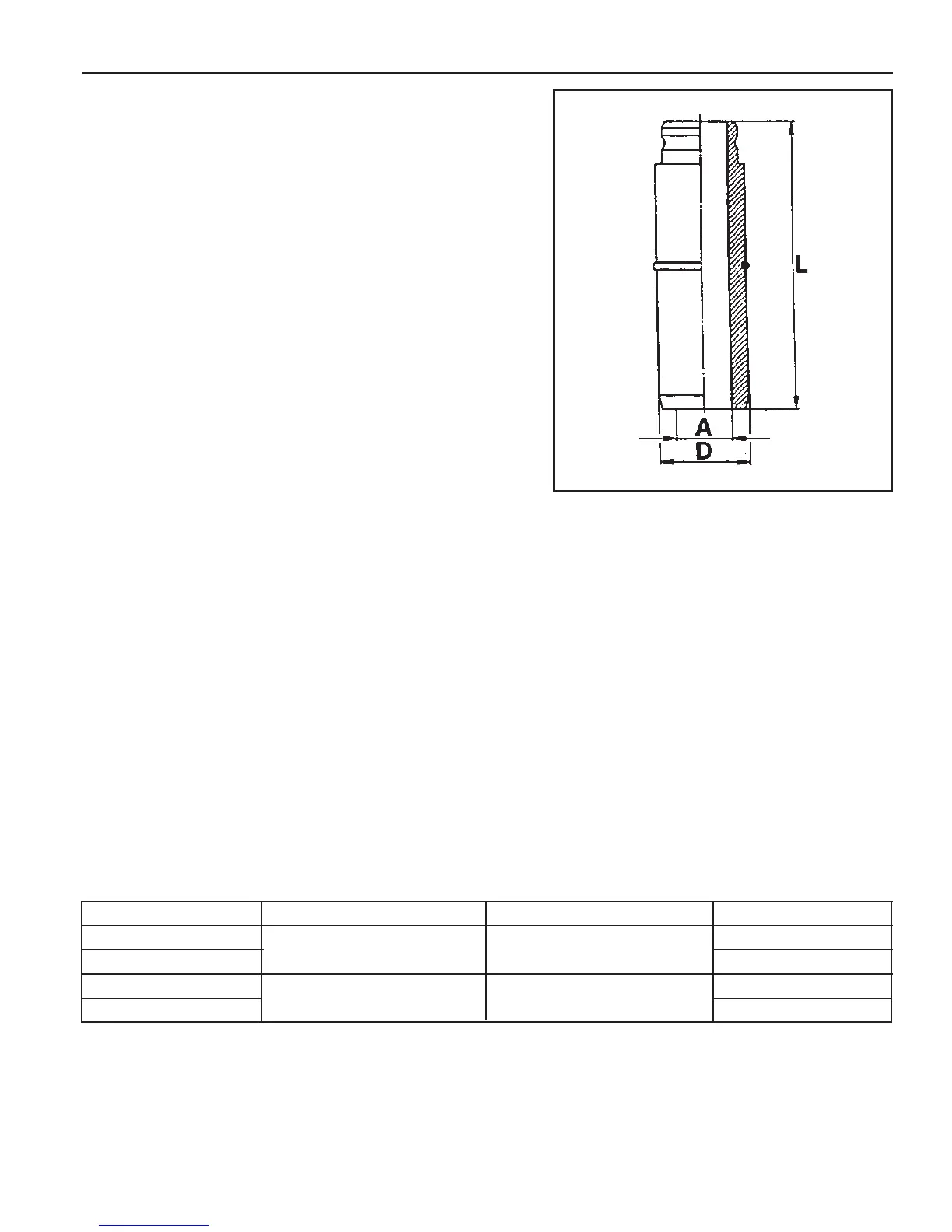

Measure center (arrow) of the valve guide and if the inner
diameter ‘A’ exceeds standard value, replace the guide.
601 589 06 15 00 Drift (for Exhaust)
Matching Valve Seat - Broaching Tools - Guide Sleeves
Valve Seat
Intake
Exhaust
Intake
Exhaust
Broaching Tool No.
115 589 00 53 00
(14.2mm)
115 589 01 53 00
(14.4mm)
Guide Sleeve Tool No.
102 589 00 63 00
102 589 08 63 00
Guide Sleeve Side
B
B
A
B
601 589 15 63 00
