1B3-146 OM600 ENGINE MECHANICAL
Notice
Always install the chain tensioner to be filled with oil.
Place the chain tensioner in engine oil up to over the collar on the hexagon head with the thrust pin facing up.
Slowly push down the thrust pin as far as the stop 7~10 times with the aid of a press or a column drill
Faulty chain tensioners should be replaced completely.

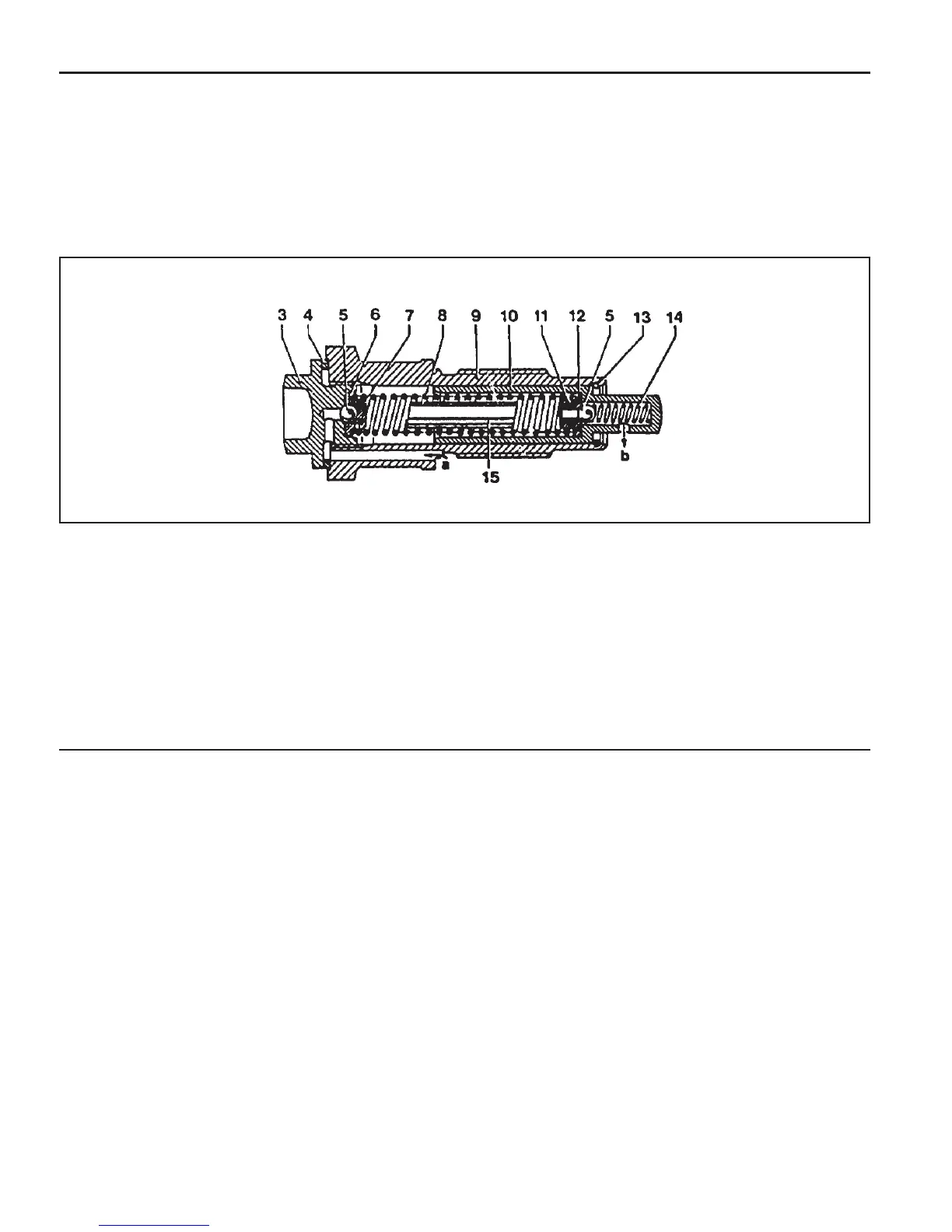

3 Screw Plug
4 Aluminum Gasket
5 Ball
6 Ball Guide
7 Compression Spring
8 Compression Spring
9 Housing
10 Thrust Pin
11 Valve Disc
12 O-Ring
13 Snap Ring
14 Compression Spring
15 Filler
A Feed Bore from Cylinder Head
B To Oil Pan
To Next Page
