OM600 ENGINE MECHANICAL 1B3-161

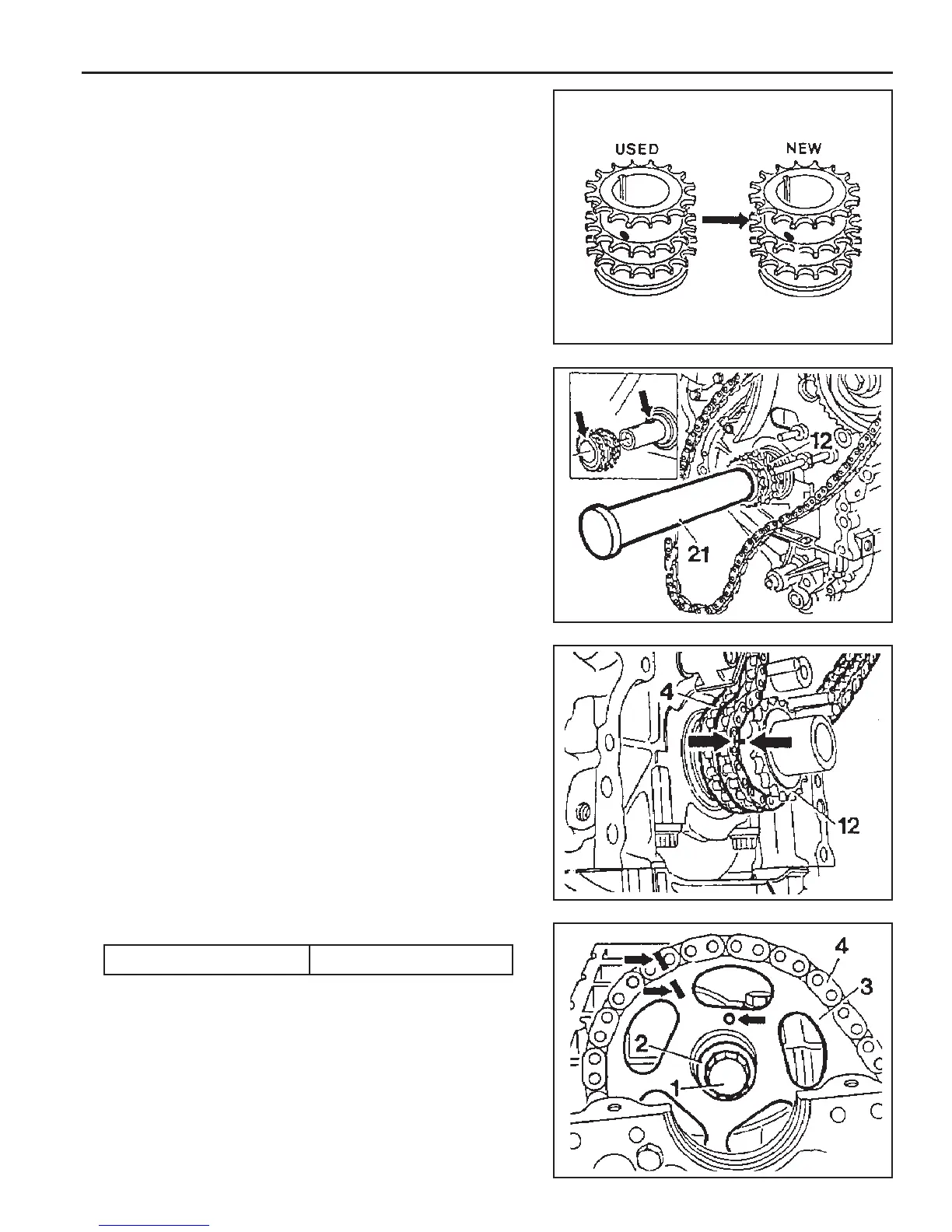

Installation Procedure
1. Put the same alignment mark on the new crankshaft
sprocket as in the old sprocket.
Notice
Check the timing chain, camshaft sprocket, injection pump
timing sprocket, oil pump chain and oil pump sprocket for
wear and replace if necessary.
2. Install the new crankshaft sprocket (12) by using a drift (21).
Notice
Align the groove of sprocket and woodruff key (arrow)
exactly.
Drift 116 589 07 15 00
3. Fit the timing chain (4) on the crankshaft sprocket (12).
Notice
Align the alignment marks (arrow) on the chain and sprocket.
4. Install the camshaft sprocket (3).
Tightening Torque 25 Nm + 90°
Notice
Pay attention on the alignment marks and dowel pin (arrow).
