OM600 ENGINE MECHANICAL 1B3-27

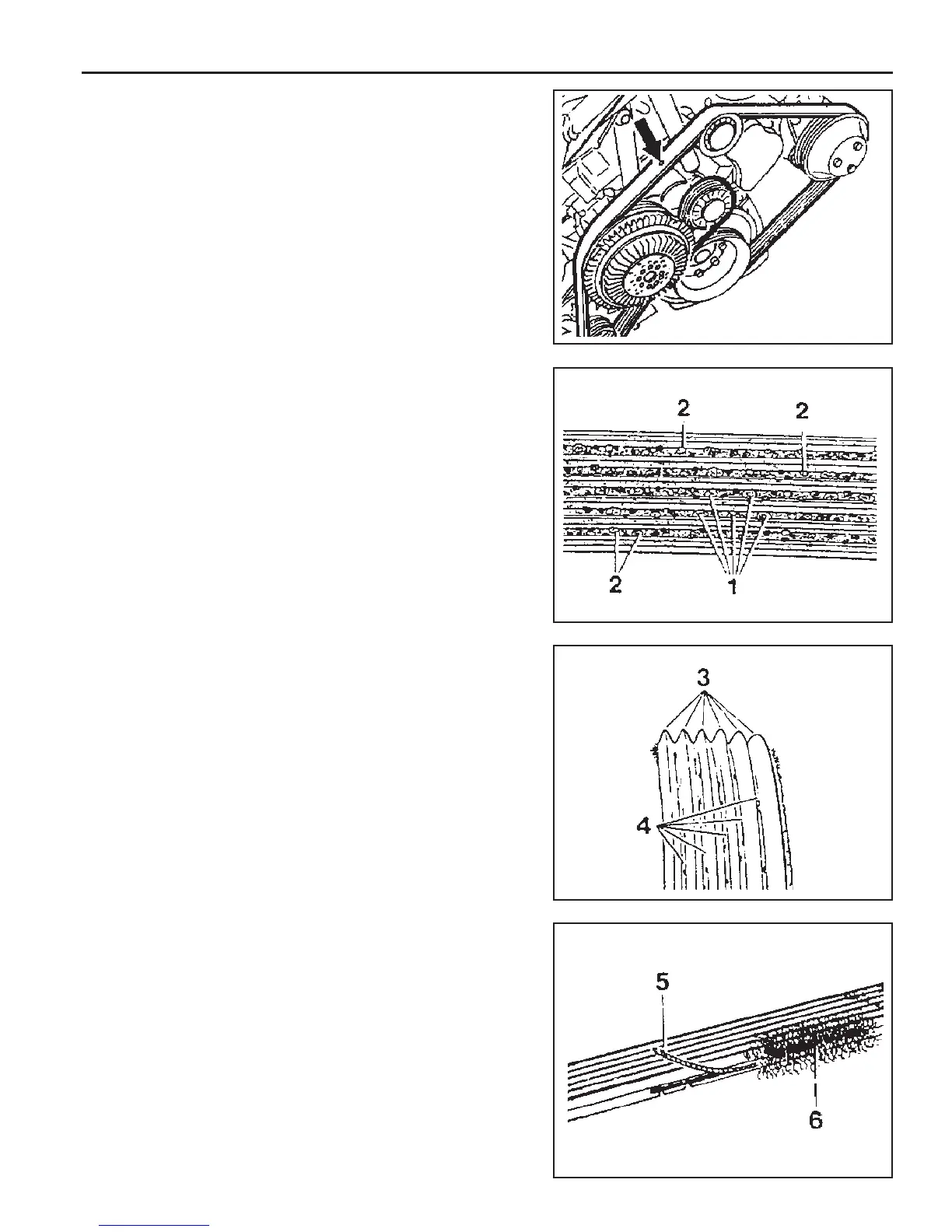

Inspection Procedure
l Mark poly V-belt at a clearly visible point with chalk.
l Rotate the engine and check the belt.
Notice
If one of the following types of damage is found, replace
the belt.
1. Rubber lumps in the base of rips.
2. Dirt or grit ingrained.
5. Cord torn out at the side.
6. Outer cords frayed.
3. Pointed rips.
4. Belt cord visible in the base of rips.
