1B3-30 OM600 ENGINE MECHANICAL
Tools Required

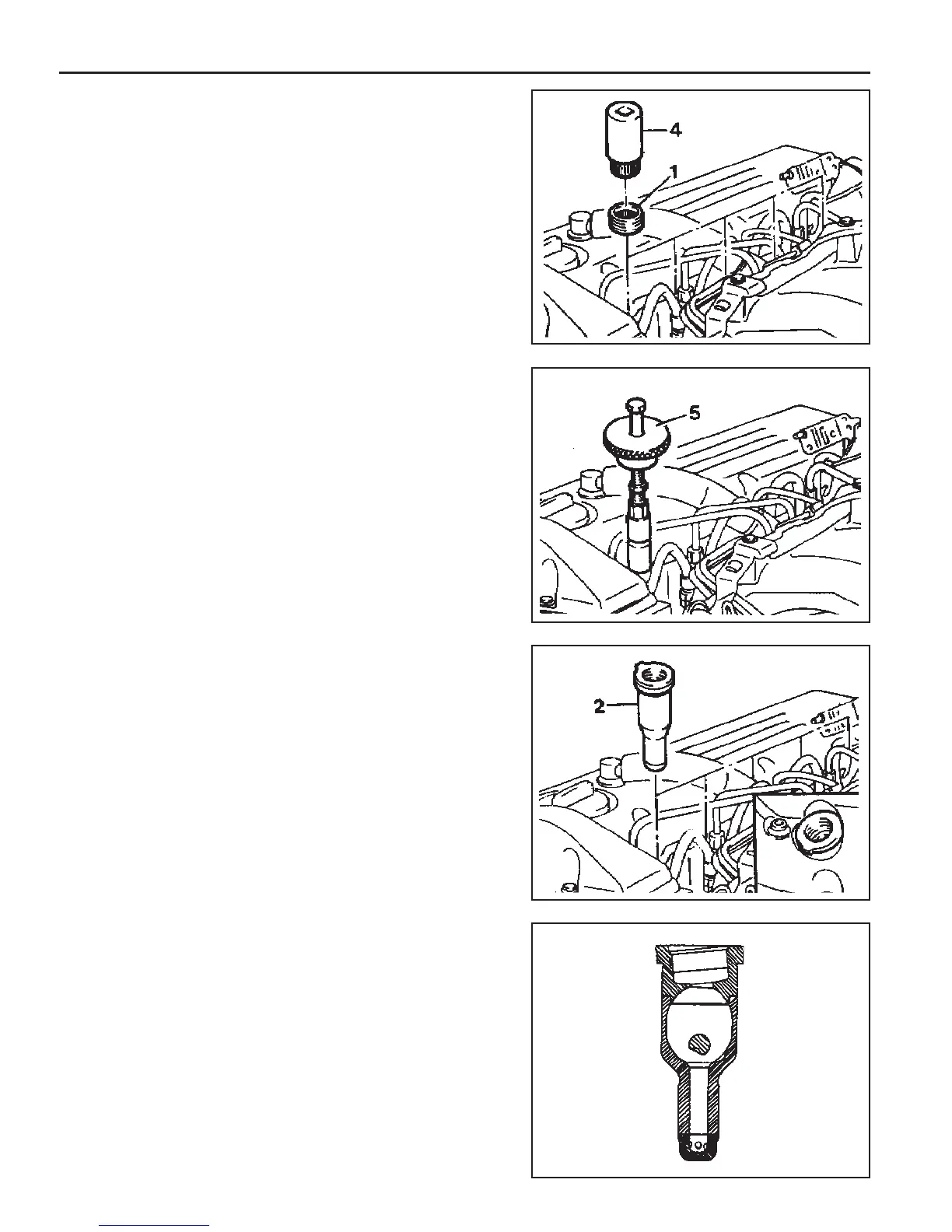

2. Install the sliding hammer into the prechamber.
Sliding Hammer 667 589 03 63 00
Removal & Installation Procedure
1. Using the serration wrench (4), remove the threaded ring
(1).
Serration Wrench 603 589 00 09 00
3. Remove the perchamber (2).
Notice
After removing the prechamber, cover over the bores with
clean rag.
603 589 00 09 00 Serration Wrench
667 589 03 63 00 Sliding Hammer
4. Inspect the prechamber.
Notice
If the prechamber seats in the cylinder head are leaking or
if the prechambers are replaced, the sealing surfaces in
the cylinder head must be remachined.
To Next Page
