Software description
External Control window
ALC Settings
5 Enable button
On/off switch for the Automatic Level Control (ALC).
6 ALC Start field
The maximum voltage at the ALC input is displayed, which is supposed to be
admissible for the used external linear amplifier. If the voltage at ALC input is higher
than this value, then the transceivers output power won’t be reduced.
7 ALC End field
The minimum voltage at the ALC input, which will cause the transceivers zero
output power.
Note: The value in the ALC Start field should be higher than the value in the ALC End field. For
example: ALC Start = -1 V, ALC End = -8 V.
ACC Settings
8 Enable button
On/off switch of the control for external devices connected to the ACC socket at
the rear panel.
9 ACC table
In the table the status of all 8 lines for each frequency range can be set.
Dash – the line is switched off.
RX – the line is switched on during reception.
TX – the line is switched on during transmissions.
Both – the line is switched on permanently.

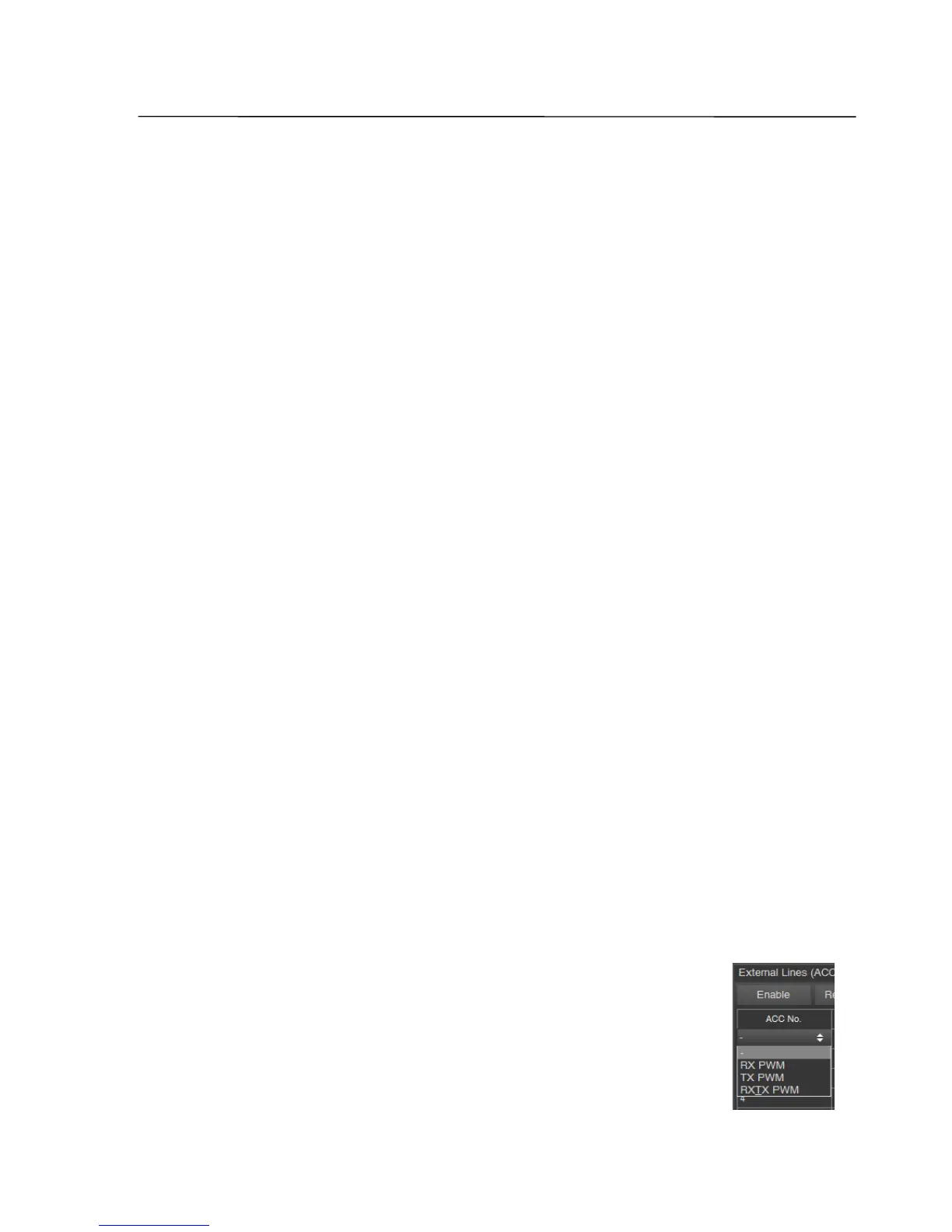

It is also possible to set pulse width modulation (PWM) on any line. To do this,
click on the cell with the number of the line and select the PWM mode in the list
that appears. 4 modes of PWM are implemented.
Dash - PWM is not used on this line, its state can be set up using
the table.
RX PWM - PWM will be turned on in the receive mode.
TX PWM – PWM will be turned on in the transmit mode.
RX&TX PWM – PWM is turned on in both modes.
