Ssl DD889B - Wiring Diagram

-4-

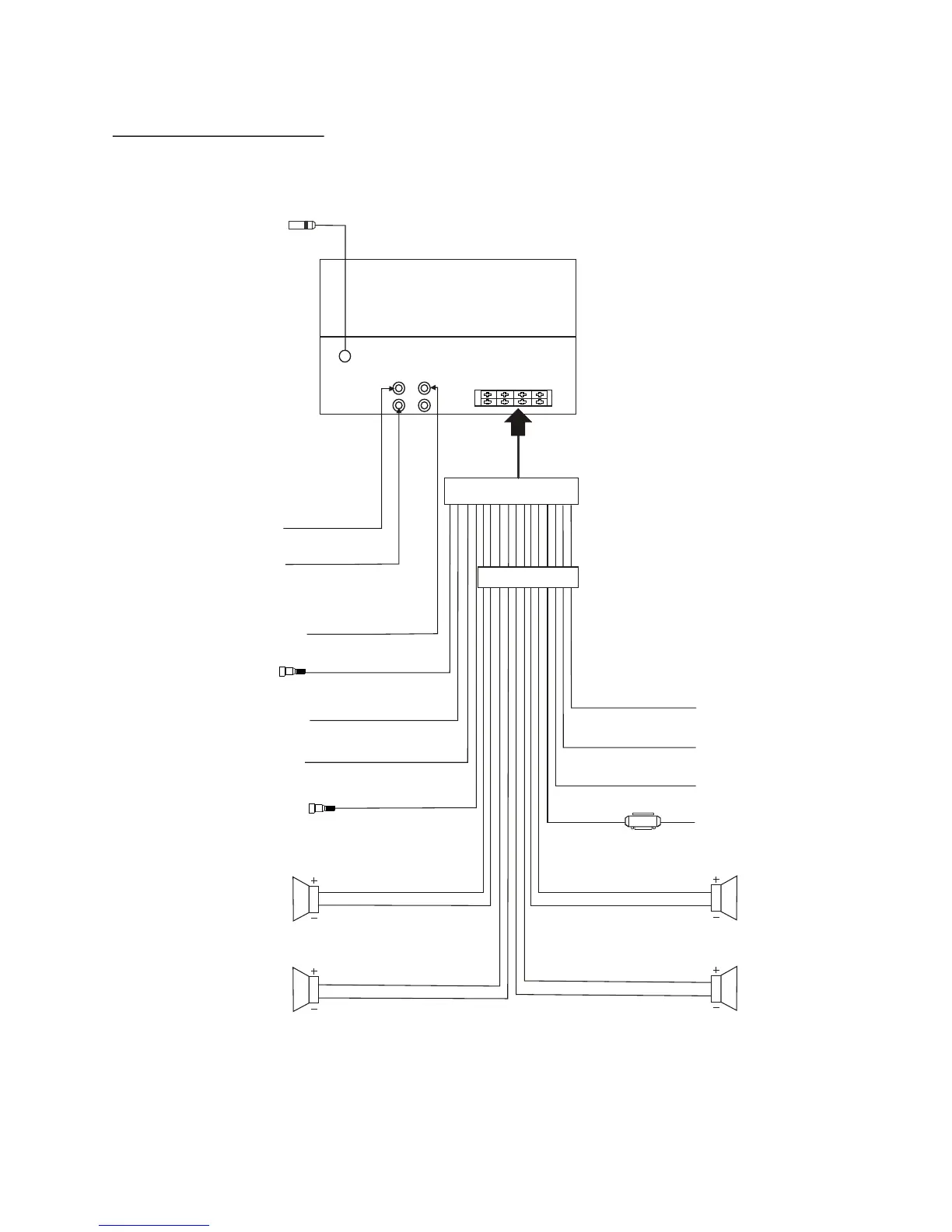

Wiring diagram
IGN ITION SWI TCH
RED
WHITE
WHITE/BLACK
GREY
GREY/BLACK
GREEN
GREEN/BLACK
VIOLET
VIOLET/BLACK
YELLOW
CONSTANT 12 VOLTS
BLACK
GROUND(B-)
BLUE
AUTO ANTENNA
Front Left
BROWN
(B-) PARKING BRAKE
PINK
RADIO ANTENNA
(B+) 12V
REAR CAMERA SWITCH
REAR CAMERA INPUT
YELLOW
GREY
SUB WOOFER
Front Output White(L)
VIDEO OUTPUT (brown)
FUSE
ISO CONNECTOR
Front Output Red(R)
Rear Left
Front Right
Rear Right
NOTE:
1. Must use 4 ohm speakers.
2. After connecting parking brake input line, video on screen of control panel
will be displayed only after
3. Before finishing wiring, do not attach control panel onto chassis.
applying parking brake.
