29
•

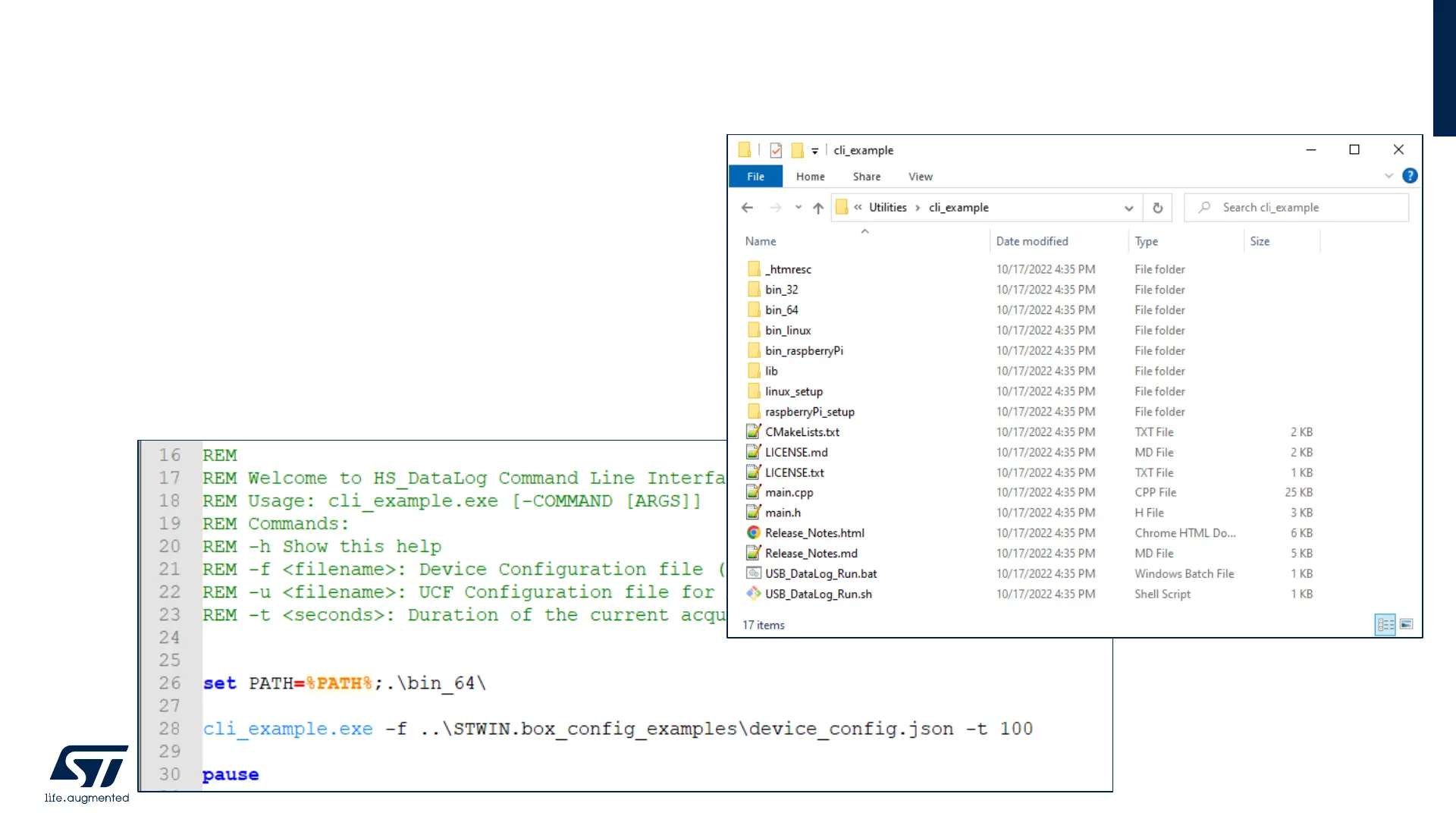

The command line examp
le is in the Utilities folder
. It
is availab
le for W
indo
w
s
32 and 64 bit, Linu
x and
Raspbe
rryPi
3 platforms.
•
USB_DataLog
_Run.bat and USB_DataLog_Run
.sh
scripts provide a read
y-
to
-use
example.
•
If needed
, the application can receive as
parameters: timeout (
-t
), device configu
ration file (
-f
)
and UCF file for Mac
hine Learn
ing Core or Intellige
nt
Sensor Processing Unit (
-u
).
cli_example
overview
28
30
Table of Contents
Slide 1: Quick Start Guide STM32Cube function pack for high speed datalogging and ultrasound processing (FP-SNS-DATALOG2)
1
Slide 2: Agenda
2
Slide 3: 1 - Hardware and Software overview
3
Slide 4: STWIN.box development kit - STEVAL-STWINBX1 Hardware Overview
4
Slide 5: STWIN.box development kit - STEVAL-STWINBX1 Hardware Overview
5
Slide 6: STWIN.box Modular platform expansion - STEVAL-C34KAT1 Hardware Overview
6
Slide 7: STWIN.box Modular platform expansion - STEVAL-C34KAT2 Hardware Overview
7
Slide 8: STWIN development kit - STEVAL-STWINKT1B Hardware Overview
8
Slide 9: Sensortile.box PRO development kit - STEVAL-MKBOXPRO Hardware Overview
9
Slide 10: Discovery kit for IoT node - B-U585I-IOT02A Hardware Overview
10
Slide 11: Motion and microphone expansion board - X-NUCLEO-IKS02A1 Hardware Overview
11
Slide 12: FP-SNS-DATALOG2 Software Overview
12
Slide 13: DATALOG2 demonstration
13
Slide 14: DATALOG2 vs DATALOG1
14
Slide 15: 2 - Setup & Demo Examples
15
Slide 16: HW prerequisites
16
Slide 17: HW prerequisites
17
Slide 18: HW prerequisites
18
Slide 19: Software and other prerequisites
19
Slide 20: Samples demonstrations
20
Slide 21: Firmware Update – FFOTA for STWIN.box
21
Slide 22: Firmware Update – FFOTA for STWIN.box and Sensortile.box PRO
22
Slide 23: Firmware Update – FFOTA for STWIN.box and Sensortile.box PRO
23
Slide 24: Firmware Update – FFOTA for STWIN.box and Sensortile.box PRO
24
Slide 25: Firmware Update – ST-LINK
25
Slide 26: Firmware Update – USB
26
Slide 27: 2.1 – DATALOG2 Demonstration
27
Slide 28: 2.1.1 - USB sensor data streaming Command Line Interface
28
Slide 29: cli_example overview
29
Slide 30: Modify device and sensors configuration
30
Slide 31: Run the application
31
Slide 32: 2.1.2 - USB sensor data streaming Real Time Plot
32
Slide 33: Execute hsdatalog_GUI.py
33
Slide 34: hsdatalog_GUI.py
34
Slide 35: hsdatalog_GUI.py
35
Slide 36: hsdatalog_GUI.py
36
Slide 37: 2.1.3 – Data logging on SD card, configuration with BLESensor App *
37
Slide 38: ST BLESensor App: DATALOG2 tab
38
Slide 39: Configure MLC
39
Slide 40: Acquisition settings and control
40
Slide 41: ST BLESensClassic App: DATALOG2 tab
41
Slide 42: 2.1.4 – Data logging on SD card, standalone mode
42
Slide 43: Start an acquisition in standalone mode
43
Slide 44: Automode
44
Slide 45: Automode
45
Slide 46: 2.2 – HSDPython_SDK
46
Slide 47: HSDPython_SDK
47
Slide 48: HSDPython_SDK
48
Slide 49: HSDPython_SDK installation
49
Slide 50: HSDPython_SDK scripts
50
Slide 51: HSDPython_SDK scripts
51
Slide 52: 2.3 – UltrasoundFFT for STWIN.box
52
Slide 53: UltrasoundFFT on STWINKT1B
53
Slide 54: FP-SNS-DATALOG2 - UltrasoundFFT
54
Slide 55: FP-SNS-DATALOG2 - UltrasoundFFT
55
Slide 56: 3 - Documents & Related Resources
56
Slide 57: Documents & Related Resources
57
Slide 58: Documents & Related Resources
58
Slide 59: 4 - STM32 Open Development Environment: Overview
59
Slide 60: STM32 ODE Ecosystem
60
Slide 61: STM32 Open Development Environment: all that you need
61
Slide 62
62
