STWIN development kit - STEVAL-STWINKT1B
Hardware Overview
STWIN - SensorTile Wireless Industrial Node

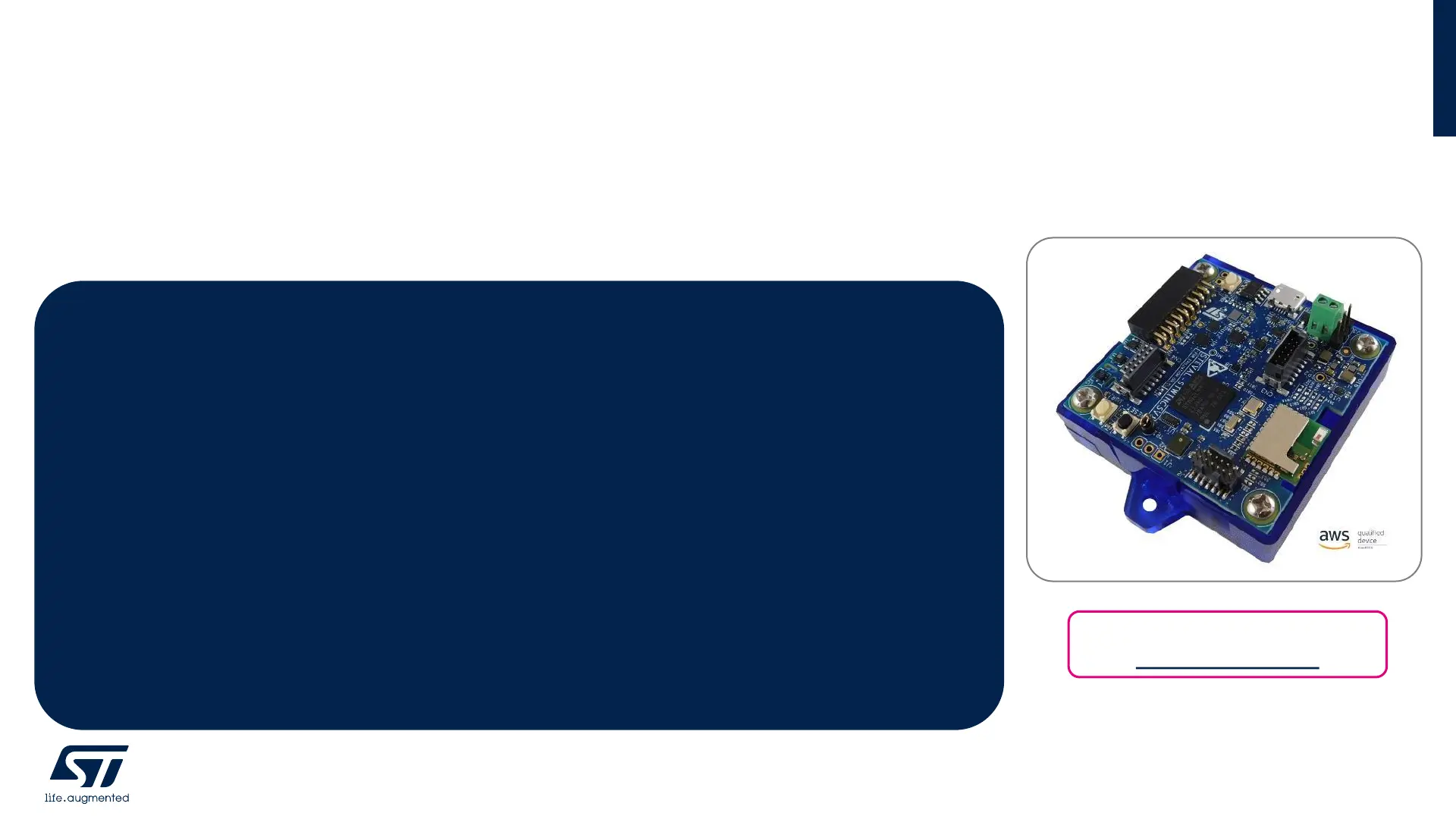

The STWIN (STEVAL-STWINKT1B) is a development kit and reference design that simplifies prototyping and testing
of advanced industrial IoT applications such as condition monitoring and predictive maintenance. The kit supports
BLE wireless connectivity through an on-board module and Wi-Fi connectivity through a special plugin expansion
board (STEVAL-STWINWFV1), wired RS485 and USB OTG connectivity.
Key Features
• Multi-sensing wireless platform implementing vibration monitoring and ultrasound detection
• Updated version of STEVAL-STWINKT1, now including STSAFE-A110 populated, BlueNRG-M2S module and
IMP23ABSU MEMS microphone
• Ultra-low-power ARM Cortex-M4 MCU at 120 MHz with FPU, 2048 kbytes Flash memory (STM32L4R9)
• Micro SD Card slot for standalone data logging applications
• Option to implement Authentication and Brand protection secure solution with STSAFE-A110
• Wide range of industrial IoT sensors: ultra-wide bandwidth (up to 6 kHz), low-noise, 3-axis digital vibration sensor
(IIS3DWB), 3D accelerometer + 3D Gyro iNEMO inertial measurement unit (ISM330DHCX) with machine learning core,
ultra-low-power high performance MEMS motion sensor (IIS2DH), ultra-low-power 3-axis magnetometer (IIS2MDC),
digital absolute pressure sensor (LPS22HH), relative humidity and temperature sensor (HTS221), low-voltage digital local
temperature sensor (STTS751), industrial grade digital MEMS microphone (IMP34DT05), analog MEMS microphone with
frequency response up to 80 kHz (IMP23ABSU)
• Modular architecture, expandable via on-board connectors: STMOD+ and 40-pin flex general purpose expansions, 12-pin
male plug for connectivity expansions, 12-pin female plug for sensing expansions
• Other kit components: Li-Po battery 480 mAh, STLINK-V3MINI debugger with programming cable, Plastic box
Latest info available at
www.st.com/stwin
