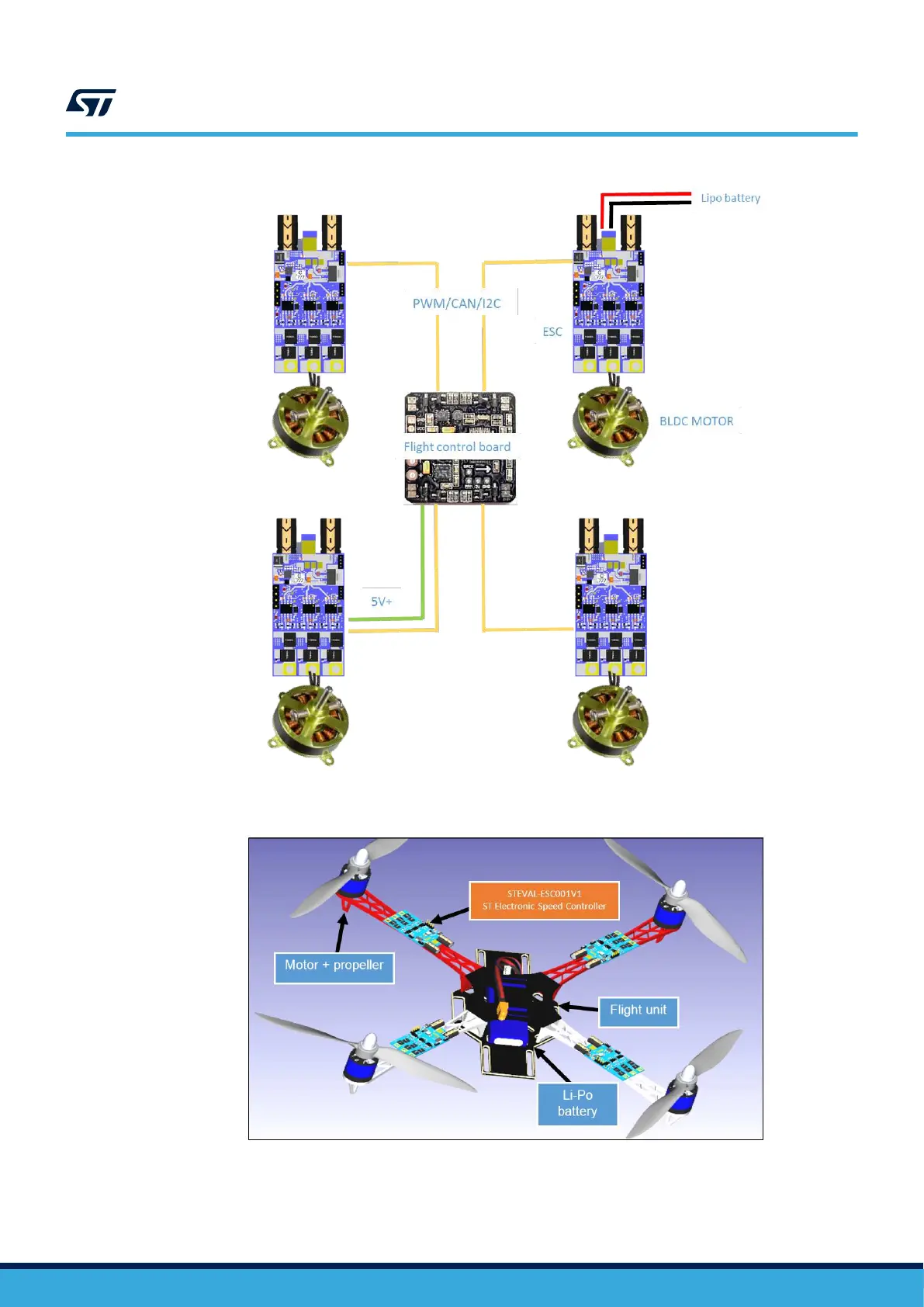

Figure 3. System structure overview
Figure 4. Typical quadcopter architecture
The on-board I²C, UART, PWM and CAN communication protocols provide maximum flexibility and a DC-DC
converter with 5 V output connector (BEC) can supply an external control unit or sensor board.
