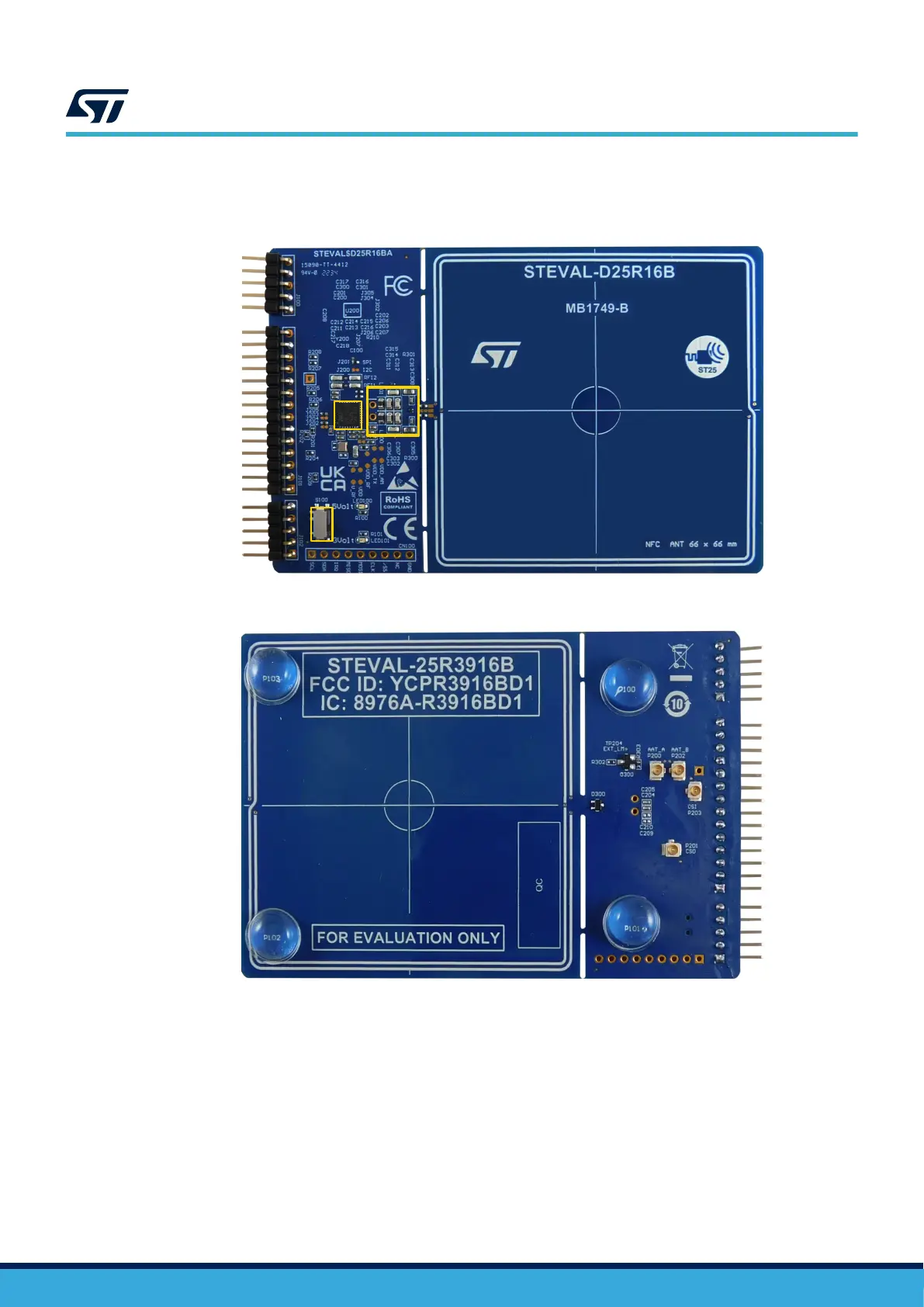

Figure 7. STEVAL-25R3916B expansion board layout (top view)
1. RF front-end area
2. ST25R3916B
3. RF powering selection switch (3.3 or 5 V)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
Figure 8. STEVAL-25R3916B expansion board layout (bottom view)
2.2.1 Antenna and matching network components
This board contains the matching network and the automatic antenna tuning capacitors based on varicap.
