ST STM32 Nucleo-64-P User Manual

UM2206 Rev 3 37/55
UM2206 Connectors
54
10.3 ST morpho connectors CN5 and CN6
The ST morpho connectors CN5 and CN6 are male pin headers accessible on both sides of
the STM32 Nucleo-64-P board (see
Figure 17). All signals and power pins, except
V
DD_CORE
1.2 V of the STM32, are available on the ST morpho connectors. These
connectors can also be probed by an oscilloscope, logical analyzer or voltmeter.

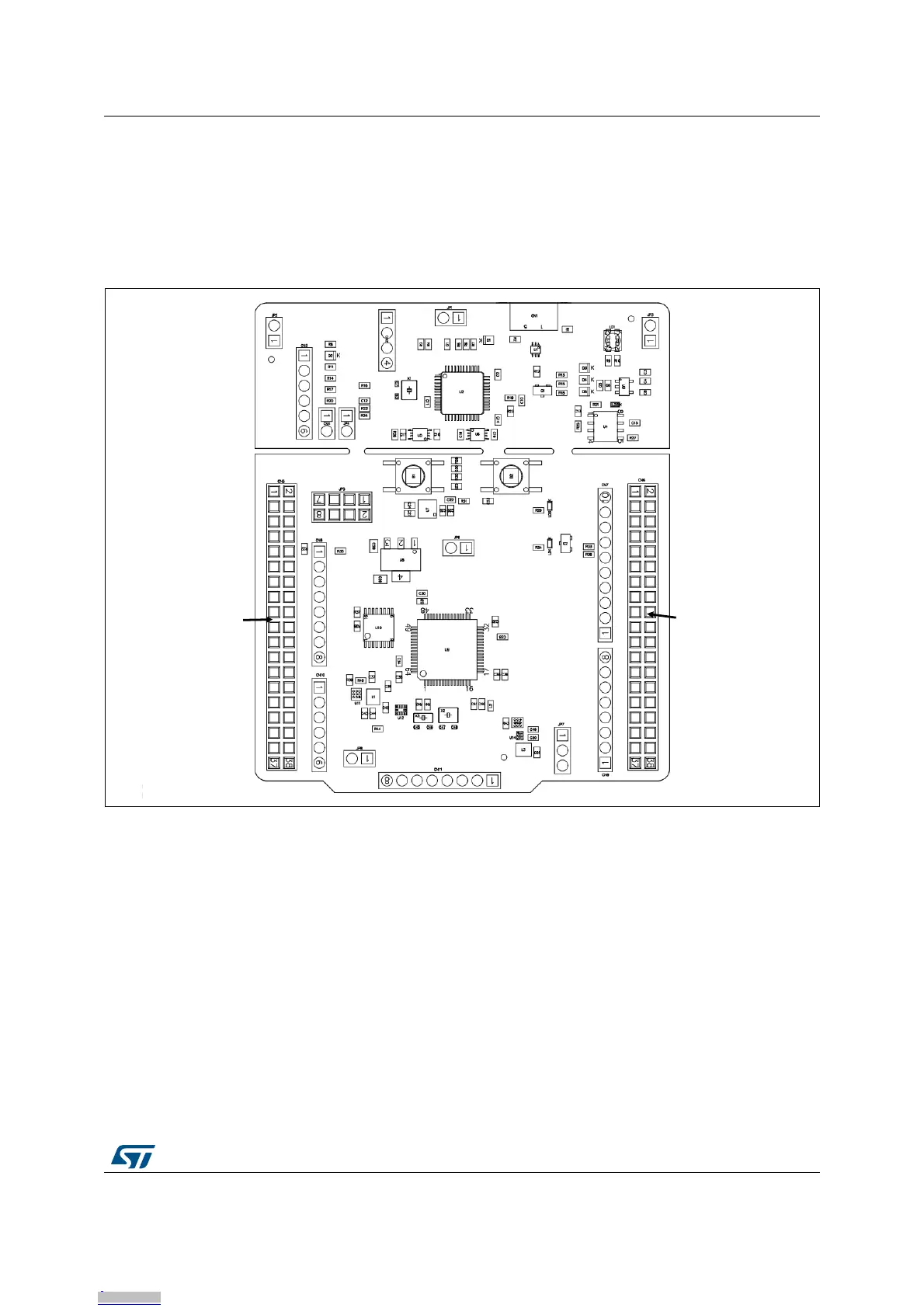

Figure 17. ST morpho connector
The related pinout and the MCU assignment for the ST morpho connector are listed in
Figure 18.
67PRUSKR:
CN6
67PRUSKR: CN5
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

ST STM32 Nucleo-64-P Specifications

General

Ethernet	No
Microcontroller	STM32
Core	ARM Cortex-M
Operating Voltage	3.3V
Input Voltage	7-12V
Communication Interfaces	SPI, I2C
SRAM	Varies by STM32 variant
Clock Speed	Varies by STM32 variant
USB	Yes
Arduino Compatibility	Yes
ST Morpho Headers	Yes
On-board Debugger	ST-LINK/V2-1
USB Connector	Micro-USB
Extension Headers	Arduino Uno Revision 3 connectivity, ST morpho extension pin headers for full access to all STM32 I/Os
