UM2324 Rev 2 31/44
UM2324 Connectors
43
7.3 ST morpho connectors CN7 and CN10
The ST morpho connectors CN7 and CN10 are male pin headers accessible on both sides
of the STM32 NUCLEO-G070RB or NUCLEO-G071RB board (see
Figure 17). All signals
and power pins, except VDD_CORE 1.2 V of the STM32, are available on the ST morpho
connectors. These connectors can also be probed by an oscilloscope, logical analyzer or
voltmeter.

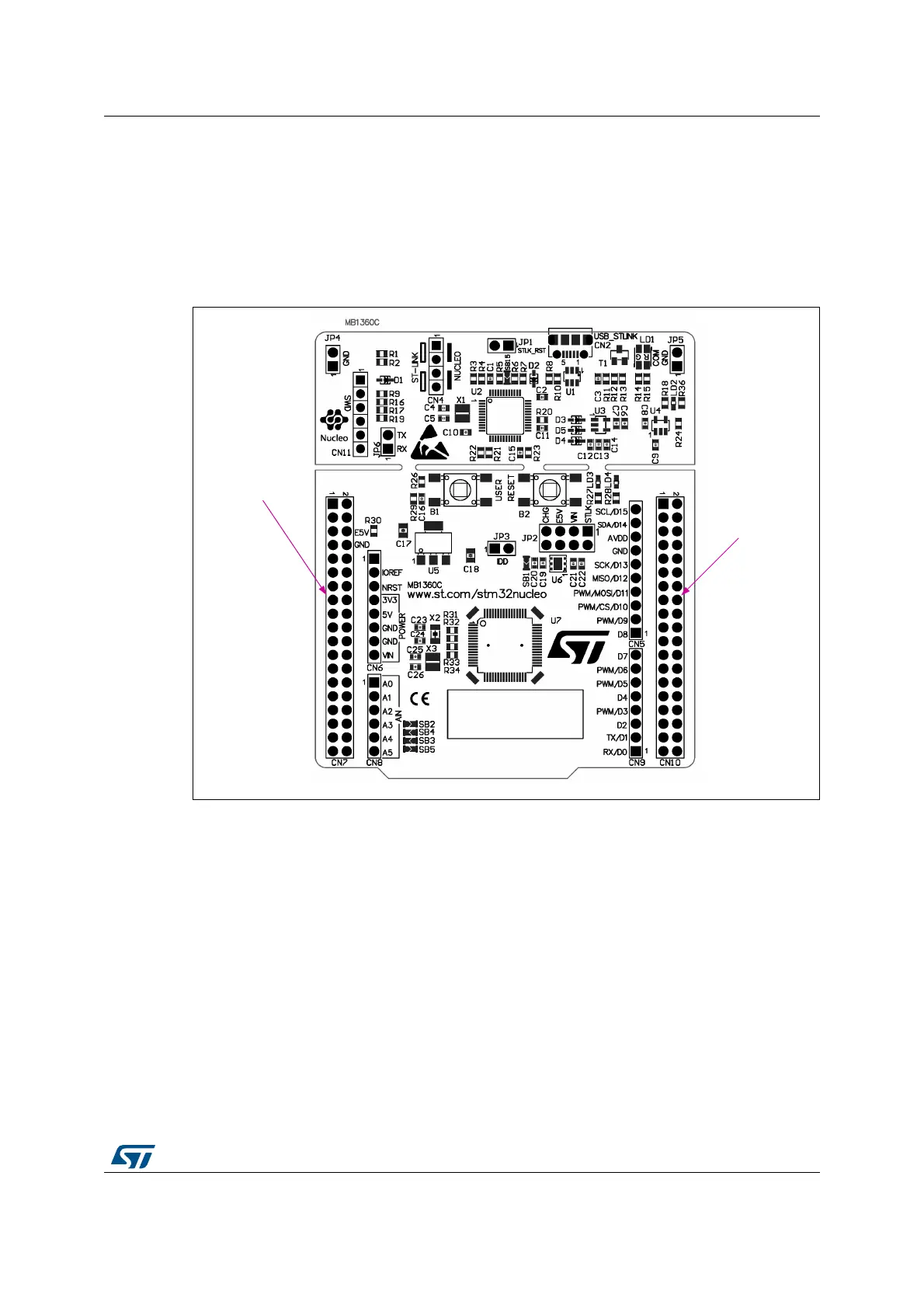

Figure 17. ST morpho connectors
06Y9
&1
0RUSKRFRQQHFWRU
&1
0RUSKRFRQQHFWRU

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the ST STM32 Nucleo-64 and is the answer not in the manual?

ST STM32 Nucleo-64 Specifications

General IconGeneral
Operating Voltage3.3 V
Arduino CompatibilityYes
Arduino Uno V3 Connectivity SupportYes
ST Morpho HeadersYes
USBYes
mbed EnabledYes
MicrocontrollerSTM32
PackageLQFP
CoreARM Cortex-M
Input Voltage7V to 12V (recommended)
Digital I/O PinsVaries by model
Analog Input PinsVaries by model
Flash MemoryVaries by model
SRAMVaries by model
Clock SpeedVaries by model
Power SupplyUSB or external power source
Integrated Debugger/ProgrammerST-LINK/V2-1
On-board debuggerYes
CANVaries by model
EthernetVaries by model
