ST STM32F0DISCOVERY User Manual

UM1525 Hardware and layout
Doc ID 022910 Rev 2 15/41
4.2.1 Using ST-LINK/V2 to program/debug the STM32 F0 on board
To program the STM32 F0 on board, simply plug in the two jumpers on CN2, as shown in
Figure 8 in red, but do not use the CN3 connector as that could disturb communication with
the STM32F051R8T6 of the STM32F0DISCOVERY.

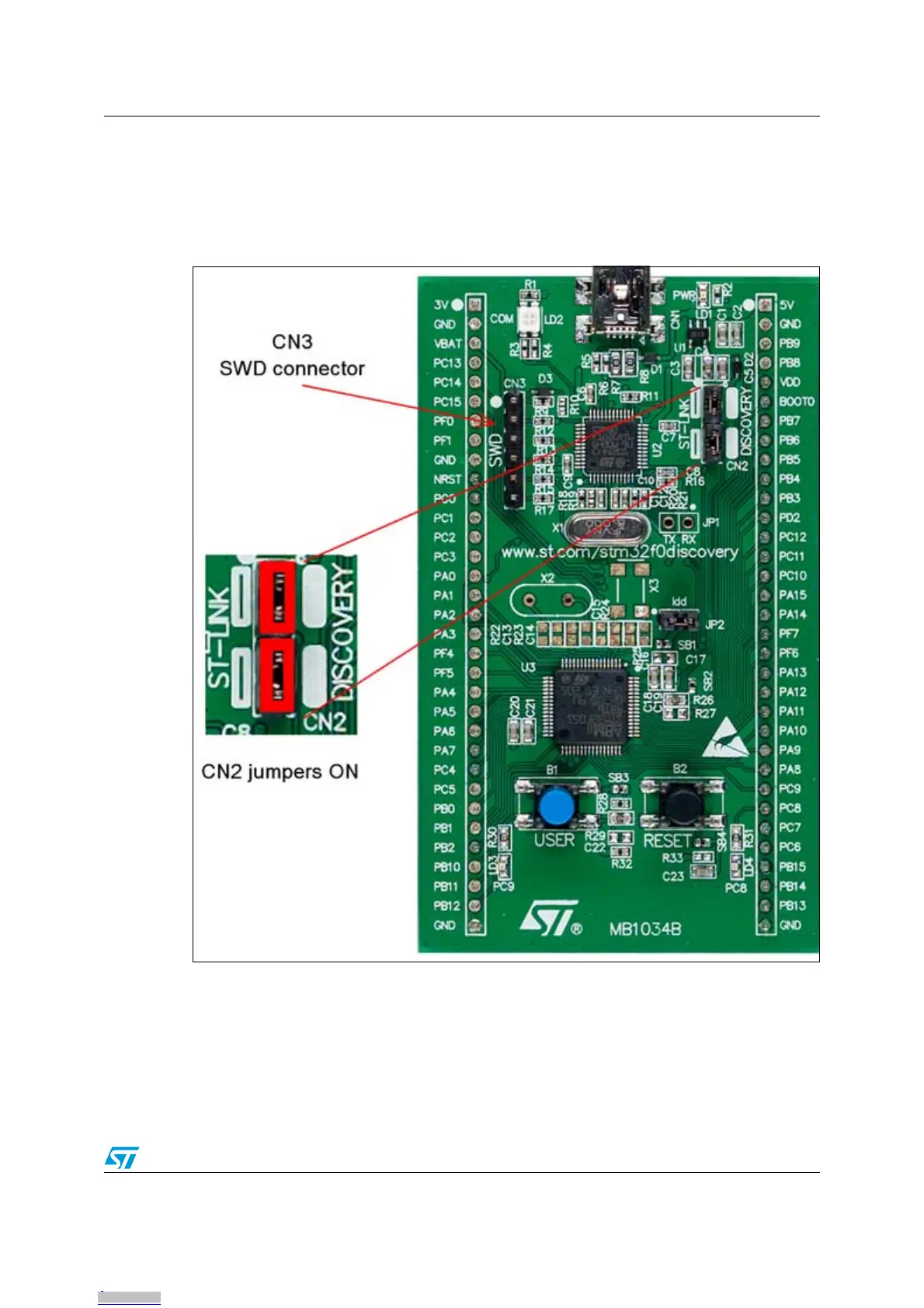

Figure 8. STM32F0DISCOVERY connections image
