ST STM32F0DISCOVERY

UM1525 Connecting modules on the prototyping board
Doc ID 022910 Rev 2 31/41

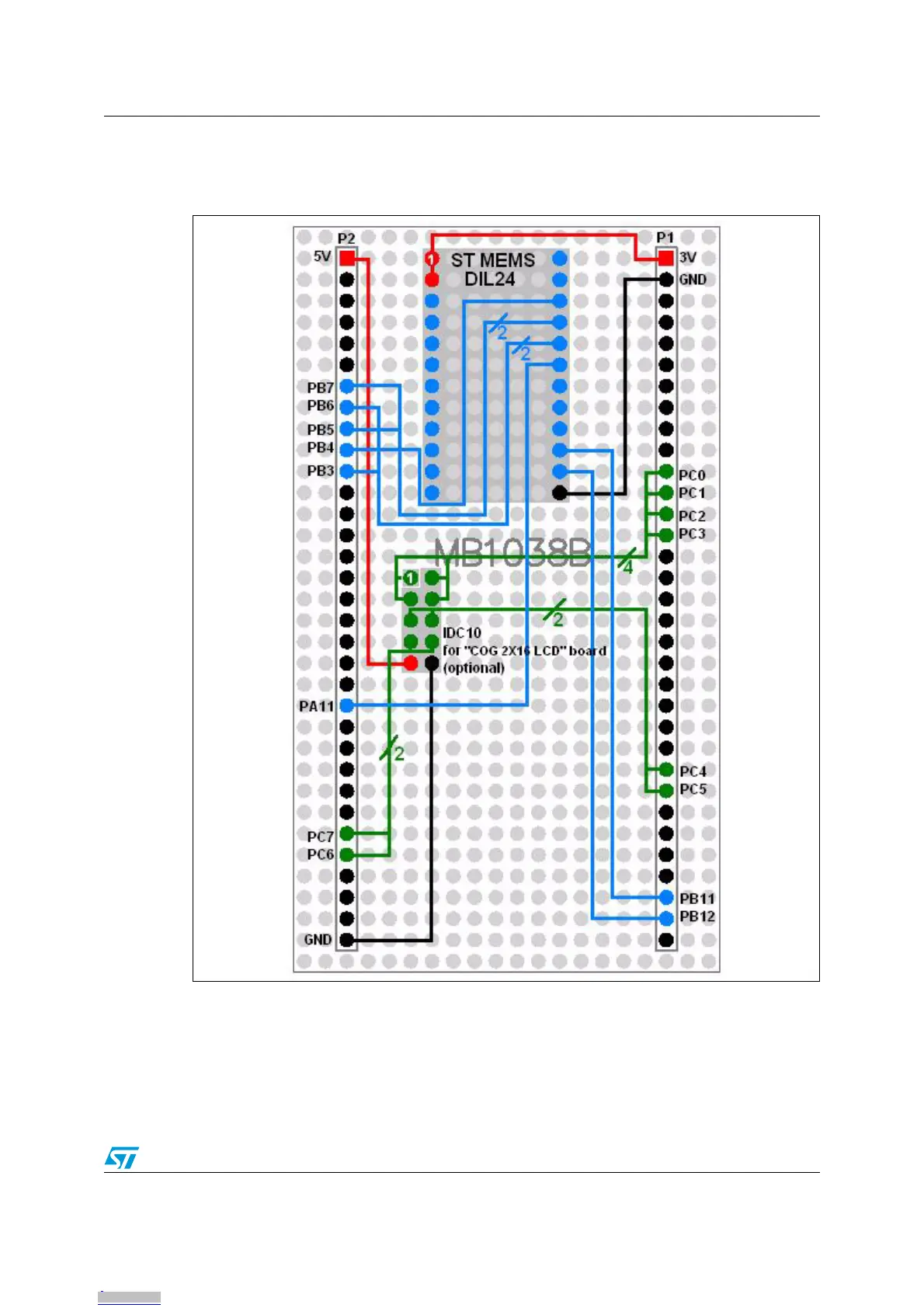

Figure 11 illustrates the connections between the STM32F0 Discovery and the DIL24
socket.
Figure 11.
DIL24 socket connections
