ST STM32F746G-DISCO User Manual

DocID027942 Rev 3 19/49
UM1907 Connectors
48

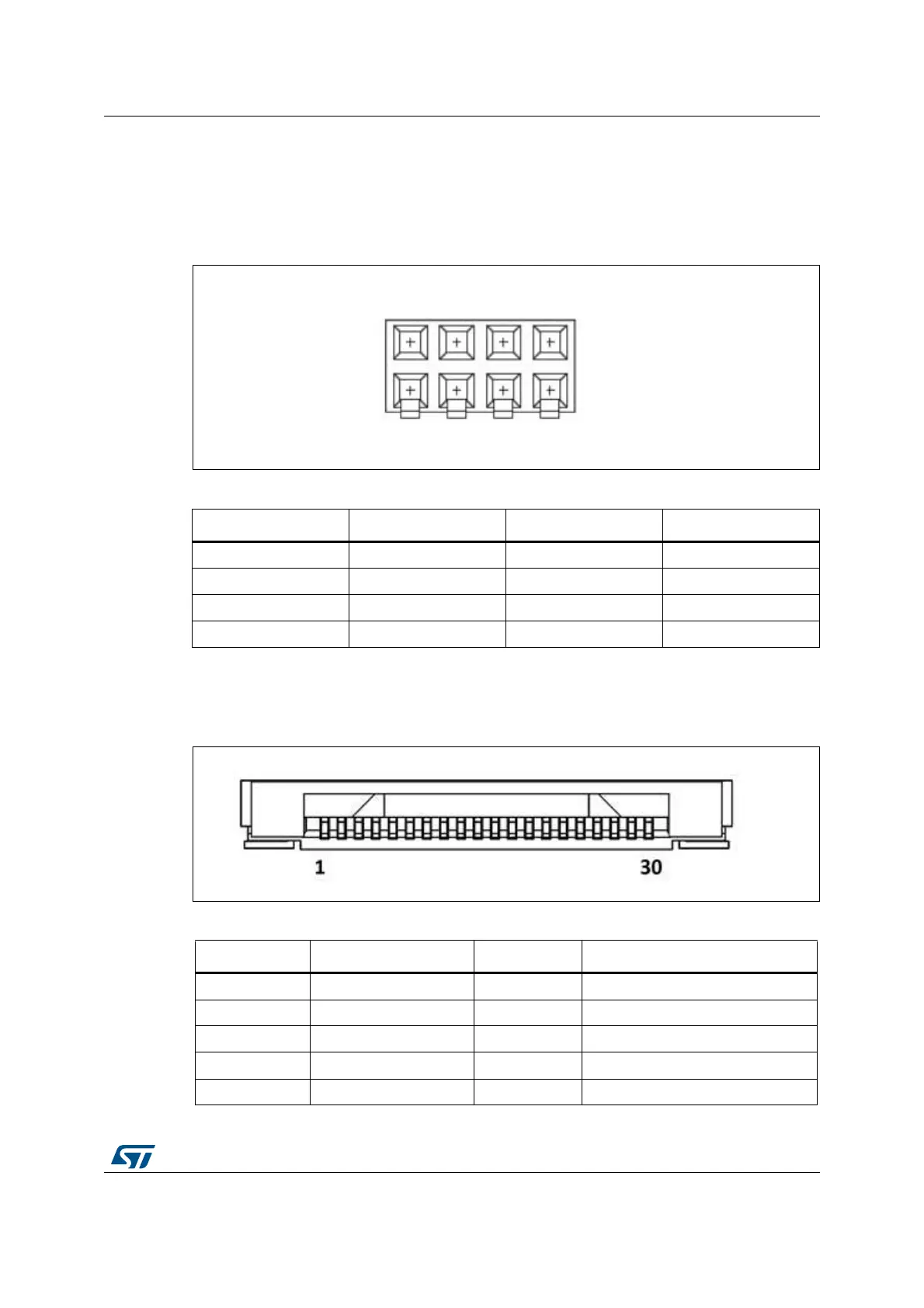

7 Connectors
7.1 I
2
C extension connector CN2
Figure 13. I
2
C extension connector CN2 (front view)
7.2 Camera module connector P1
Figure 14. Camera module connector P1 (front view)
Table 1. I
2
C extension connector CN2
Pin number Description Pin number Description
1 I2C_SDA (PB9) 5 +3V3
2NC6NC
3 I2C_SCL (PB8) 7 GND
4 RESET(PC10) 8 NC or 5V
069


Table 2. Camera module connector P1
Pin number Description Pin number Description
1GND16 GND
2 NC 17 DCMI_HSYNC
3NC18 NC
4 DCMI_D0 19 DCMI_VSYNC
5DCMI_D120 3V3
