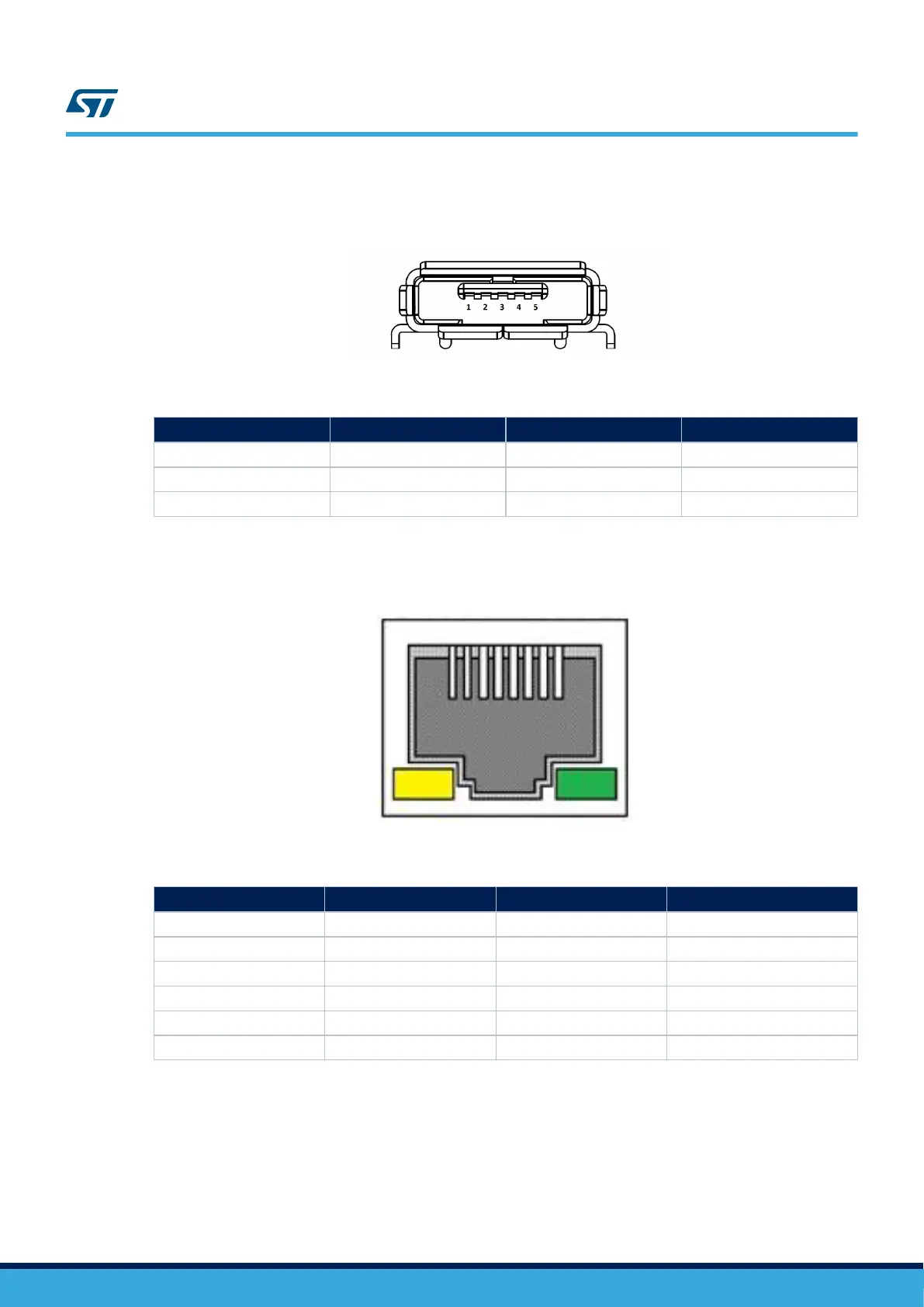

7.2 CN13 USB OTG_FS Micro-AB connector
Figure 7. CN13 USB OTG Micro-AB connector (front view)
Table 7. CN13 USB OTGFS micro-AB connector
Pin number Description Pin number Description
1 VBUS 4 ID
2 D- 5 GND
3 D+ - -
7.3 CN1 Ethernet RJ45 connector
Figure 8. CN1 Ethernet RJ45 connector (front view)
Table 8. CN1 Ethernet RJ45 connector
Pin number Description Pin number Description
1 TX+ 7 Nc7
2 TX- 8 Nc8
3 RX+ 9 K, yellow LED
4 Nc4 10 A, yellow LED
5 Nc5 11 K, green LED
6 RX- 12 A, green LED
UM2488
CN13 USB OTG_FS Micro-AB connector
UM2488 - Rev 4
page 17/55
