7.4 LCD RGB connector

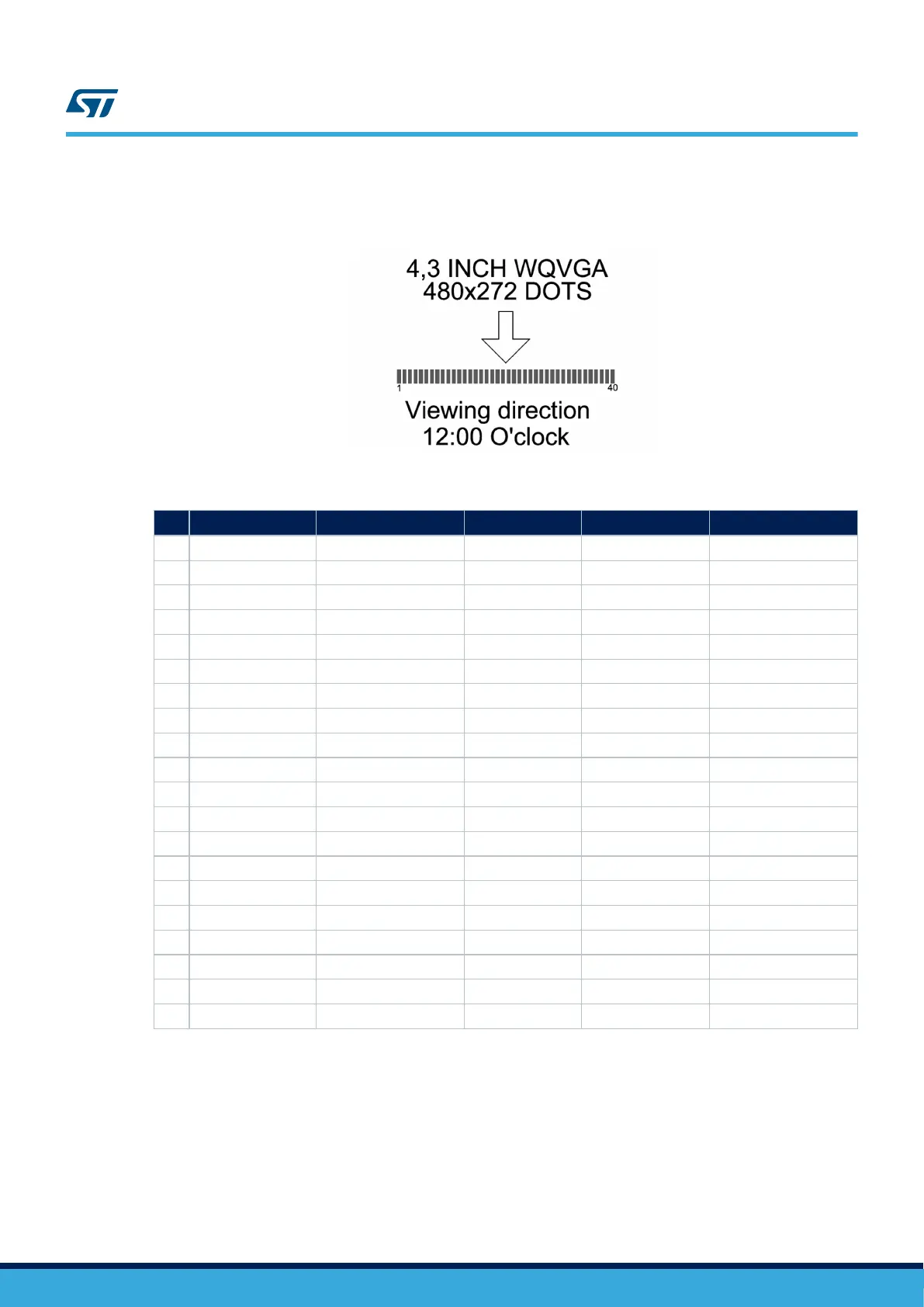

Figure 9. LCD RGB connector (footprint)
Table 9. LCD RGB connector
Description Pin connection Pin number Description Pin connection
1 LCD_BL_K - 2 LCD_BL_A -
3 GND - 4 VDD -
5 LCD_R0 PI15 6 LCD_R1 PJ0
7 LCD_R2 PJ1 8 LCD_R3 PH9
9 LCD_R4 PJ3 10 LCD_R5 PJ4
11 LCD_R6 PJ5 12 LCD_R7 PJ6
13 LCD_G0 PJ7 14 LCD_G1 PJ8
15 LCD_G2 PJ9 16 LCD_G3 PJ10
17 LCD_G4 PJ11 18 LCD_G5 PI0
19 LCD_G6 PI1 20 LCD_G7 PK2
21 LCD_B0 PJ12 22 LCD_B1 PJ13
23 LCD_B2 PJ14 24 LCD_B3 PJ15
25 LCD_B4 PK3 26 LCD_B5 PK4
27 LCD_B6 PK5 28 LCD_B7 PK6
29 GND - 30 LCD_CLK PI14
31 LCD_DISP PD7 32 LCD_HSYNC PI12
33 LCD_VSYNC PI9 34 LCD_DE PK7
35 GND - 36 GND -
37 LCD_RST - 38 LCD_INT PG2
39 LCD_SCL PD12 40 LCD_SDA PD13
UM2488
LCD RGB connector
UM2488 - Rev 4
page 18/55
