Table 30. USB OTG1_HS Micro-AB connector CN14
Pin number Description Pin number Description
1
V
BUS
4 ID
2 D- 5 GND
3 D+ - -
7.13 TFT LCD connector CN15
A TFT-color LCD with MIPI DSI interface board is mounted on CN15. Refer to Section 6.19 Display and input
devices for details.
7.14 USB OTG1_FS Micro-AB connector CN16

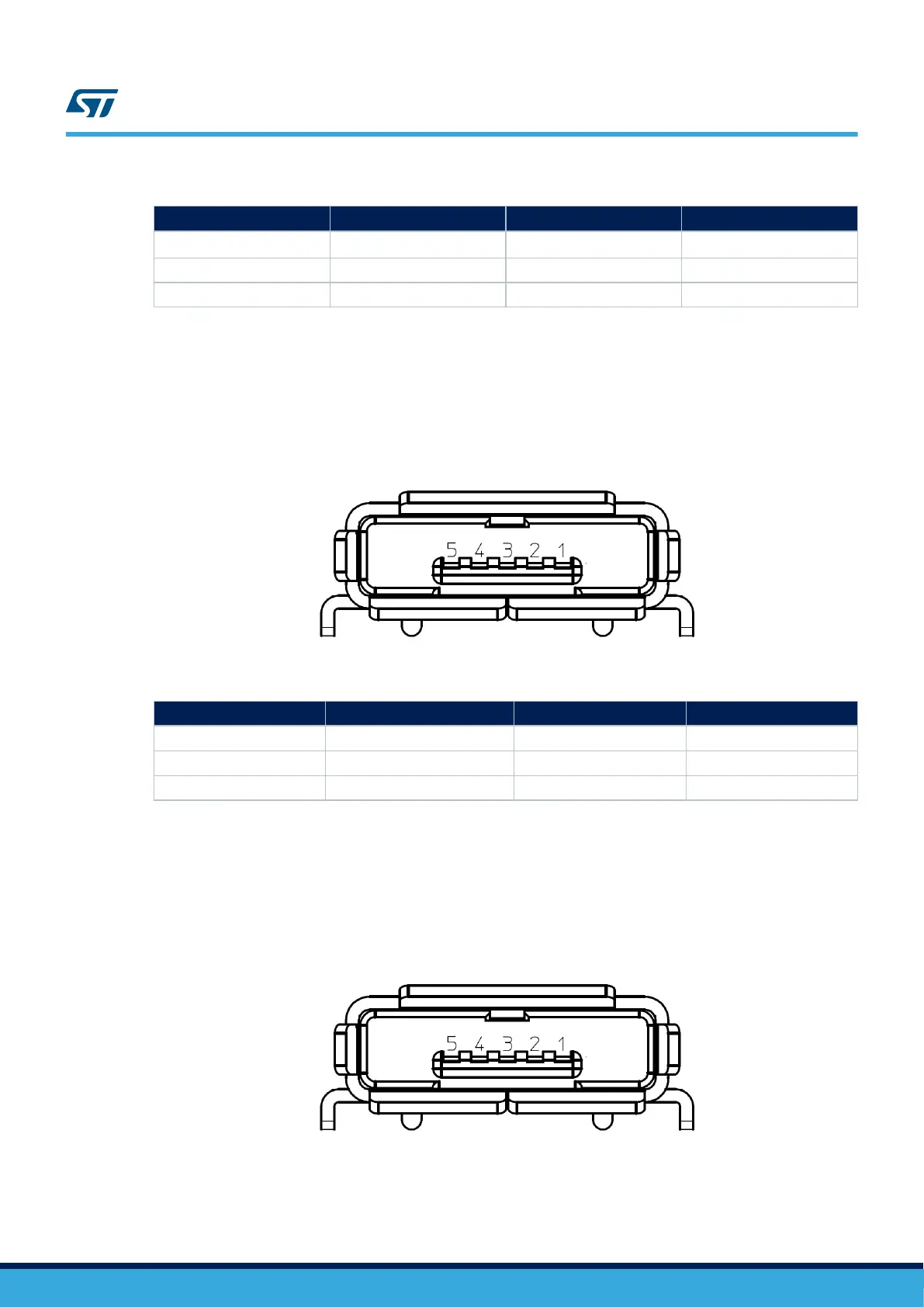

Figure 15. USB OTG1_FS Micro-AB connector CN16 (front view)
Table 31. USB OTG1_FS Micro-AB connector CN16
Pin number Description Pin number Description
1 VBUS (PB13) 4 ID (PB12)
2 D- (PB14) 5 GND
3 D+ (PB15) - -
7.15 Audio jack CN17
A 3.5 mm stereo audio jack CN17 is available on the STM32H7x7I-EVAL Evaluation board to support headset
(headphone and microphone integrated).
7.16 USB OTG2_FS Micro-AB connector CN18
Figure 16. USB OTG2_FS Micro-AB connector CN18 (front view)
UM2525
TFT LCD connector CN15
UM2525 - Rev 3
page 33/69
