ST STM32H757I-EVAL User Manual

6.2 Ordering information
Figure 4 and Table 4 show the mechanical dimensions for the MB1246 board with the 5.7” LCD daughterboard.

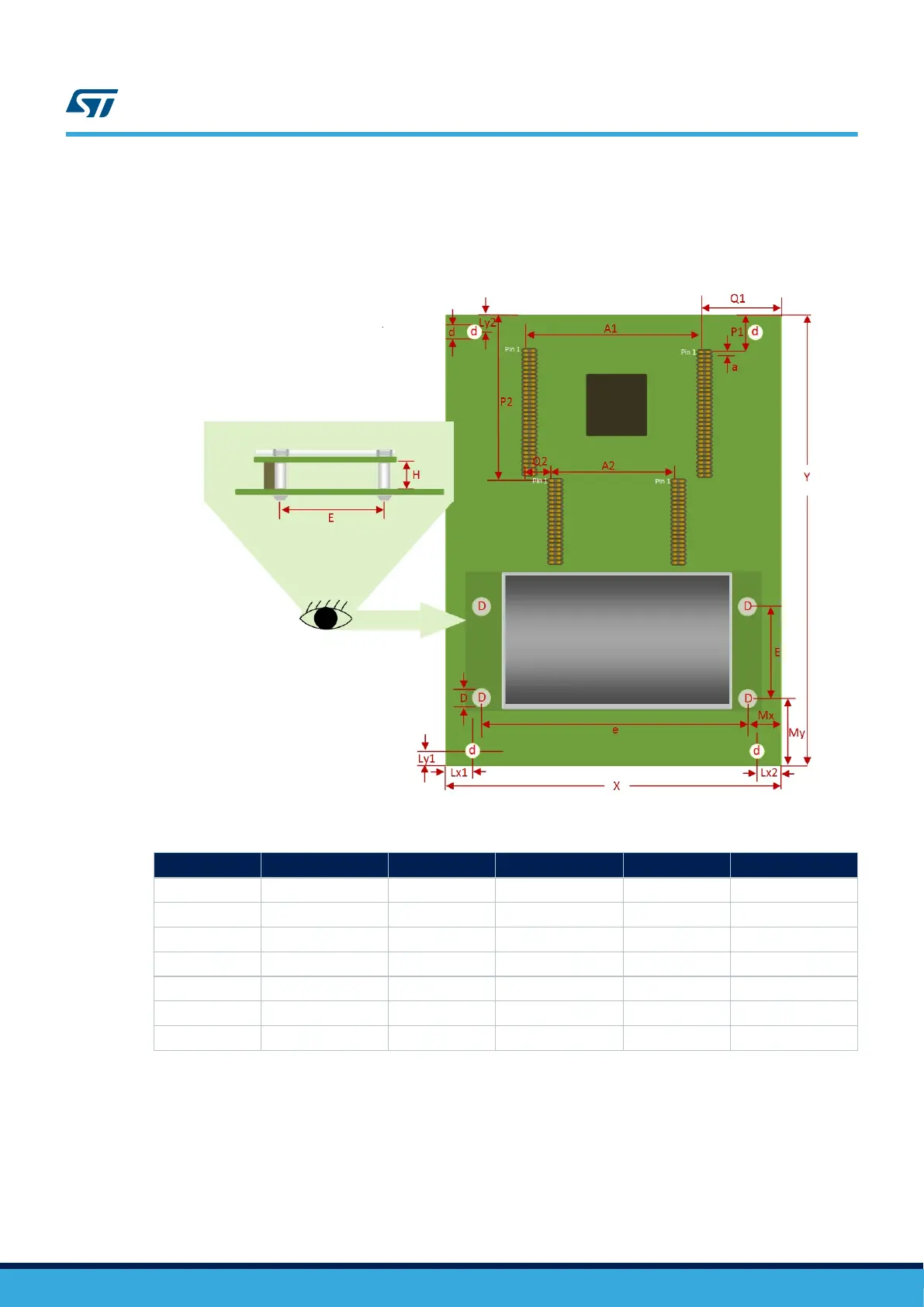

Figure 4. STM32H7x7I-EVAL Evaluation board mechanical drawing
Table 4. Mechanical dimensions
Symbol
Size(mm) Symbol Size(mm) Symbol Size(mm)
A1 68.58 H 8 P1 16.76
A2 48.62 Lx1 13.7 P2 55.32
a 1.27 Lx2 25 Q1 39.23
D 4.5 Ly1 5 Q2 9.98
d 3.5 Ly2 6.4 X 141.60
E 37.7 Mx 12.5 Y 172.72
e 116.5 My 32.7
UM2525
Ordering information
UM2525 - Rev 3
page 9/69
