8.3 CN5 STMod+ connector
The CN5 STMod+ standard connector is on the STM32WB5MM-DK board to support flexibility in small form factor
application.
Figure 15 shows the pinout of the STMod+ connector.
Caution: Check the orientation before plugging the fan-out or extension board. An error of orientation can generate
important damage on the STM32WB5MM-DK and the plugged board.

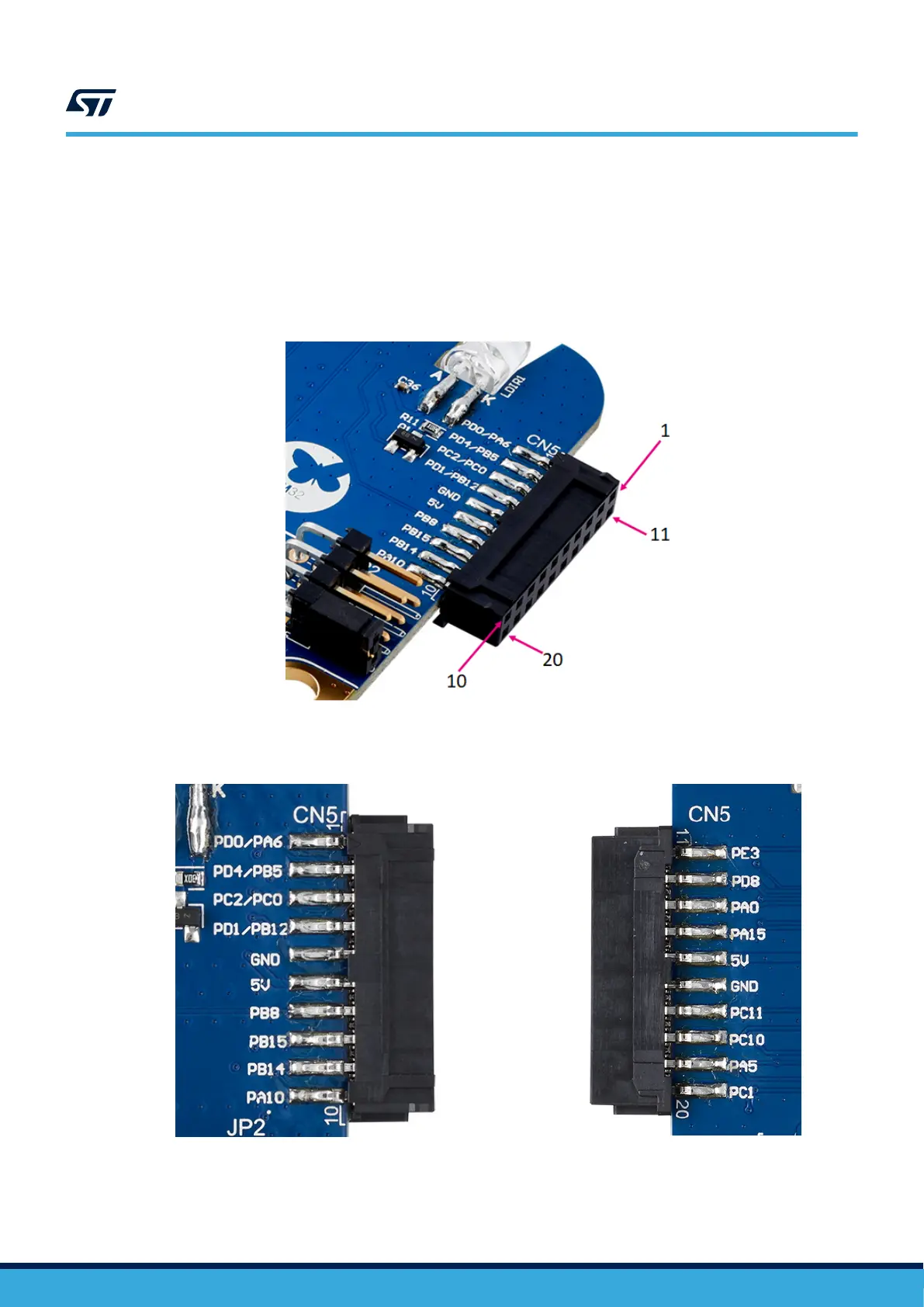

Figure 15. CN5 STMod+ connector
Figure 16. Top silkscreen STMod+ connector
Figure 17. Bottom silkscreen STMod+ connector
UM2825
CN5 STMod+ connector
UM2825 - Rev 1
page 24/42
