To benefit from this connection, it is necessary to use the TC2050-IDC-NL accessory cable shown in Figure 19.

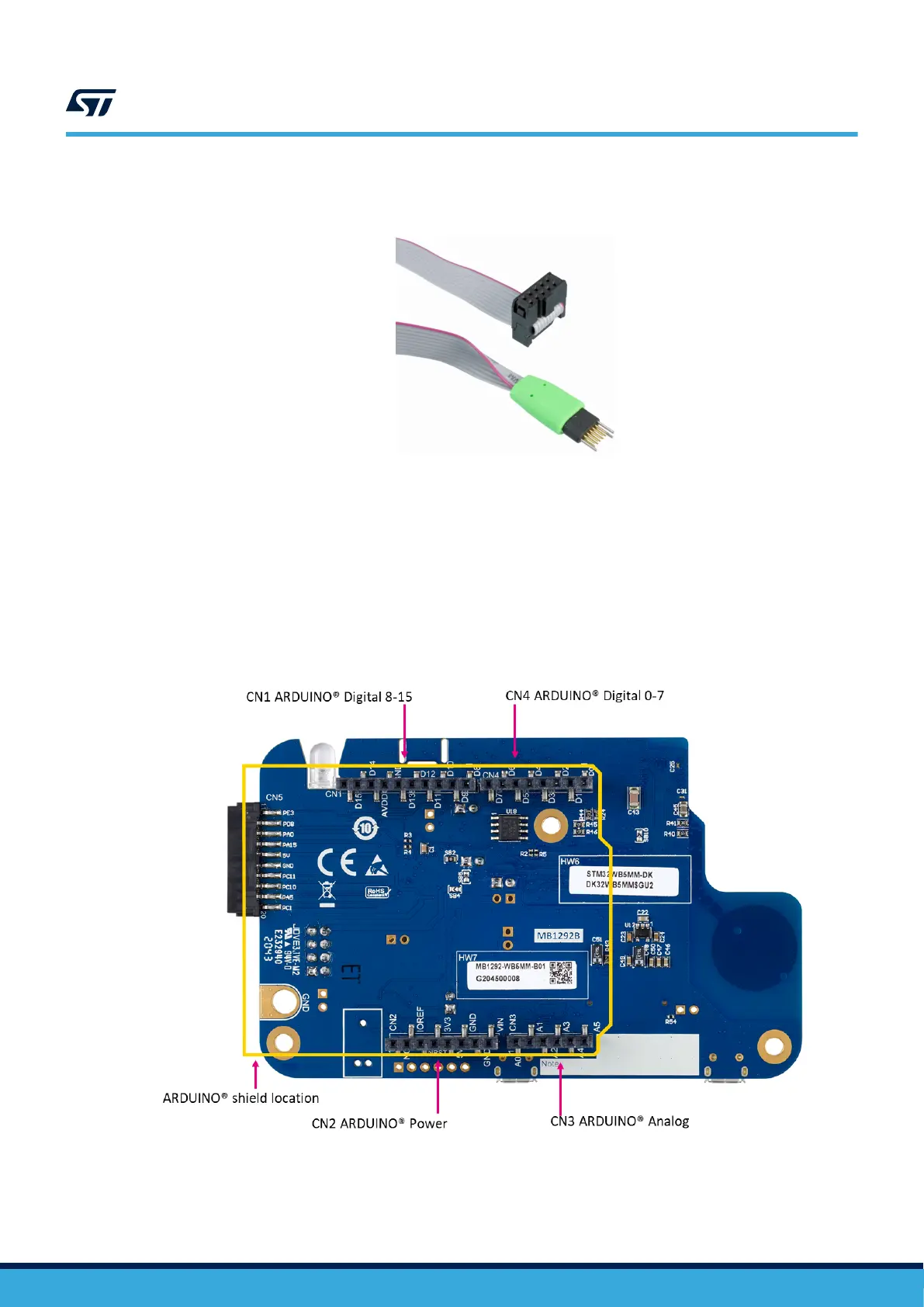

Figure 19. TC2050-IDC-NL cable
8.5
CN1, CN2, CN3, and CN4 ARDUINO
®
Uno V3 connectors
8.5.1 Description
ARDUINO
®
Uno V3 extension socket is located on the bottom side of the board. It is built around CN1, CN2, CN3
and CN4 standard connectors. Most shields designed for ARDUINO
®
can fit with Discovery kits to offer flexibility
in small form factor applications.
Figure 20. ARDUINO
®
Uno connectors and ARDUINO
®
shield location
UM2825
CN1, CN2, CN3, and CN4 ARDUINO® Uno V3 connectors
UM2825 - Rev 1
page 27/42
