Setting up the development environment AN2752
34/40 AN2752 Rev 6
10.3.3 Connecting the hardware
The Rlink tool can be connected to the PC by a standard USB connection. It is also powered
by the USB interface.
On the controller side the connection to the STM8 evaluation board is made by the SWIM
interface cable. As shown in
Figure 23, the board is powered by an external 5 V supply.

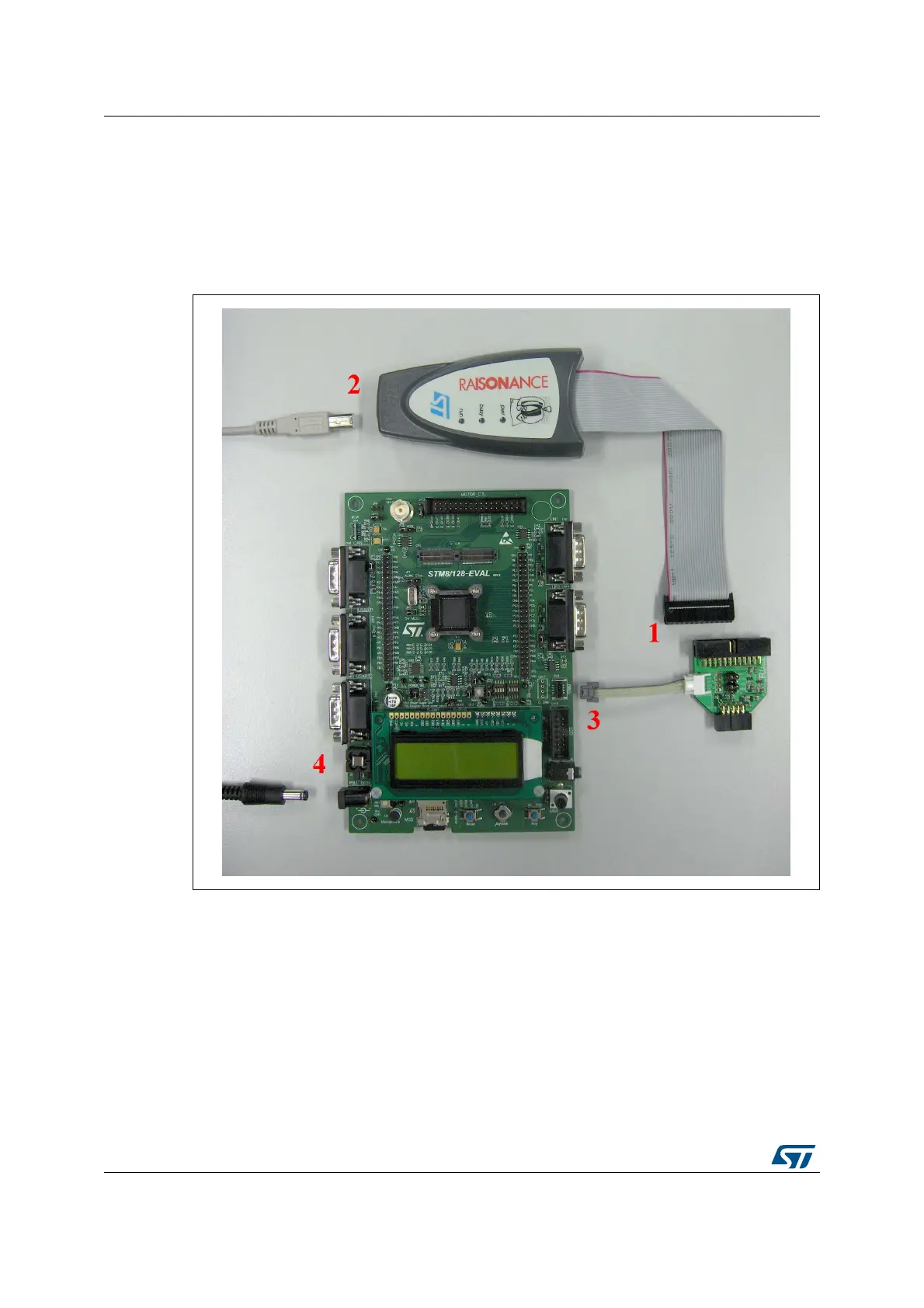

Figure 23. Connecting the debug instrument to the STM8 evaluation board
Caution: On the Rlink ICC/SWIM adapter board, the “SWIM” jumper must be set.
If there is no pull-up on the application SWIM line, the “ADAPT” jumper is also set.
In any case, “PW-5V” and “12MHz” jumpers must not be set.
Rlink adapter
for STM8
SWIM interface connection
5 V power supply
Rlink USB connection
