ST STM8S User Manual

Advanced evaluation using a debugging environment UM0671
16/23 Doc ID 15330 Rev 4

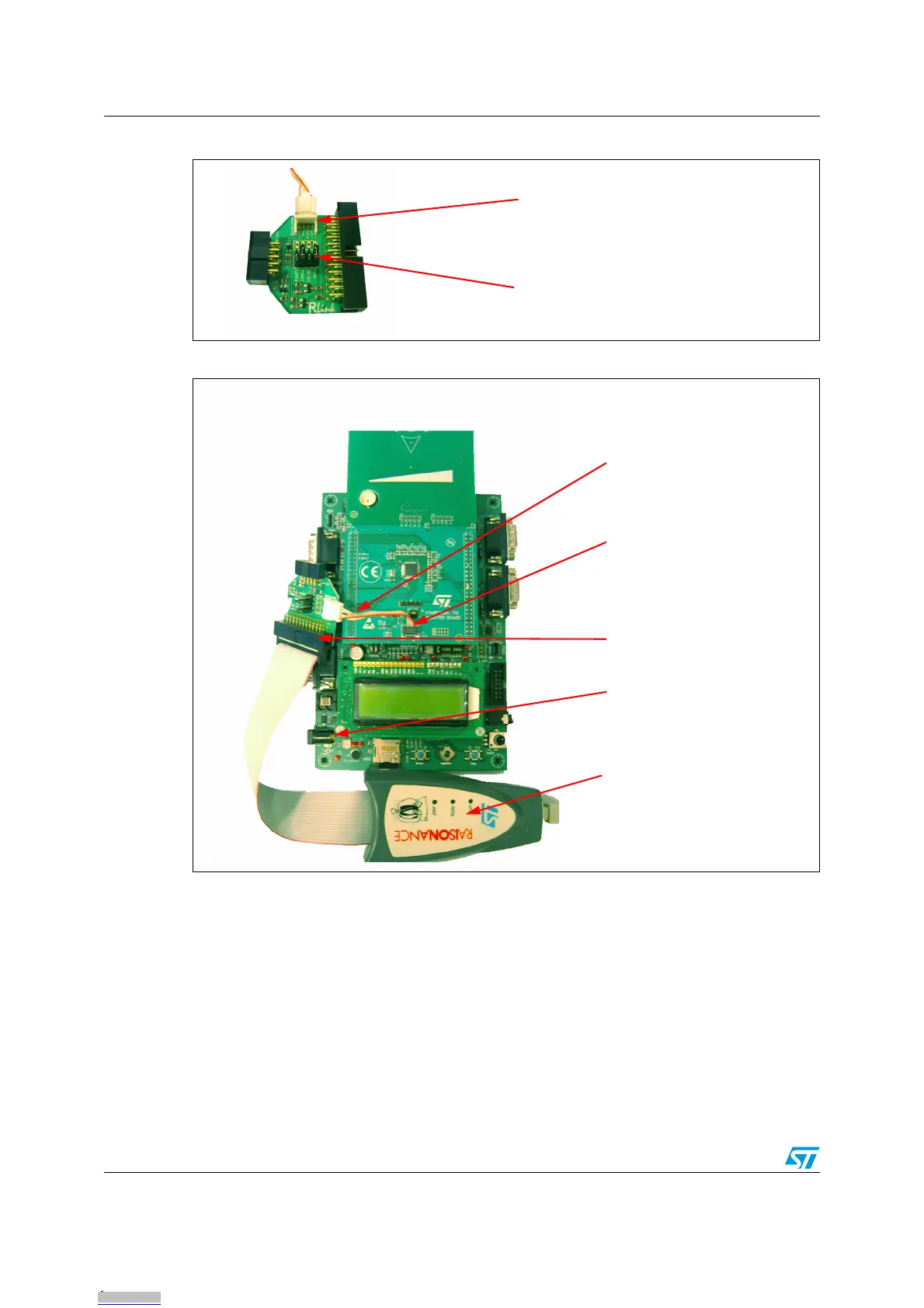

Figure 8. RLink configuration jumpers
Figure 9. RLink USB and SWIM configuration
6. Download the STM8 touch sensing library from www.st.com/touch-sense-sw-lib
7. Launch the ST Visual Develop (STVD) integrated development environment.
8. Load the STM8 TS evaluation firmware (Figure 10):
– In the “File” menu, click “Open workspace” and select/open the file
STM8S20xK_TS1_EVAL_FW.stw.
(Default path file @ \STM8S20xK_TS1_EVAL_FW\Project\STVD\Cosmic)
SWIM connector
Configuration jumper location
SWIM cable
SWIM/STM8 adaptor
Daughterboard
SWIM connector
Power supply
RLink USB adaptor
