Porting X-CUBE-SBSFU onto another board AN5056
12/49 AN5056 Rev 8

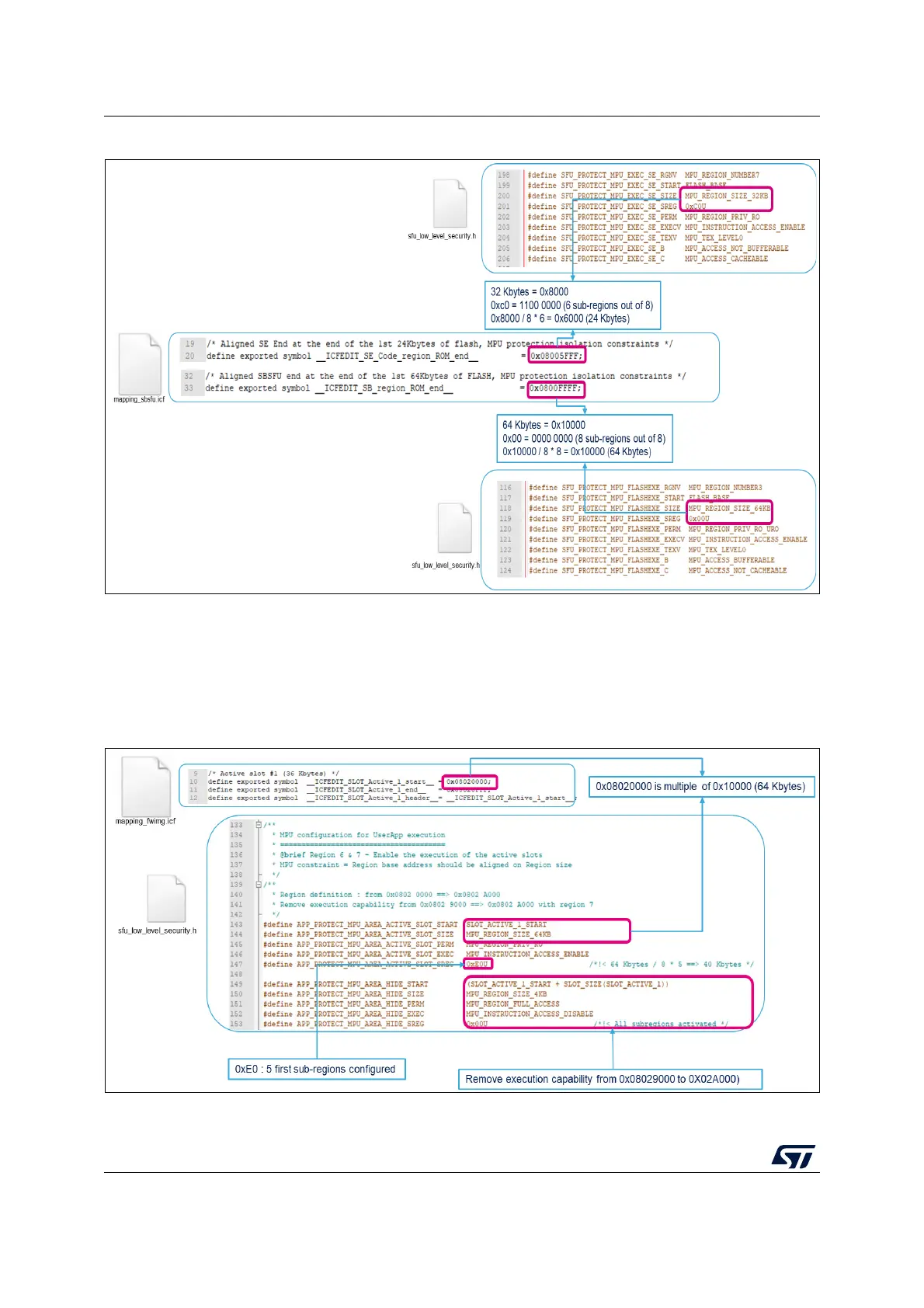

Figure 4. Mapping constraints with MPU isolation (NUCLEO-G071RB example)
Another typical use case is the MPU configuration of the active-slot region to authorize user
application execution.
Figure 5 shows how to respect the MPU constraints on NUCLEO-
L073RZ.
Figure 5. Mapping constraints for user application execution
