Generating a cryptographic key AN5056
30/49 AN5056 Rev 8

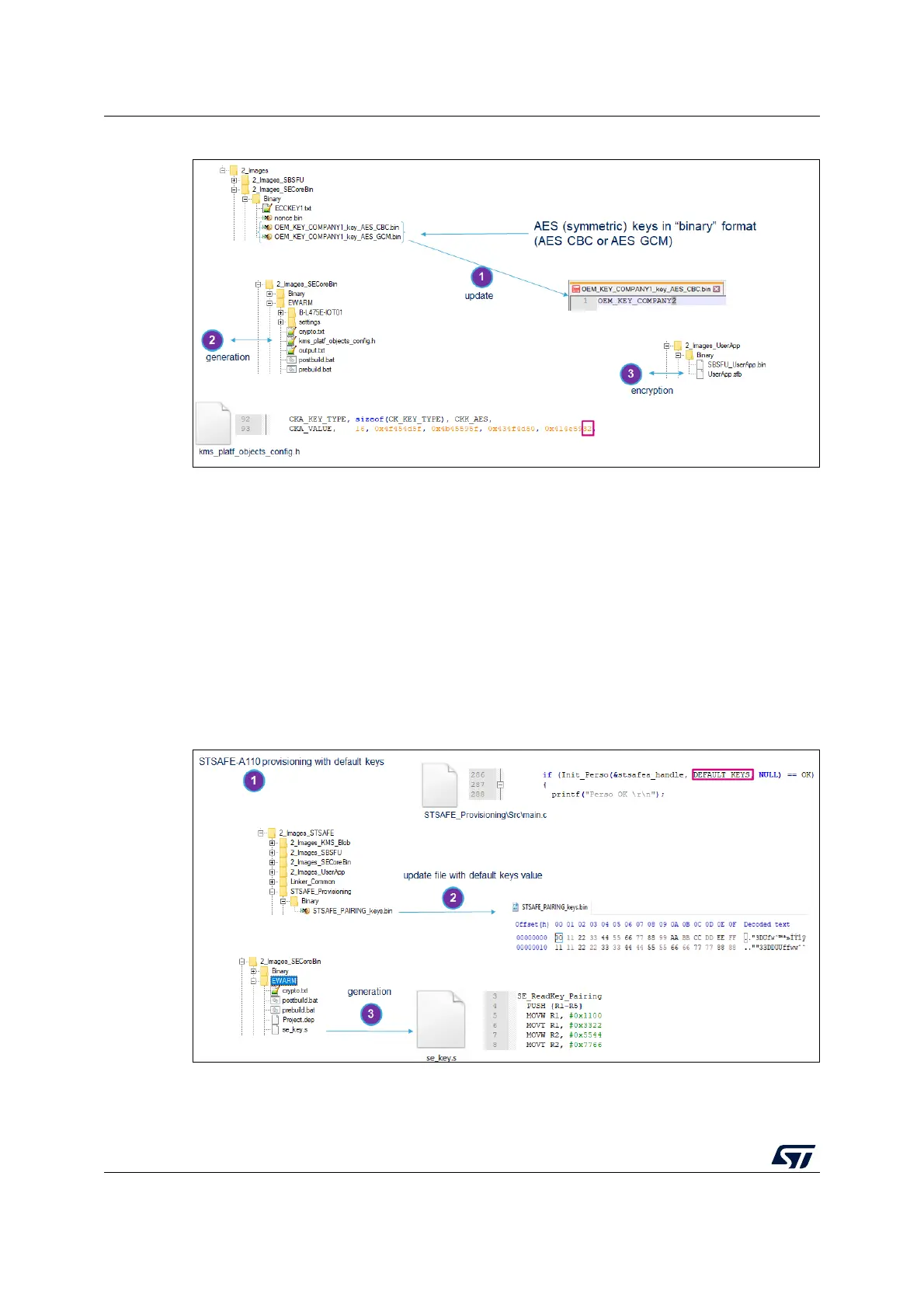

Figure 25. KMS specificities
5.5 STSAFE-A110 specificities
As explained in Appendix G of the UM2262, STM32 and STSAFE-A110 must be
provisioned with pairing keys and X509 certificates.
STSAFE-A110 provisioning process is described in STSAFE_Provisioning/readme.txt.
Figure 26 shows an example of pairing-key provisioning:
1. STSAFE-A110 provisioning with default pairing keys
2. Update STSAFE_PAIRING_keys.bin accordingly
3. Compile SECoreBin: prebuild.bat is executed and se_key.s is generated.
Figure 26. STSAFE-A110 pairing keys
