8.2 Use of Flash memory to store user data
The storage of user data in Flash pages or sectors is possible with some restrictions:
• Out of the SBSFU code area
• Not in the images slots
• Not in the swap area

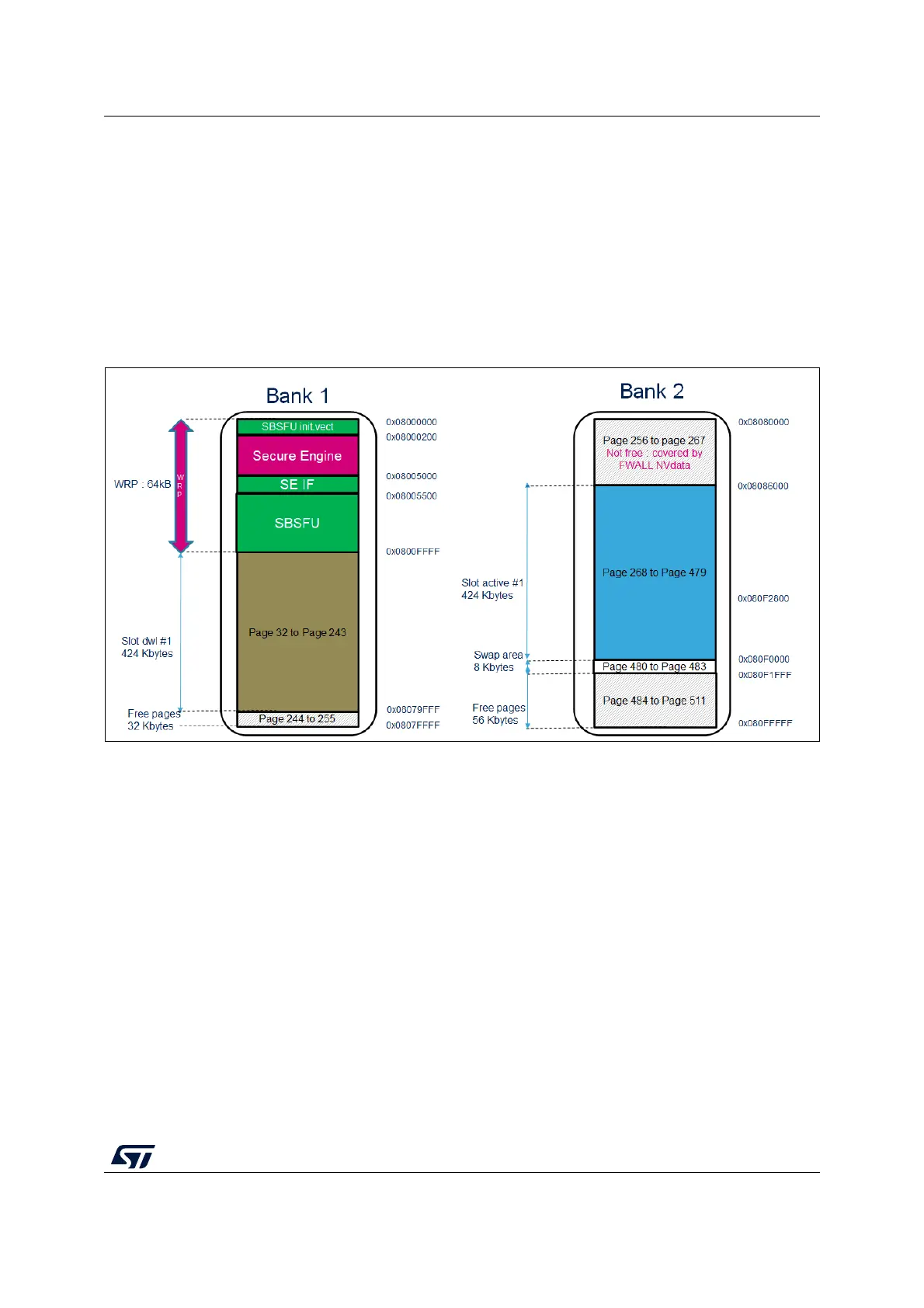

Figure 38 provides a memory-mapping example based on the NUCLEO-L476RG where the
Flash memory is available from page 489 to page 511 for the user to store data, install a file
system, or emulate an EEPROM.
Figure 38. Free Flash pages (NUCLEO-L476RG example)
