AN5056 Rev 8 37/49
AN5056 Adapting SBSFU
48

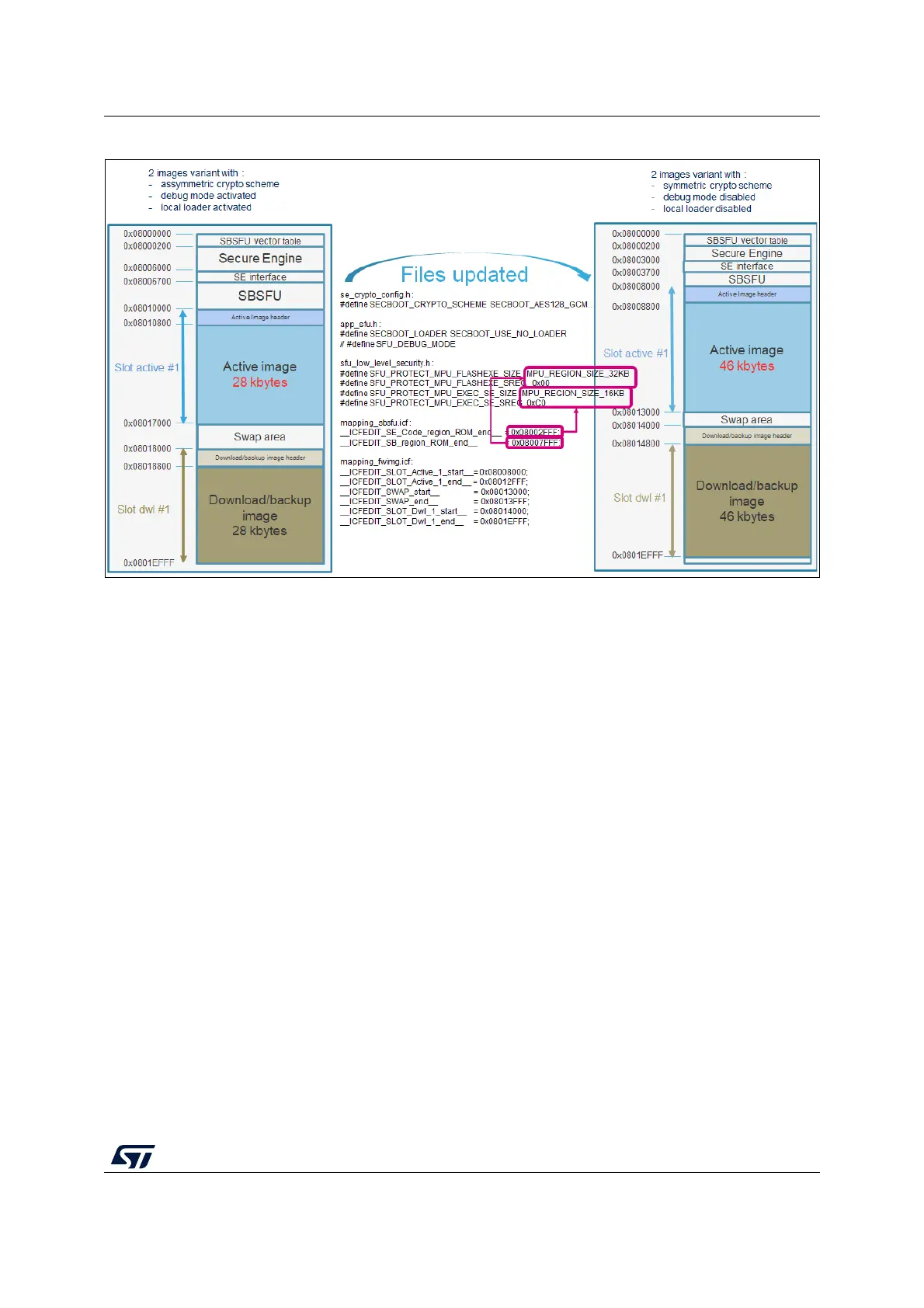

Figure 32. Example of memory mapping optimization on NUCLEO-G071RB – 2 images
In the folder NUCLEO-G031K8\Applications\1_Image, another example of memory
optimization is provided for the NUCLEO-G031K8, where 32
Kbytes are allocated to the
user application among the 64 Kbytes available on this board.
